DiGiCo Waves Operation
1-12
Example 2: Setting Rack as Parallel FX
a. FX Send

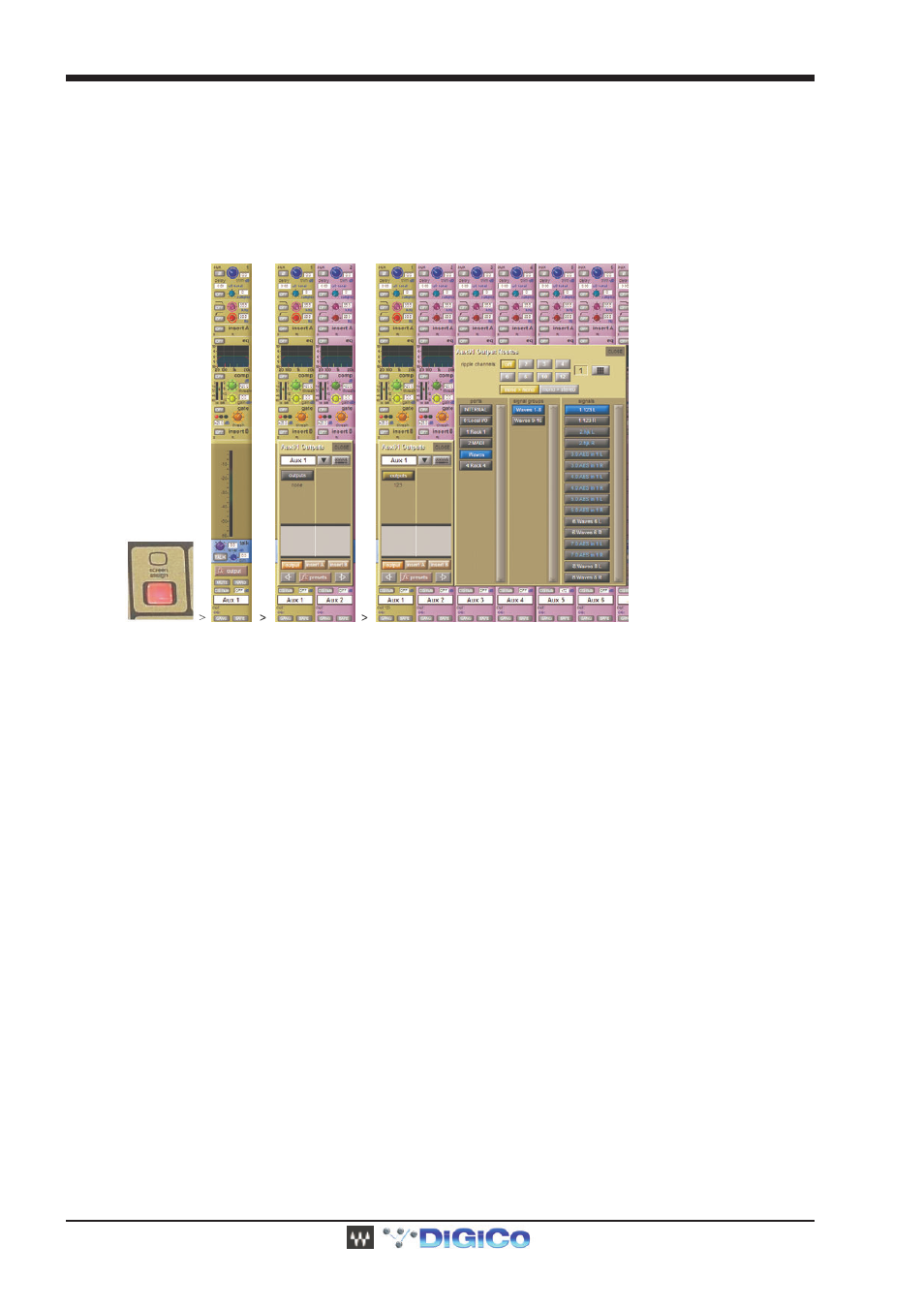

- Open Master channel view by pressing the Screen Assign on the console’s centre section.
- Select the desired Master channel. In the below example we will set Mono Aux 1.
- Touch Outputs to open the routing panel.
Set Routing
- In the Ports column, choose Waves.
- Choose the desired Signal Group.
- Under Signals, choose the desired Waves I/O.
b. FX Return
