Before using
12
VQT1A34

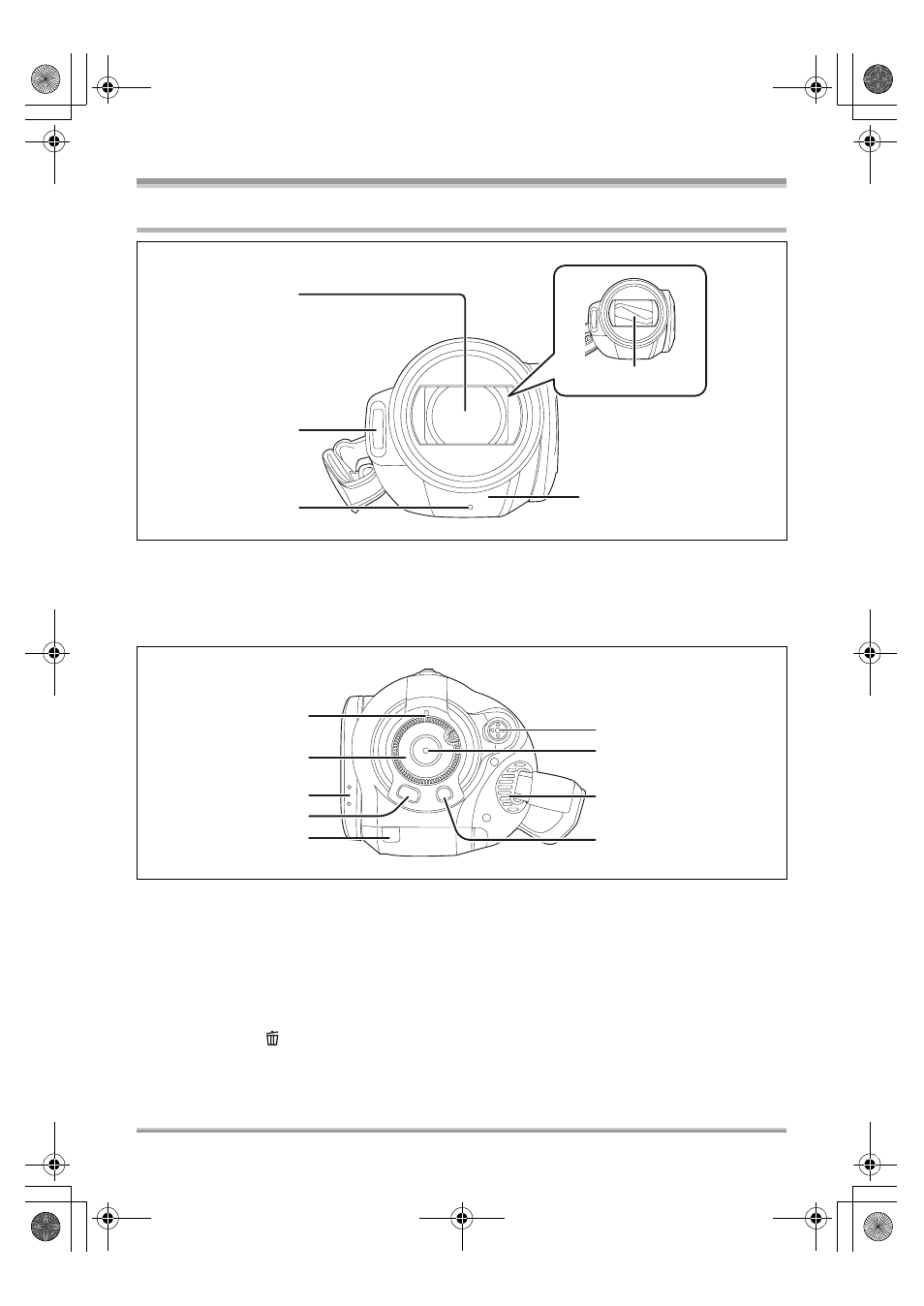

Parts identification and handling
1) Lens (LEICA DICOMAR)
2) Built-in flash (l 53)
3) Recording lamp (l 102)
4) White balance sensor/remote control sensor (l 19, 61)
5) Lens cover
6) Status indicator (l 26)
7) Mode dial (l 26)
8) LCD monitor open part (l 18)
9) Menu button [MENU] (l 33)
10) Battery cable cover (l 15)
11) Cursor button (l 29)
12) Recording start/stop button (l 40)
13) Cooling fan (inlet)
14) Delete button [
] (l 69, 71)
ª About the cooling fan
≥The cooling fan rotates to prevent the internal temperature rising. Take care not to cover the inlet and
outlet when using this unit.
1
2
3
4
5
11
13
14
12
6
7
8
9
10
