49

AIMB-221 User Manual

Chapter 2

C

onnecting

Peripherals

2.25

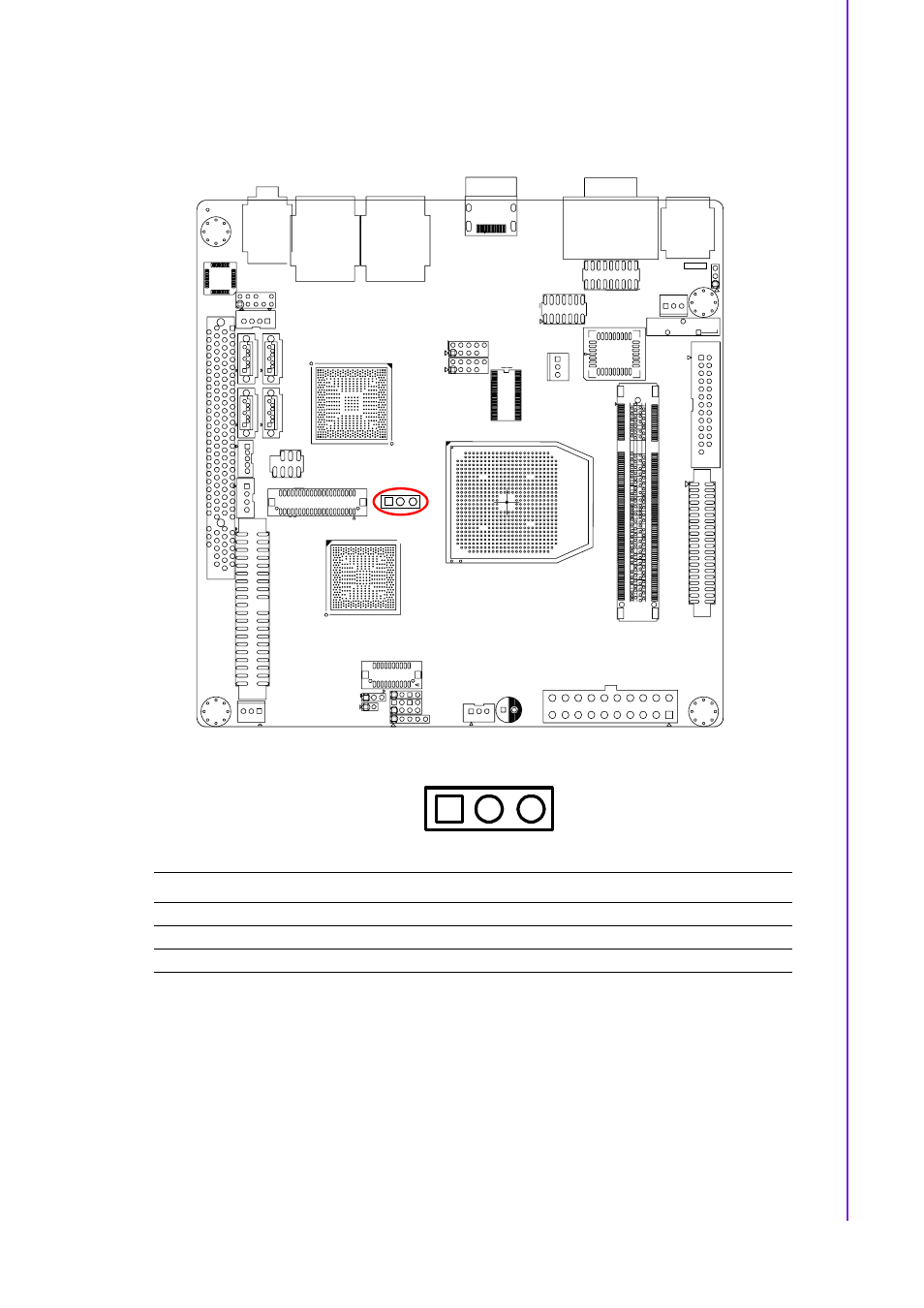

LVDS POWER JUMPER (JLVDS1)

JLVDS1 is the jumper for either 3.3 V or 5 V output when connect to LCD panel.

JLVDS1

pin.1

VCC3

pin.2

LVDS_VCC

pin.3

VCC

1

2

3
