AIMB-221 User Manual
48

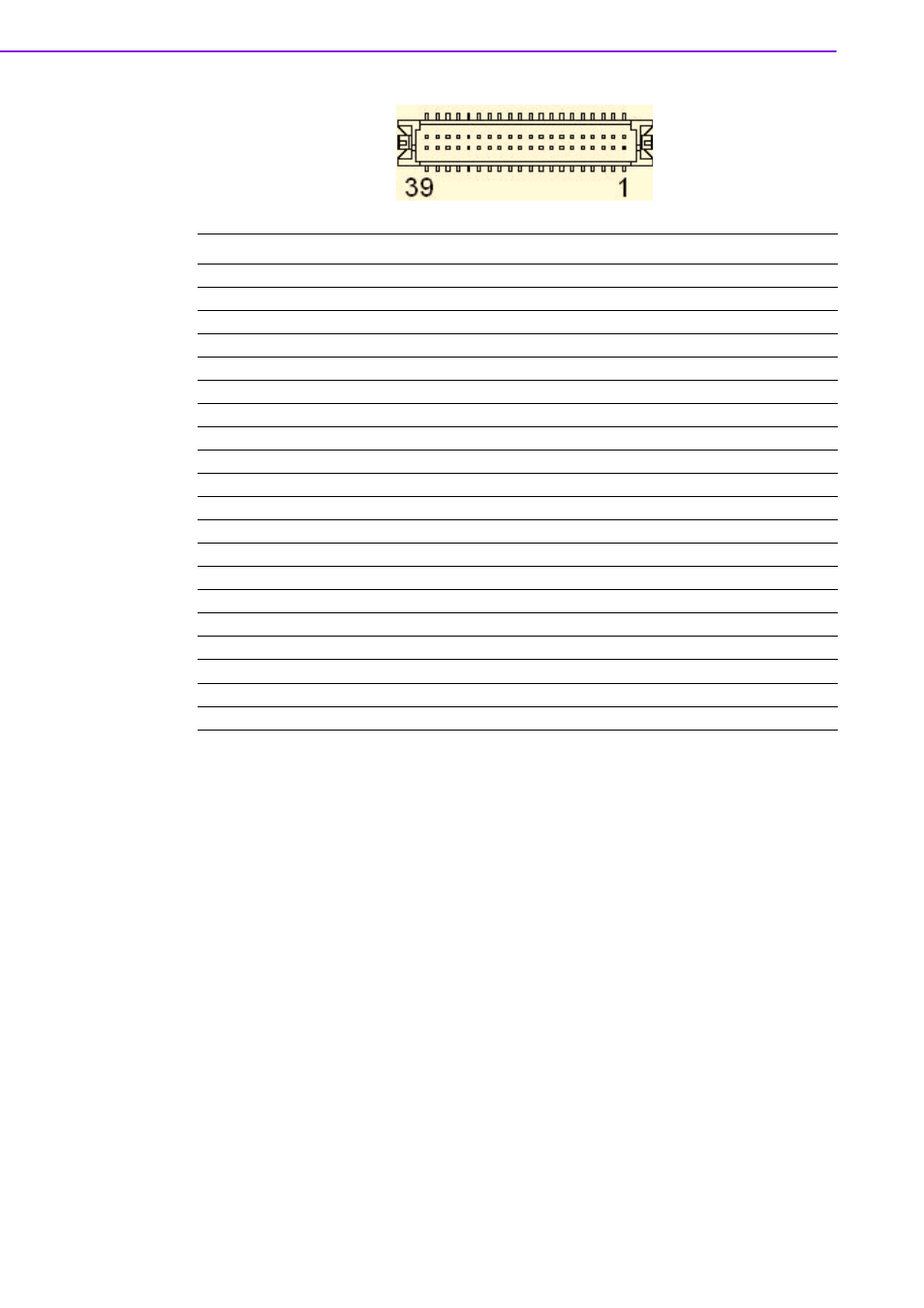

LVDS1
pin.1
LVDS_VCC
pin.2
LVDS_VCC
pin.3
GND
pin.4
GND
pin.5
LVDS_VCC
pin.6
LVDS_VCC
pin.7
LVDS_L0N
pin.8
UVDS_U0N
pin.9
LVDS_L0P
pin.10
UVDS_U0P
pin.11
GND
pin.12
GND
pin.13
LVDS_L1N
pin.14
UVDS_U1N
pin.15
LVDS_L1P
pin.16
UVDS_U1P
pin.17
GND
pin.18
GND
pin.19
LVDS_L2N
pin.20
UVDS_U2N
pin.21
LVDS_L2P
pin.22
UVDS_U2P
pin.23
GND
pin.24
GND
pin.25
LVDS_LCLKN
pin.26
LVDS_UCLKN
pin.27
LVDS_LCLKP
pin.28
LVDS_UCLKP
pin.29
GND
pin.30
GND
pin.31
DDC_CLK
pin.32
DDC_DAT
pin.33
GND
pin.34
GND
pin.35
LVDS_L3N
pin.36
LVDS_U3N
pin.37
LVDS_L3P
pin.38
LVDS_U3P
pin.39
LVDS_BLEN1
pin.40
NC
