AIMB-221 User Manual
Chapter 2
C
onnecting
Peripherals

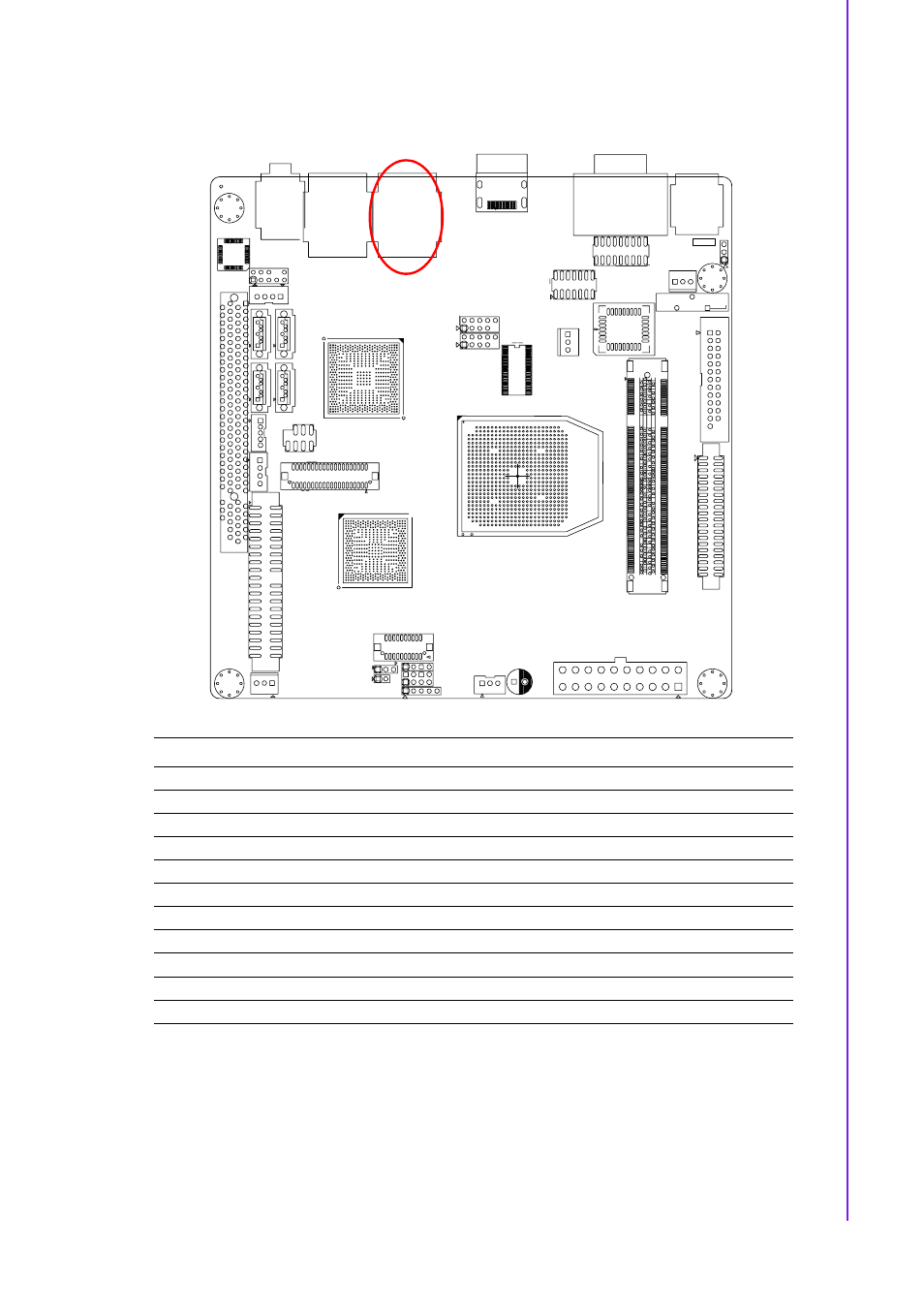

2.14
LAN1_USB12
LAN1_USB12
pin.1
NC
pin.2
LAN2_MDIP0
pin.3
LAN2_MDIN0
pin.4
LAN2_MDIP2
pin.5
LAN2_MDIN2
pin.6
LAN2_MDIP2
pin.7
LAN2_MDIN2
pin.8
LAN2_MDIP3
pin.9
LAN2_MDIN3
pin.10
GND
pin.11 LAN2_ACTLED-
pin.12
LAN2_ACTLED+
pin.13 LAN2_LINKLED-
pin.14 LAN2_LINKLED+
pin.15
VCC
pin.16
USB_N2
pin.17
USB_P2
pin.18
GND
pin.19
VCC
pin.20
USB_N3
pin.21
USB_P3
pin.22
GND
