AIMB-221 User Manual

24

2.5

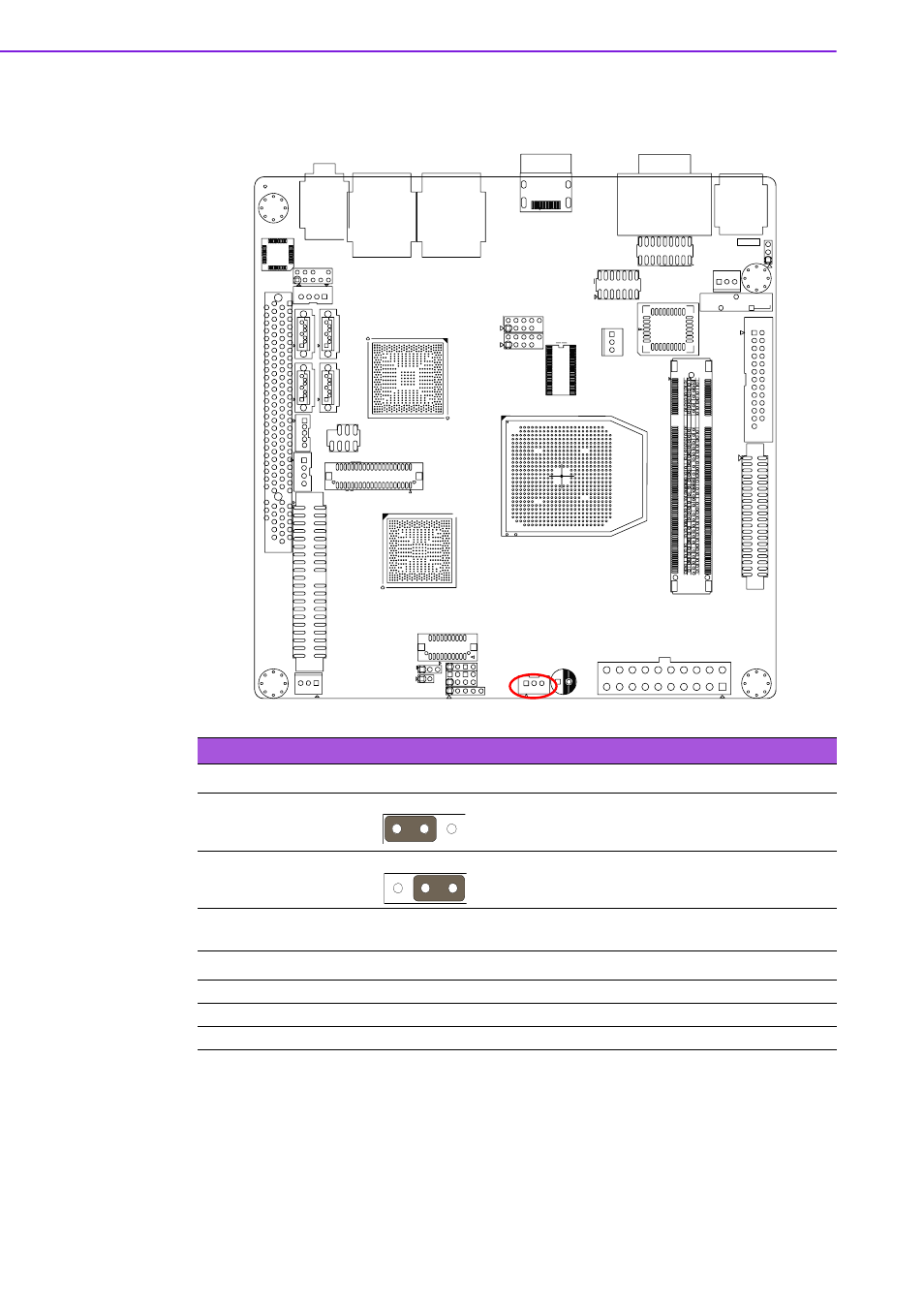

ATX/AT Mode Selector (JPSON1)

Table 2.2: ATX/AT Mode selector (PSON1)

Function

Jumper Setting

AT Mode

ATX Mode

JPSON1

pin.1

ATX mode

pin.2

PS_SELECT

pin.3

AT mode

1

1-2 closed

1

2-3 closed
