15 lan2_usb34, Lan2_usb34 – Advantech Industrial Mini-ITX Motherboard with DDR2/Dual GbE/PCI AIMB-221 User Manual
Page 46
AIMB-221 User Manual
36

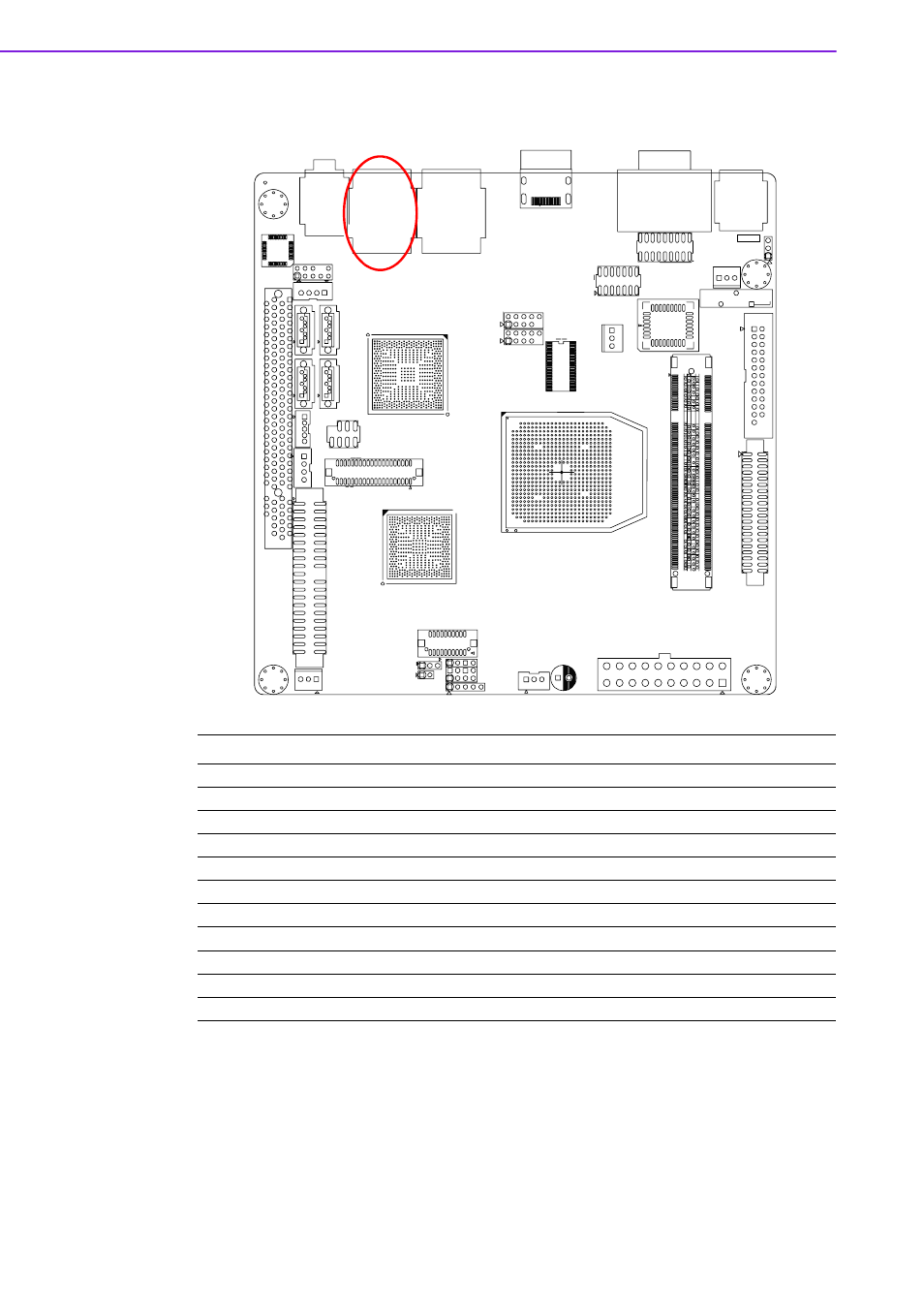

2.15
LAN2_USB34
LAN2_USB34
pin.1
NC
pin.2
LAN1_MDIP0
pin.3
LAN1_MDIN0
pin.4
LAN1_MDIP1
pin.5
LAN1_MDIN1
pin.6
LAN1_MDIP2
pin.7
LAN1_MDIN2
pin.8
LAN1_MDIP3
pin.9
LAN1_MDIN3
pin.10
GND
pin.11 LAN1_ACTLED-
pin.12 LAN1_ACTLED+
pin.13 LAN1_LINKLED-
pin.14 LAN1_LINKLED+
pin.15
VCC
pin.16
USB_N1
pin.17
USB_P1
pin.18
GND
pin.19
VCC
pin.20
USB_N0
pin.21 USB_P0
pin.22 GND
