AIMB-221 User Manual
Chapter 2
C
onnecting
Peripherals
2.8

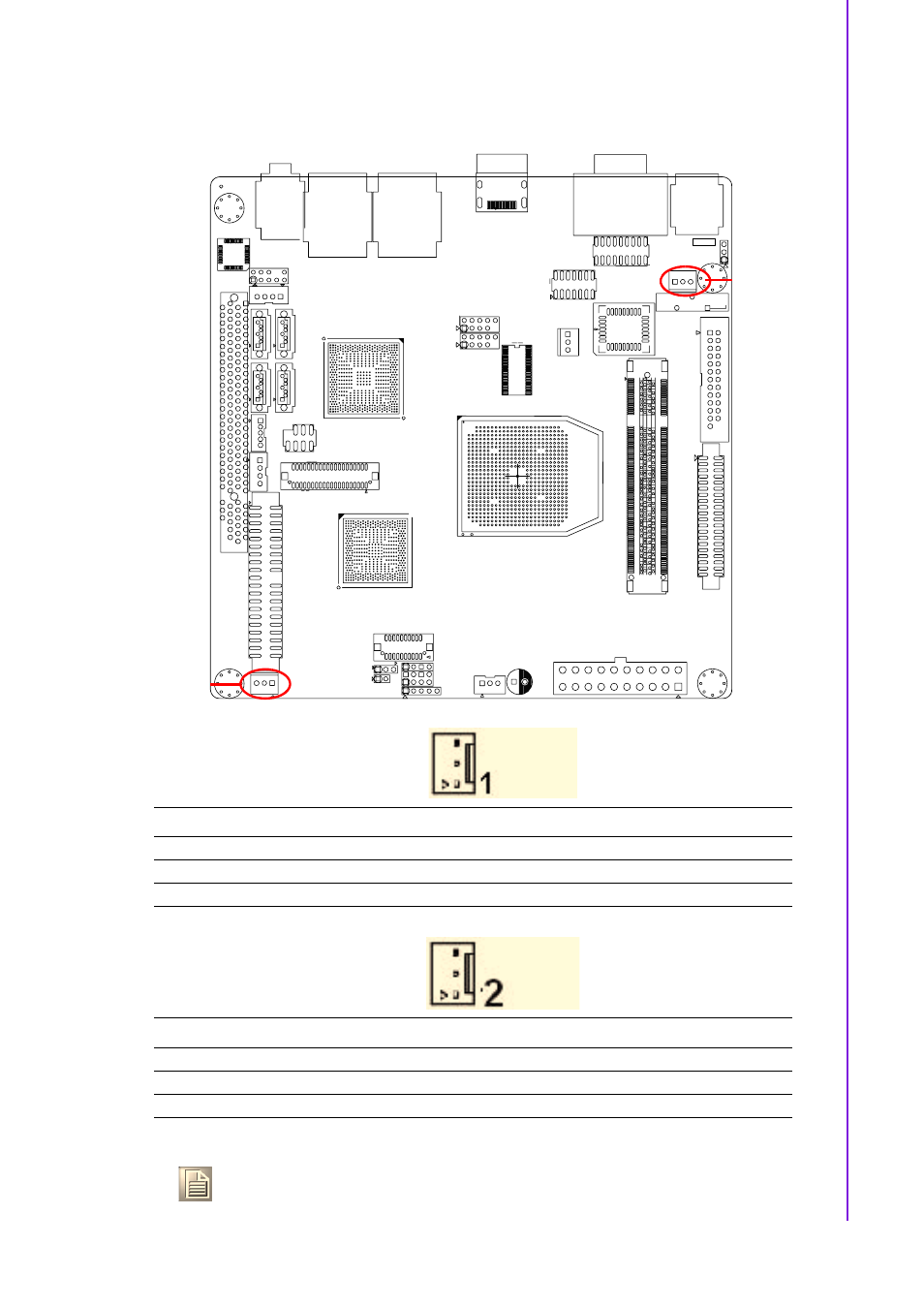

System Fan (SYSFAN1, SYSFAN2)
SYSFAN1
pin.1
GND
pin.2
VCC12
pin.3
SPEED
SYSFAN2
pin.1
GND
pin.2
VCC12
pin.3
NC
Note!
Super IO W83627UHG support 2 sets of Fan Monitoring only. When all
the CPU fan, Sysfan 1, and Sysfan 2 are plugged, there will only show
CPU fan and Sysfan 1 in the BIOS.
SYSFAN1
SYSFAN2
