Assembly, Assembl y – Alamo 803213C User Manual
Page 65
ASSEMBLY
INTERSTATER 02/11
Assembly Section 3-25
© 2011 Alamo Group Inc.
ASSEMBL
Y

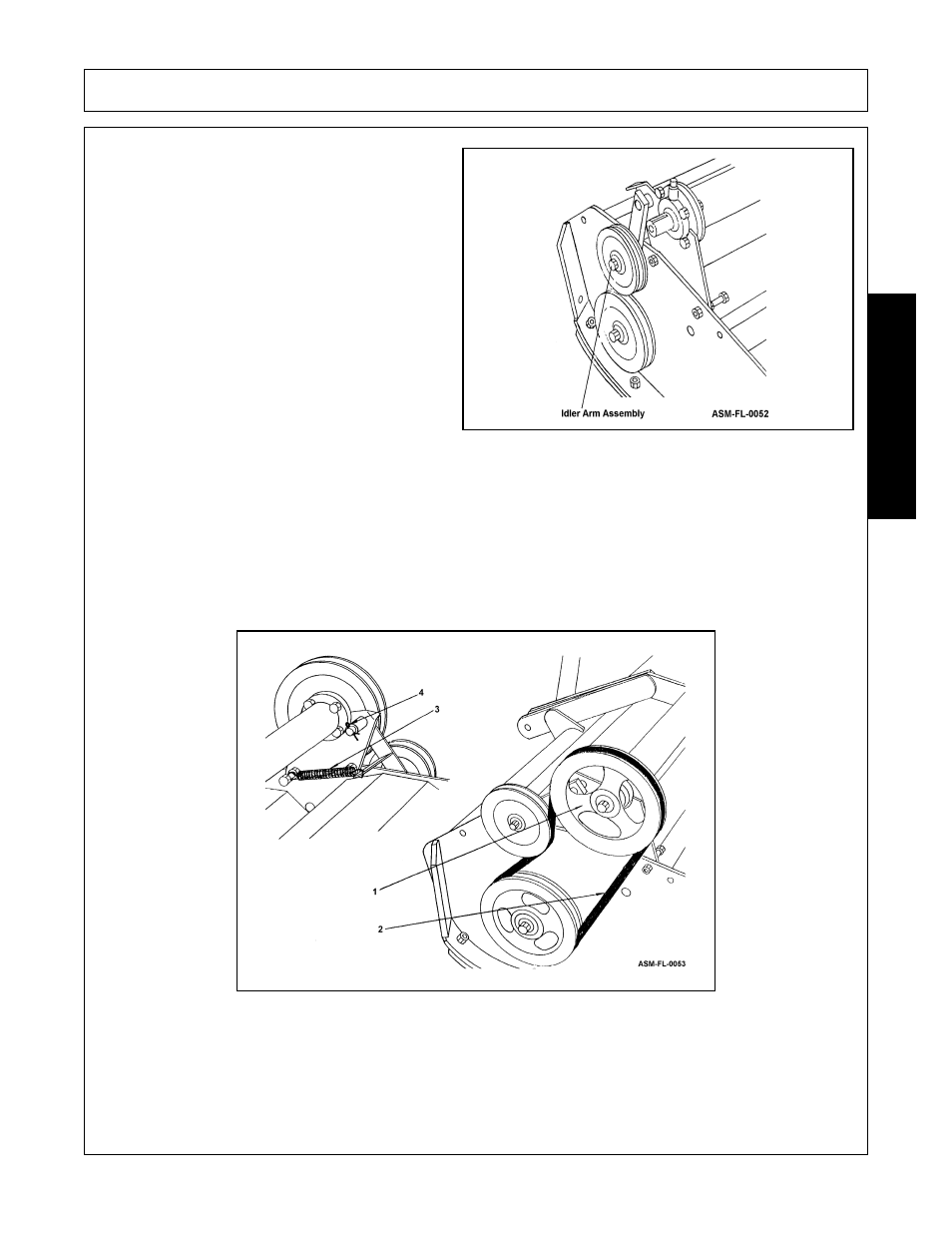

Install idler arm assembly to bearing plate. Do not
secure at this time. ASM-FL-0052
3. Remove fasteners and shaft protector from end of drive shaft and retain. Lightly grease shaft. Install key
and driveshaft pulley. Do not secure at this time.
4. Align all three pulleys. Use spacers and shims provided to achieve alignment, then secure idler arm
assembly with cotter pin #4. Secure driveshaft pulley #1 with fasteners that were retained during previous
step.
5. Install drive belt #2.
6. Attach spring. One end is inserted in idler arm spring arm hole; the other end is attached to the long
outboard bearing plate capscrew.
