ASSEMBLY

INTERSTATER 02/11

Assembly Section 3-16

ASSEMBL

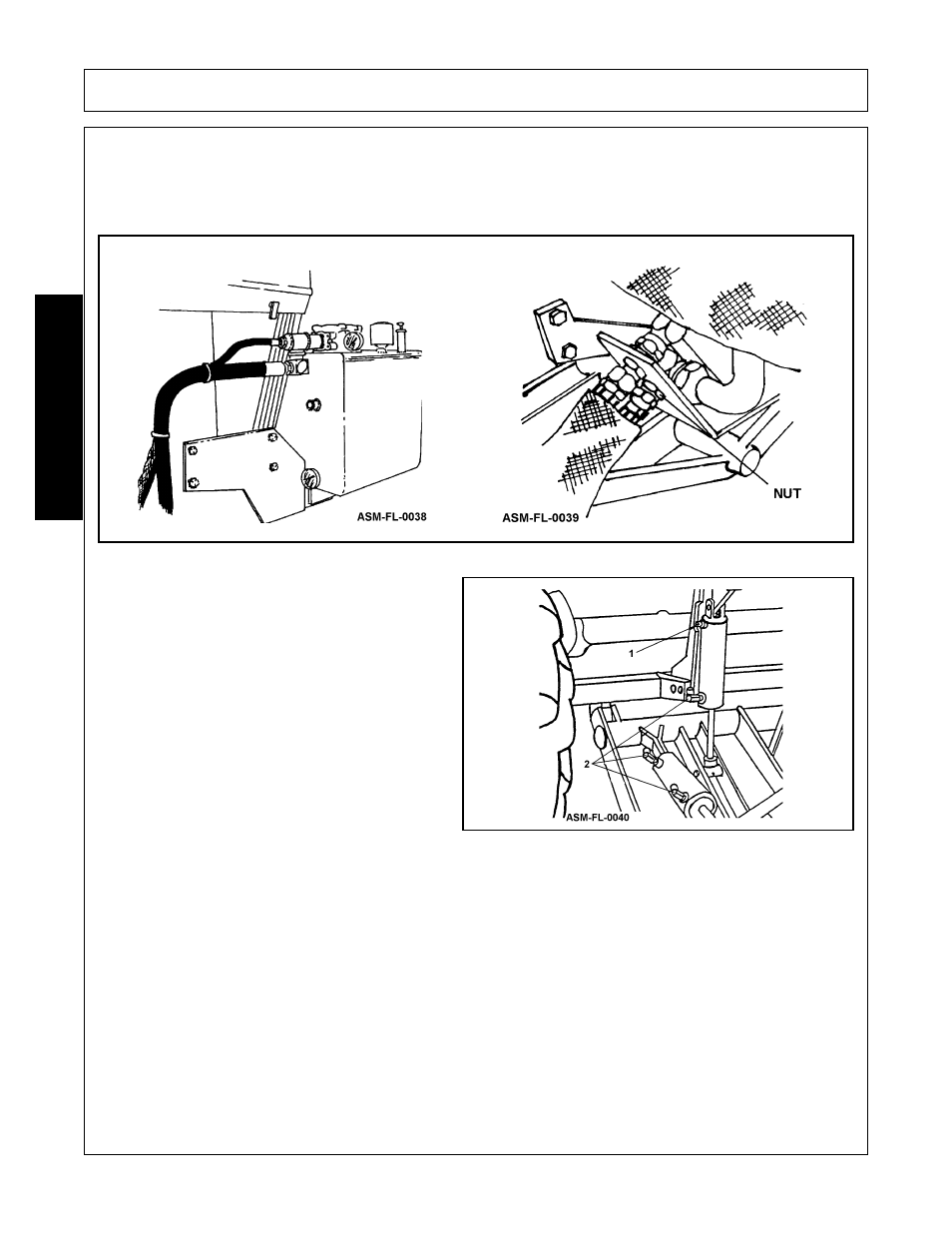

Attach the return hose to the return filter on the hydraulic tank. ASM-FL-0038 Attach the other end of the
return hose to the 3-way fitting on the hard plumbing. ASM-FL-0039

NOTE: the nut on the 3-way fitting must be loosened before the return hose can be attached. ASM-FL-0039

Install the vent plug P/N 000696 (Item 1) ASM-FL-
0040 plug into upper port of each lift cylinder
NOTE: On some model, lift cylinder ports must face
forward for proper hose clearance.
Install the 90 deg. elbow fittings P/N 02045200
(Item 2) ASM-FL-0040 into the remaining lift and tilt
cylinder ports
