ASSEMBLY

INTERSTATER 02/11

Assembly Section 3-23

ASSEMBL

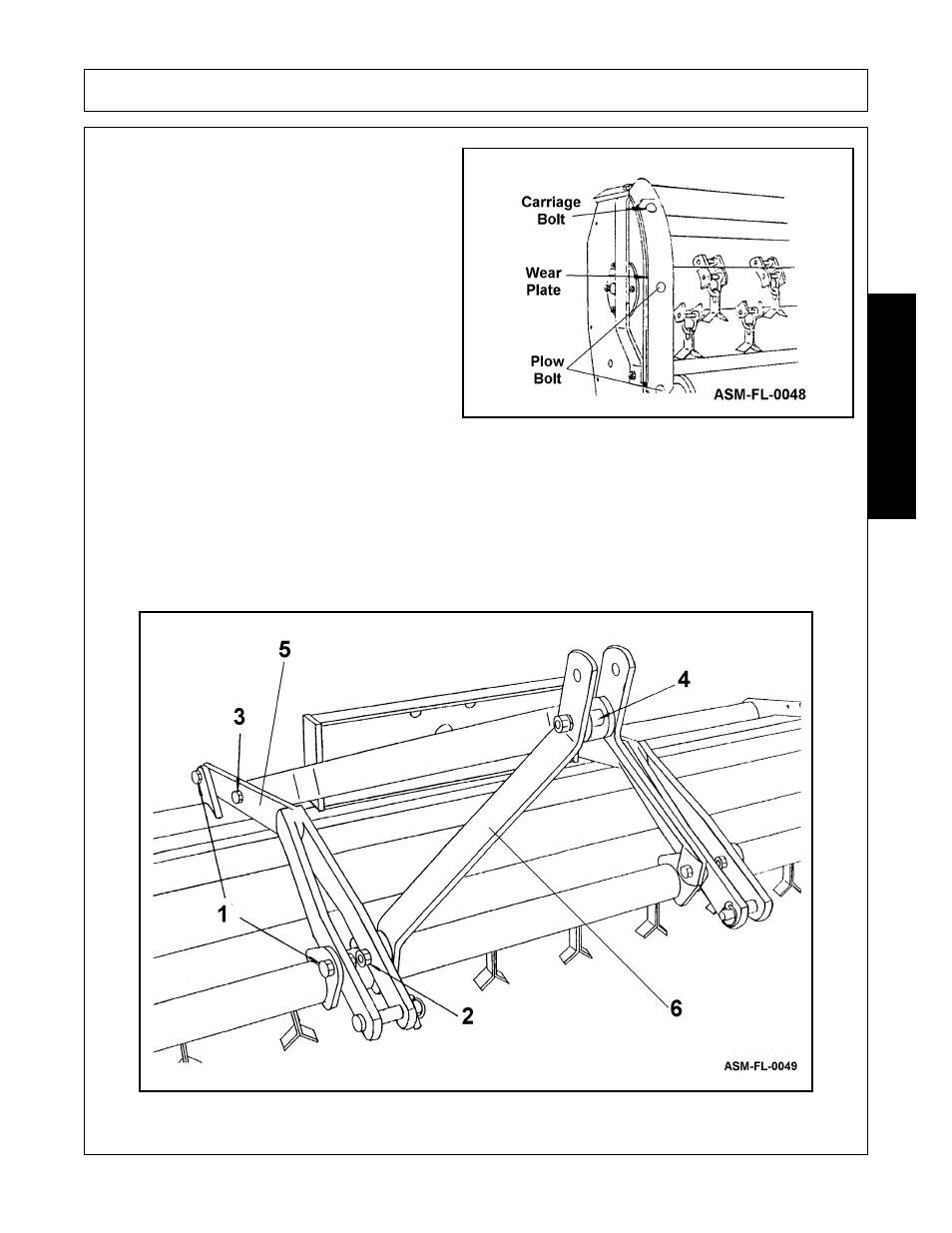

With the cutterhousing tipped up, attach housing
shoes/wearplate. Carriage bolt attaches to front
mounting hole; plow bolts attach to middle and rear
holes.

1. Attach overarms to cutterhousing. Secure each in 2 places with 5/8 NC x 1-3/4 Hex Head Capscrew(#1),

and nut.

2. Attach “A” frame arms to front of cutterhousing. Secure each, plus overarms in place with 5/8 NC x 2-1/2"

HHCS, and nut(#2).

3. Attach gearbox mounting frame to overarms and A- frame arms. ASM-FL-0049
a. Secure with 5/8 NC x 1-3/4 HHCS and nut (#3). Torque to 170 ft-lbs.
b. Secure with 3/4 NC x 3-3/4 HHCS, A- frame spacer and nut(#4). Torque to 300 ft-lbs.
