ASSEMBLY
INTERSTATER 02/11
Assembly Section 3-17
© 2011 Alamo Group Inc.
ASSEMBL
Y

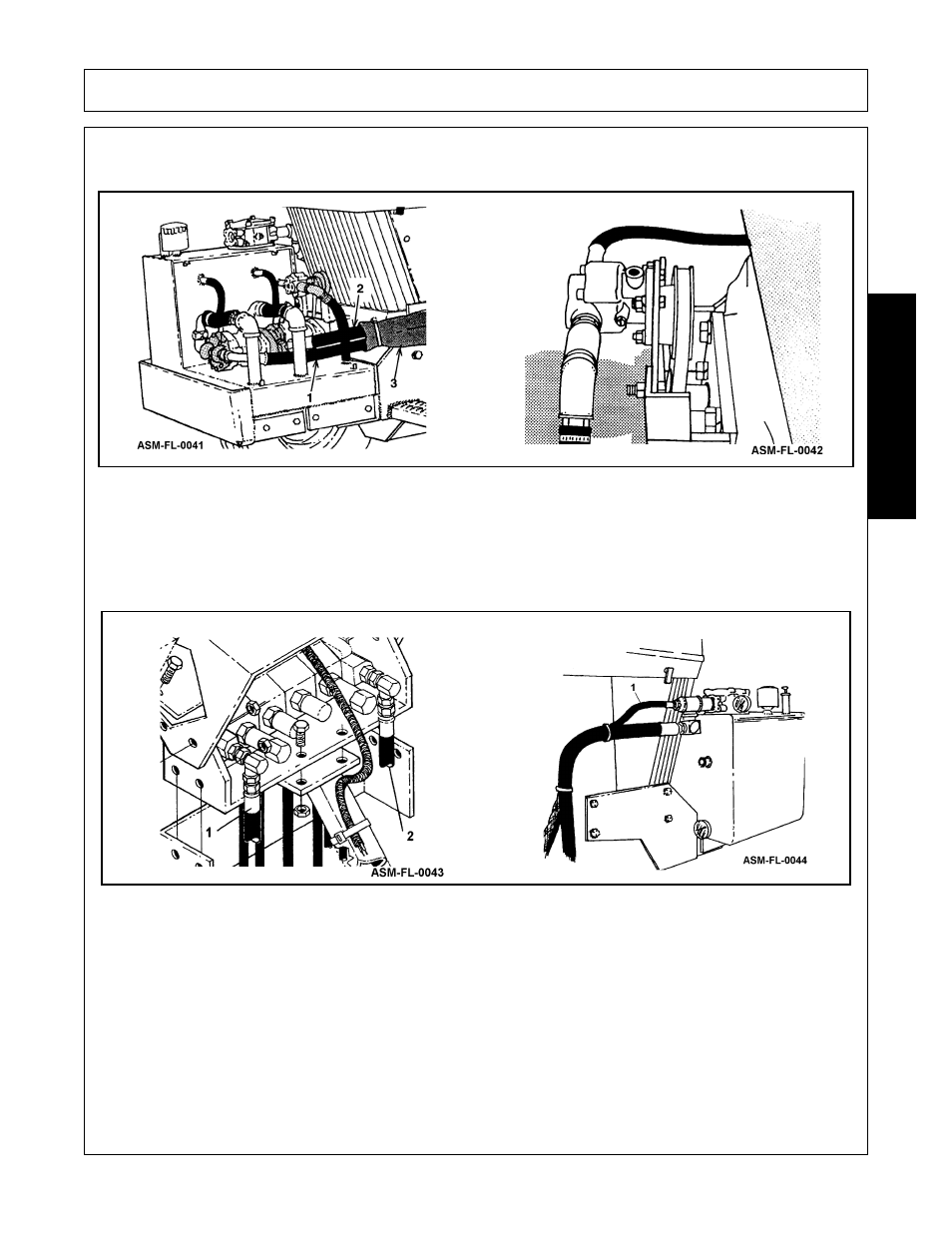

Attach suction hose (Item 1) ASM-FL-0041 from auxiliary pump to hydraulic tank.
Attach the pressure hose (Item 1) ASM-FL-0042 from the auxiliary pump to the control valve (Item 1) ASM-FL-
0042
Attach the return hose (Item 2) ASM-FL-0043 from the control valve to the return filter on the hydraulic tank
(Item 1) ASM-FL-0044.
