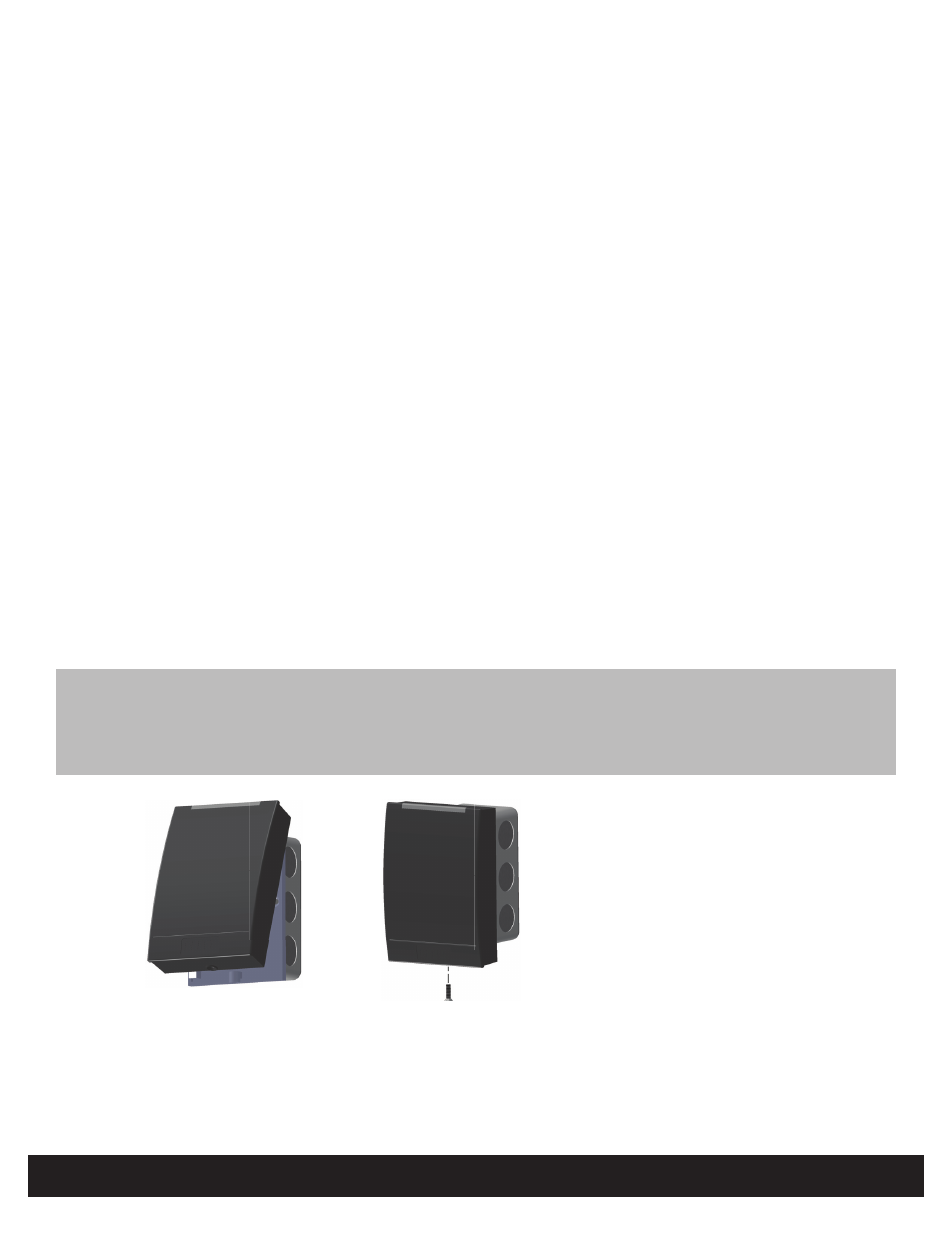

Install to Backplate
4
Contact EDGE EVO through one of the following methods.
Network Defaults Jumper
The Network Defaults Jumper requires physical access to the EDGE EVO controller. Physical access provides the necessity to
place a jumper over the debug port prior to the controller rebooting. The controller reconfigures the network settings to the factory
defaults when the jumper is on the debug port during a reboot. From this point, configuration (or re-configuration) proceeds
normally.
Use the Network Defaults Jumper to correct potential errors in an EDGE EVO controller Network Configuration or if the admin
password is forgotten.
A jumper is supplied with the EDGE EVO for the Hi-O termination; borrow this jumper to perform this process. Replace the
jumper to the Hi-O termination after restoring network defaults.
1. Remove the back plate on the EDGE EVO.
2. Loosen the Mylar cover.
3. Reboot the controller and place the supplied jumper over pins 3 and 5 of the Debug port after the beep. The Debug port
is an eight pin header, located above and to the right of the Ethernet connector, underneath the Mylar.
Note: The network reset opportunity occurs for 30 seconds, while rebooting the controller. On an EDGE EVO, a second
beep occurs to signal the end of the 30 second period.
4. After 30 seconds, the beeper stays on constantly to indicate success. When an error occurs, you receive a single beep.
5. Remove the jumper; return it to the Hi-O termination header and cycle power. The controller resets in approximately
60-seconds. Once the reset is complete, you hear the single beep. After the 30-second window, you hear the second
beep. The controller is fully functional during this time.
CAUTION: During the controller rebooting process, all network configuration information is overwritten and
returned to the original defaults.
6. Configure the controller for your installation parameters.
7. Reinstall the back plate of the EDGE EVO.
