Page 21
1
Parts of
the Came
ra and M
a
in
Functions
Parts of the Camera and Main
Functions

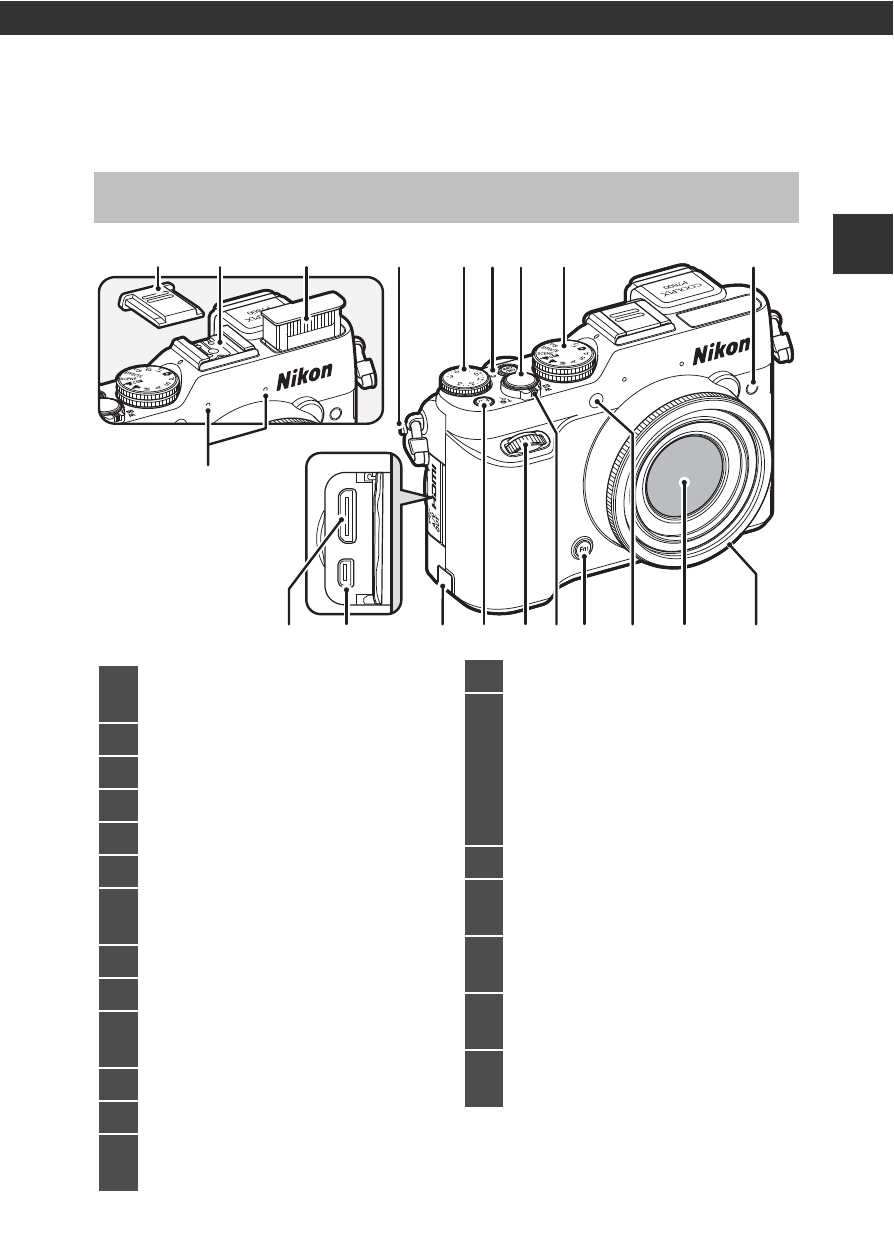

The Camera Body
5
6 7
9
8
10
20
4
19
18 17 16
14 13 12
1
2
3
15
11
1
Accessory Shoe Cover BS-1
..............................................................
2
Accessory shoe..........................
3
Flash .............................................................. 59
4
Microphone (stereo) .................88, 91
5
Eyelet for camera strap ....................... 8
6
Exposure compensation dial....... 69
7
Exposure compensation
dial mark..................................................... 69
8
Shutter-release button .............. 4, 34
9
Mode dial ................................................ 30
10
Infrared receiver (for optional Remote
Control ML-L3) ........................58,
11
Lens ring .......................................
12
Lens
13
Self-timer lamp.................................... 62
AF-assist illuminator ......................... 99
14
w1 (function 1) button ........4, 100
15
Zoom control ........................................33
f : wide-angle ...........................33
g : telephoto ..............................33
h : thumbnail playback........87
i : playback zoom ..................86
j : help...........................................39
16
Sub-command dial...........3, 6, 49, 51
17
w2 (function 2) button
............................................................. 11, 101
18
Power connector cover (for
optional AC adapter) ............
19
USB/audio/video output
connector .............................................102
20
HDMI mini connector (Type C)
.....................................................................102
