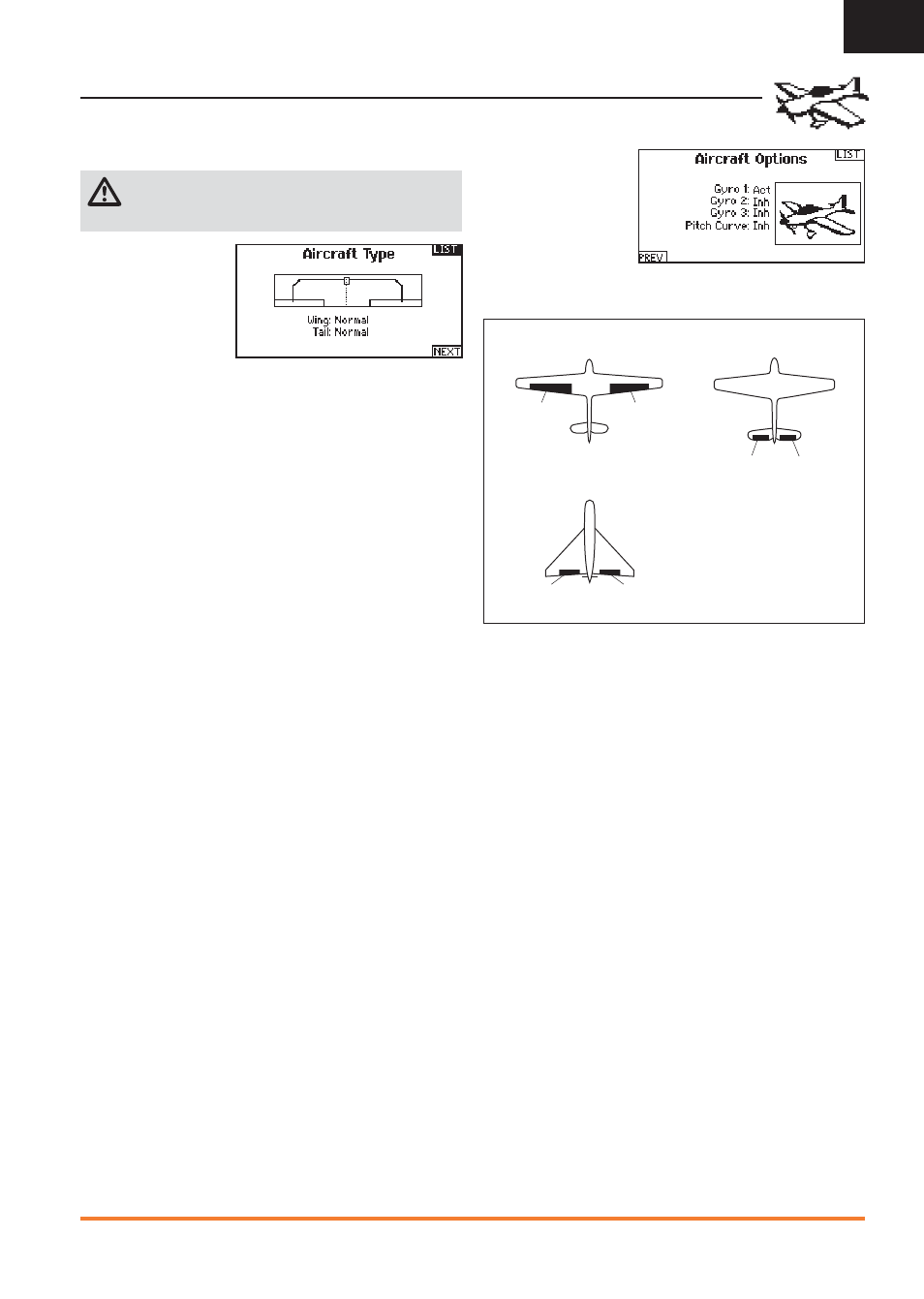

Aircraft Type
NOTICE: Refer to your airplane manual for recommended control
throws.
CAUTION: Always do a Control Test of your model with
the transmitter after programming to make sure your
model responds as desired.
Use the Aircraft Type
Screen to select wing and
tail types to match your
airplane model. Diagrams
and setup names show
on the transmitter screen
to show the available
setups.
Refer to community.spektrumrc.com for more information about
new DX18 AirWare software updates to support these options.
* Selection of multiple ailerons activates the Differential menu option.
** Selection of either of these activates the V-Tail Differential menu option.
† Both Canard Types are available in the Tail Type listing with Elevon A or
Elevon B selected.
# Activates the Gyro menu option in the Function List.
†† Activates Pitch in the Function List. If Pitch Curve is active, only one gyro
will be available.
Select wing and tail types before doing any other programming.
Image Selection
Press the NEXT screen
from the Aircraft Type
screen to access the
Aircraft Options screen
and to select an optional
airplane image to use for
the model selected.
ACRO (AIRPLANE)
Wing
• Normal
• Dual Aileron*
• Flaperon*
• 1 Aileron 1 Flap*
• 1 Aileron 2 Flaps*
• 2 Ailerons 1 Flap*
• 2 Ailerons 2 Flaps*
• Elevon A*
• Elevon B*
• 4 Aileron*
• 6 Aileron*
Tail
• Normal
• V-Tail A**
• V-Tail B**
• Dual Elevator
• Dual Rudder
• Dual Rudder/Elevator
• Canard + 1 Rud
†
• Canard + 2 Rud †
NEXT screen
• Gyro 1 #
• Gyro 2 #
• Gyro 3 #
• Pitch Curve ††
Recommended Servo Connections
D C
A B
F E
A AUX1 servo port (left aileron)
B AILE servo port (right aileron)
C ELEV servo port (left V-tail)
D RUDD servo port (right V-tail)
E AILE servo port (left aileron)
F ELEV servo port (right aileron)
Dual Aileron Wing
Type Connection
Elevon Wing Type
Connection
V-Tail Type
Connection
