32 SPEKTRUM DX18 • TRANSMITTER INSTRUCTION MANUAL
EN

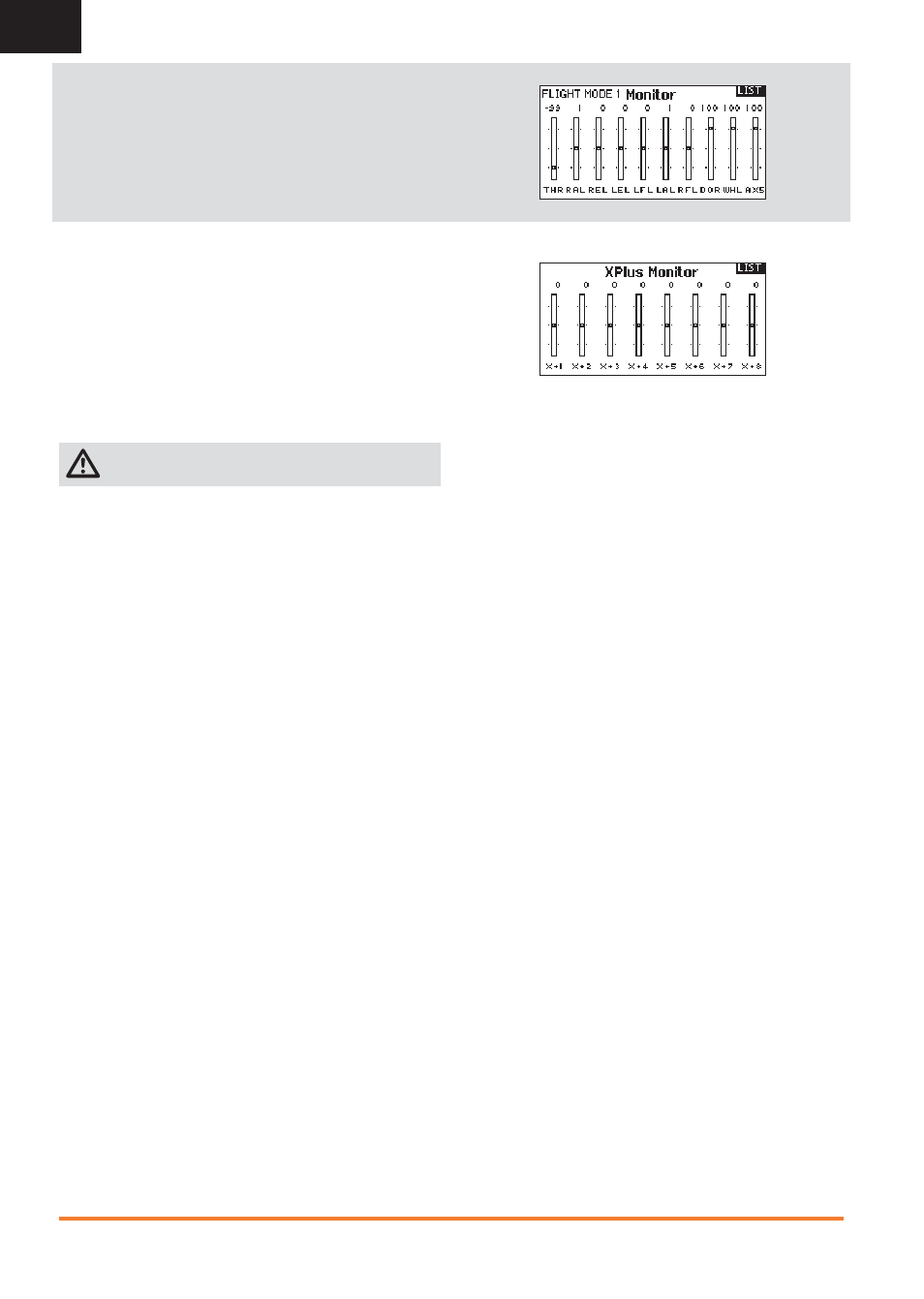

Monitor
The Monitor screen displays the servo positions for each channel
graphically and numerically. This is useful to verify programming
functions, trim settings, mix directions, etc. The numeric value is
directly relative to the travel adjust and mix values (e.g., 100%
travel adjust equals 100% value in the Monitor).
X-Plus Monitor
Use of the X-Plus Monitor requires X-Plus to be active. The X-Plus
Monitor screen displays the output position for each X-Plus chan-
nel graphically and numerically. This is useful to verify program-
ming functions, trim settings, mix directions, etc. The numeric
value is directly relative to the travel adjust and mix values (e.g.,
100% travel adjust equals 100% value in the X-Plus Monitor). The
X-Plus Monitor shows the additional channels and requires servos
which can be connected to the optional X-Plus module and an
X-Plus-capable receiver. X+1 and X+2 channels also serve as the
monitor for channels 11 and 12 on a 12 channel receiver.
CAUTION: Do NOT connect throttle or any primary
control sur face to the X-Plus Module.
