30 SPEKTRUM DX18QQ EN
System Settings
The System Settings menu consists of four screens: System Settings, Extra
Settings, Serial Number and Calibrate. Select NEXT or PREV to move between
screens.
User Name
The User Name fi eld displays your name
in the lower right corner of the main
screen.
To Program a User Name
1. Scroll to User Name and press the
scroll wheel. The User Name screen
appears.
2. Scroll to the desired character position and press the scroll wheel. Scroll
left or right to change the character and press the scroll wheel to save the
selection. The User Name can contain a maximum of 20 characters, including
spaces.
3. Press the Back button to save the User Name and return to the System Set-
tings screen.
Contrast
To adjust the screen contrast:
1. Scroll to Contrast and press the scroll wheel.
2. Scroll left or right to adjust the contrast value. Lower numbers lighten the
contrast, higher numbers darken it.
3. Press the scroll wheel once to save the selection.
Backlight
The Backlight fi eld adjusts the backlight appearance time and brightness. You
have the option to turn the backlight off for models you fl y during the day and turn
the backlight on for night fl ying models.
The backlight time options are:
Off: Appears for a short time when you power on the transmitter.
On: The backlight is always on.
Set Time: The backlight is on for 3, 10, 20, 30, 45 or 60 seconds before
automatically turning off. Press the scroll wheel once to turn the backlight on.
The backlight percentage adjusts the backlight intensity and it is adjustable in
10% increments from 10% (darker) to 100% (brighter).

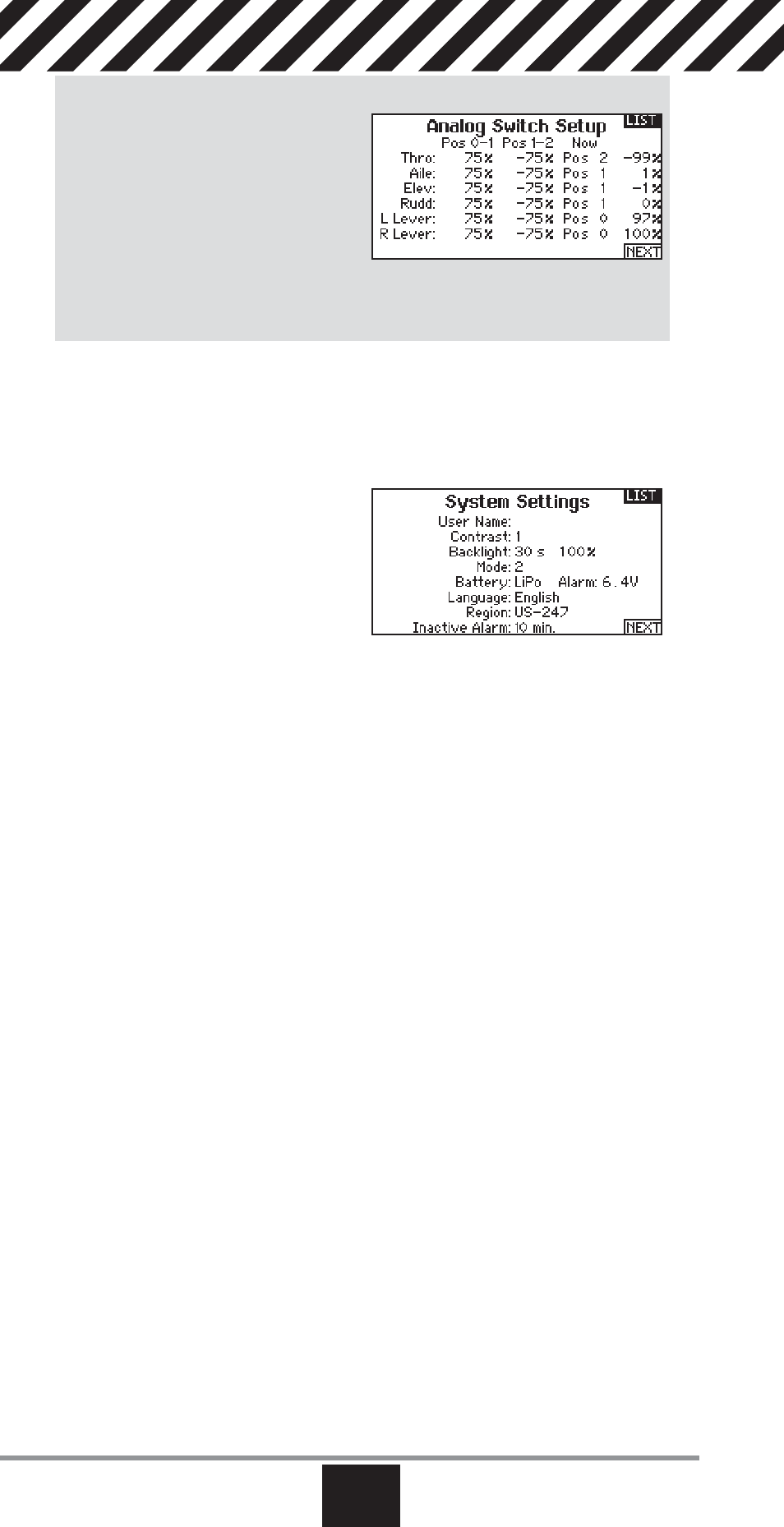

Analog Switch Setup
Allows all sticks and pots to be used as a
kick point to turn on functions like mixes.
To add a kick point:
1. Move the control stick, lever or knob
to the desired kick point position.
2. Scroll to the desired kick point and
press the scroll wheel once to save
the selection.
To delete a kick point, scroll to the desired kick point and press the Clear button.
