10 SPEKTRUM DX18QQ EN
Function
1
Antenna 1
2
RIght Trim
3
Right Knob
4
Switch E
5
Switch H
6
Switch G
7
Switch F
8
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
9
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
10
Aileron Trim (Mode 1,2)
Rudder Trim (Mode 3,4)
11
Roller
12
Charge Port
13
On/Off Switch
14
LCD
15
Clear Button
Function
16
Back Button
17
Speaker Grill
18
Rudder Trim (Mode 1,2)
Aileron Trim (Mode 3,4)
19
Elevator Trim (Mode 1,3)
Throttle Trim (Mode 2,4)
20
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/AileronStick (Mode 4)
21
Switch C
22
Switch B
23
Switch A
24
Switch D
25
Bind/Switch I
26
Left Trim
27
LED
The transmitter comes with a thin, clear
plastic fi lm applied to some front panels for
protection during shipping. Humidity and
use may cause this fi lm to come off. Care-
fully remove this fi lm as desired.

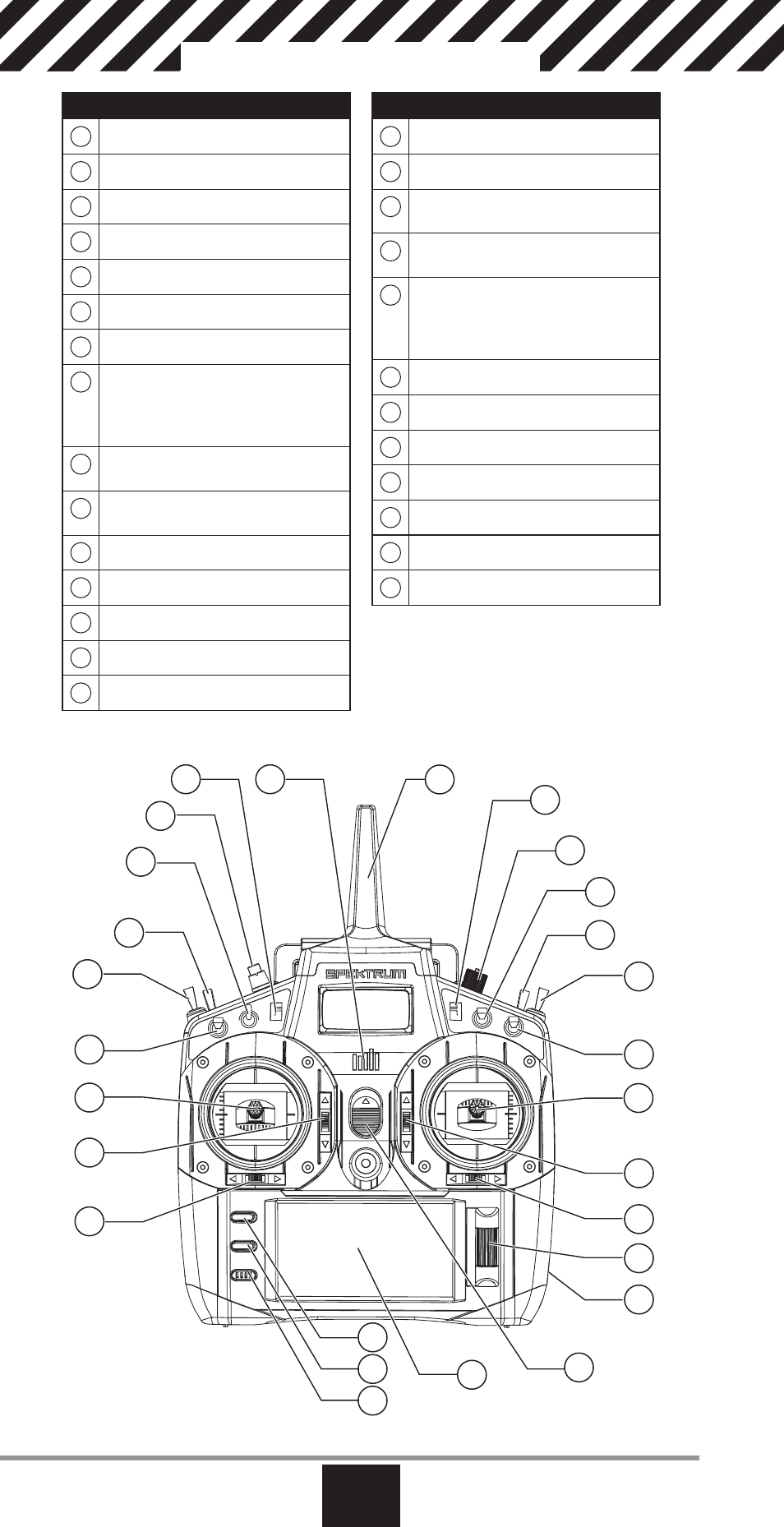

Transmitter Functions
11
12
13
14
15
18
19
20
21
22
23
24
25
26 27
16
17
10
9
8
7
6
5
4
3
2
1
