14 SPEKTRUM DX18QQ EN
Binding is the process of programming the receiver to recognize the
GUID (Globally Unique Identifi er) code of a single specifi c transmitter. The DX18QQ
and AR12120 are pre-bound at the factory. You will need to rebind after the mod-
el programming is initially set up to fully program the model’s failsafe positions.
1.
2.
5. 6.
3. 4.
7.

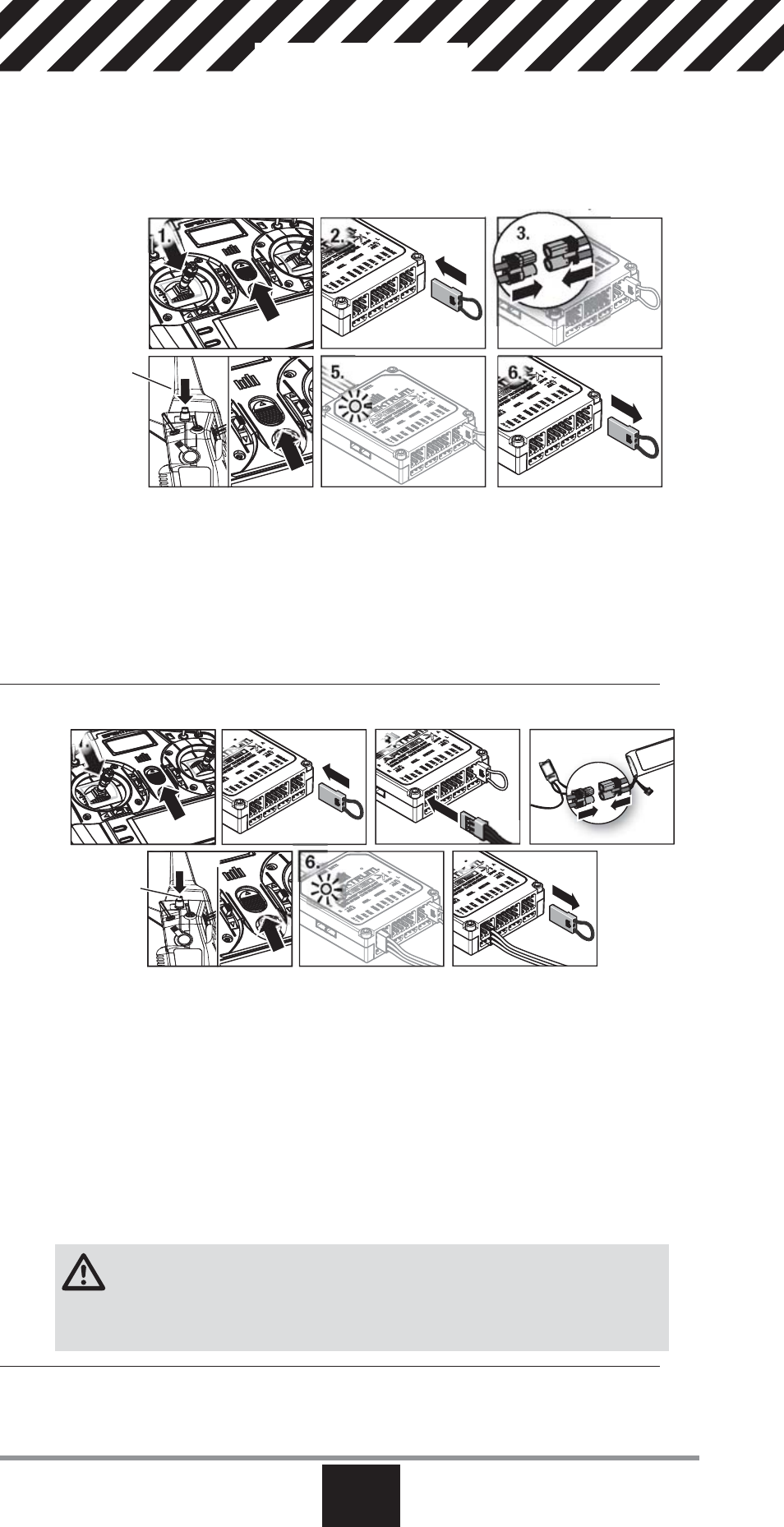

Binding Using the Receiver and Receiver Battery (mode 2 shown)
Binding Using the Receiver and ESC (mode 2 shown)
1. 2. 3.
4. 5. 6.
1. Move the throttle stick to the lowest position and power off the transmitter.
2. Insert the bind plug into the BIND/DATA port on the receiver.
3. Connect a fully charged receiver pack to any open port on the receiver. The
orange LED on the receiver rapidly fl ashes when the receiver is in bind mode.
4. Press and hold the transmitter bind button while powering on the transmitter.
5. Release the Bind button when the transmitter screen displays “Binding”. Bind-
ing is complete when the orange transmitter and receiver LEDs turn solid.
6. Power off the receiver and remove the bind plug.
1. Lower the throttle to the lowest position and make sure the transmitter
is powered off.
2. Insert the bind plug into the BIND/DATA port.
3. Insert the ESC plug into the THRO port.
4. Connect the battery to the ESC and turn on the ESC switch, if available. The
receiver’s LED will rapidly fl ash when the receiver is ready to bind.
5. While pressing the Bind button, power on the transmitter.
6. Release the Bind button after the receiver has stopped fl ashing rapidly. Once
the receiver’s LED turns solid, the receiver is bound to the transmitter. The
screen also provides binding information.
7. Remove the bind plug from the receiver.
CAUTION: When using the DX18QQ with parkfl yer receivers, only use
receivers in parkfl yer-type aircraft (small electric airplanes or mini and mi-
cro helicopters). Installing parkfl yer receivers in larger aircraft could cause signal
blocking and loss of connection.
Binding
Hold button
while
powering
on
Hold button
while
powering
on
