Swiftech H20 8500 - Manual (Page 5)

Rouchon Industries, Inc., dbA Swiftech – 1703 E. 28 th St, signal Hill, CA 90755, USA – T (562) 595-8009 – F (562) 595-8769 – All content
Copyright Swiftech 2002 – Last edited Dec 12, 2002 – Subject to revision without notice - 5 -
P u m p
o u t l e t
P u m p
i n l e t
Always connect individual
components from bottom to
top, so that the liquid naturally
pushes the air up and out,
during the fill and bleed process
If radiator is installed sideways
connect the lowest tube to
become the inlet
From water-block
To fill and bleed
From pump
To fill and bleed
Feed
bottle
Fill & bleed kit
Pump
Open
Open
MCR80
MCW5000
If radiator is installed
straight up, you can use
either one of the tubes for
inlet and outlet
Closed
To radiator To radiator
To radiator
MCW50
VGA cooler
From
pump
MCW50
VGA cooler

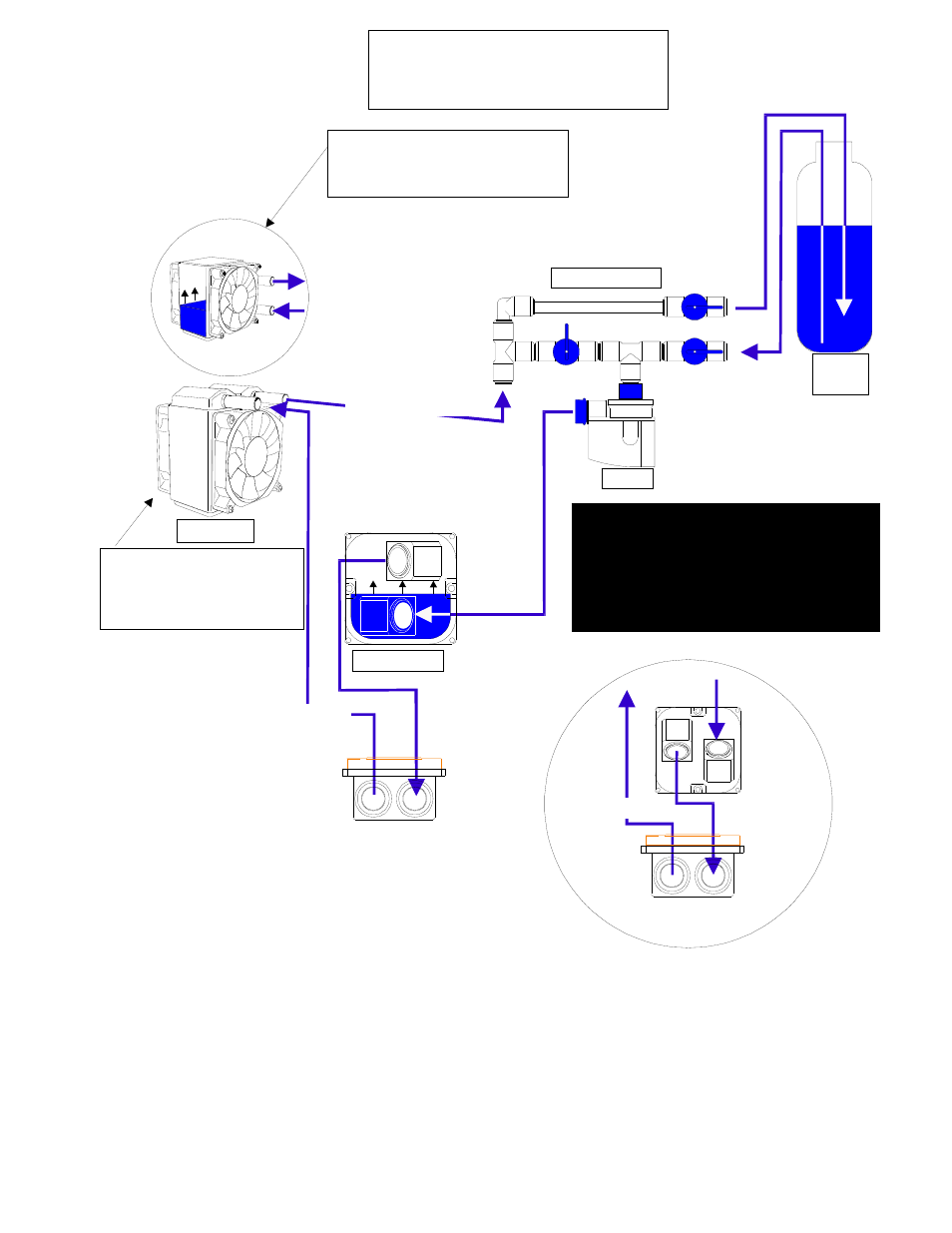

TUBE ROUTING AND
FILL & BLEED OPERATIONS
WITH VGA COOLING
10. Fill and bleed operations
