Swiftech H20 120 PREMIUM2 - Manual (Page 22)

Copyright Swiftech 2007 – All rights reserved – Last revision date: 1-15-07 - Information subject to change without notice – URL: http://www.swiftech.com
Rouchon Industries, Inc., dba Swiftech – 3400 Industry ave., suite 104, Lakewood, CA 90712 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail: [email protected]
PAGE 22 of 28
ITEM NO. PART NUMBER DESCRIPTION QTY
.
1 BCKT1 "L" bracket 1
2 BCKT2 "U" bracket 2
3 90272A146-6-32x3-8-philips 3
4 91772A158-6-32X1.75 6-32 x 1 3/4" Philips screw 2
5 90760A007 6-32 Nut w/teeth washer 3
6 FW150X437X092 Rubber Washer 437X150X092 2
7 93286A041-WASHER zinc plated washer 5
.150"
(3.8MM) HOLE
DRILL ONE
HANGING MOUNT
Panel
1
5
4
7
2
3
6
UPRIGHT MOUNT
Panel
BACK-PANEL MOUNT
Panel
2.00 " (50.8mm) APART
DRILL TWO
0.150" HOLES
6-32 x 3/8” Philips screw

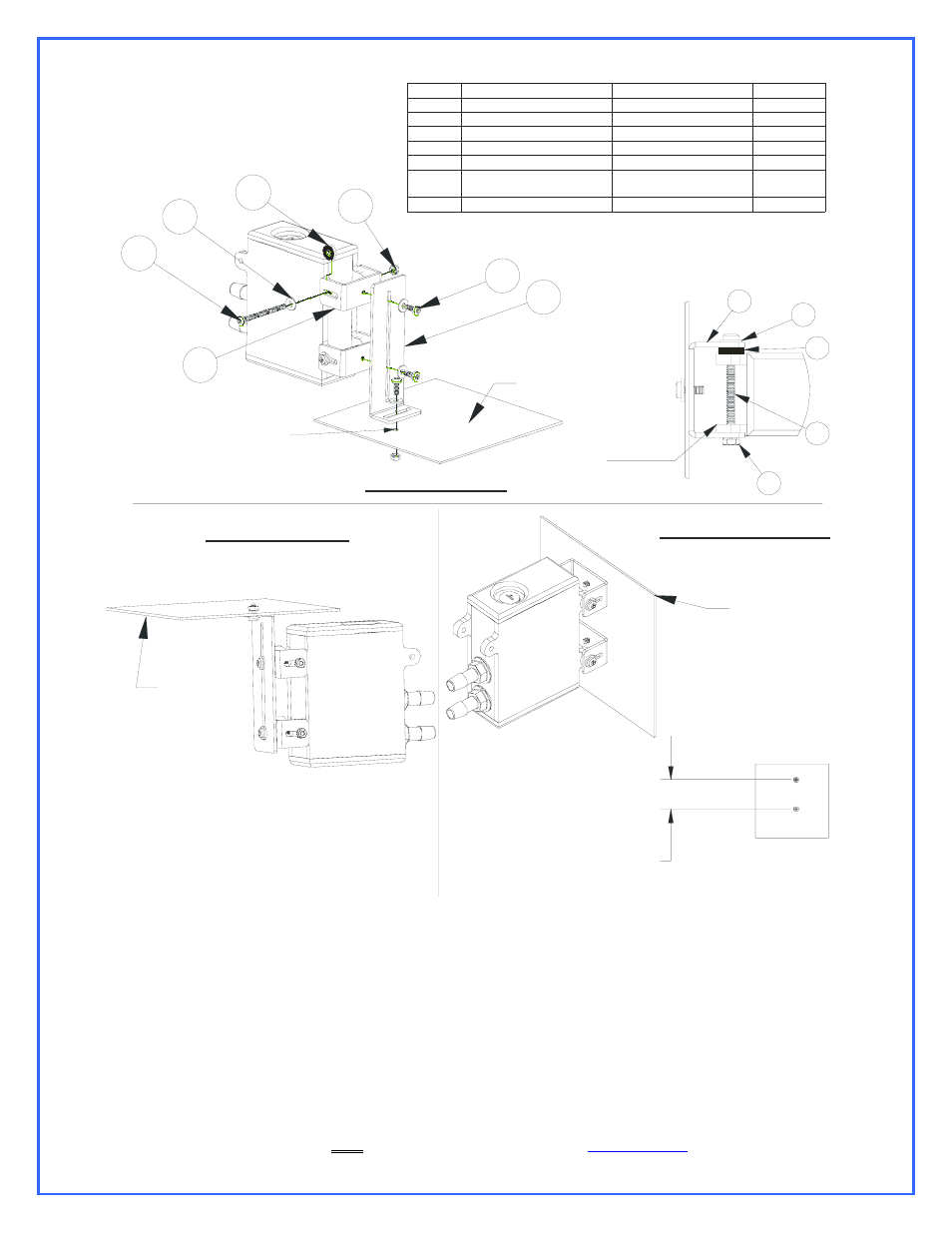

MCRes Micro
Bracketry installation and
examples
Note 1: rubber washer 6
should be inserted between
either side of the reservoir
ear and the U bracket 2.
4
6
7
5
Reservoir ear
2
Note 2: the 6-32 x 1 3/4” screw #4 & nut # 5 assembly
is designed to protrude as little as possible in order
to reduce overall clearance necessary for the Micro
Res assembly. It is thus necessary to slightly push the nut
in order to engage it on the screw thread.
