3 MCR ES -M ICRO R ESERVOIR I NSTALLATION
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 MCRES-MICRO Reservoir 1
2 1-4“ NPSM x 3-8“ and 1-2“barb Barb fitting
2 pairs
each
3 O-RING-9557K473 Barb fitting O-Ring 2
4 pg7-o-ring Fill-cap o-ring 1
5 pg7-plug Pg7 Fill-cap 1
6 MOUNTING HARDWARE 3
90272A152-6-32x0500philips 6-32 x 7/8" (22mm) Philips screw 1
90760A007 6-32 Nut 1
washer-91007A614 Lock Washer 1
WASHER-RUBBER-437X150X092 Rubber Washer 1
7 panel 1
6a
6b
6c
6d

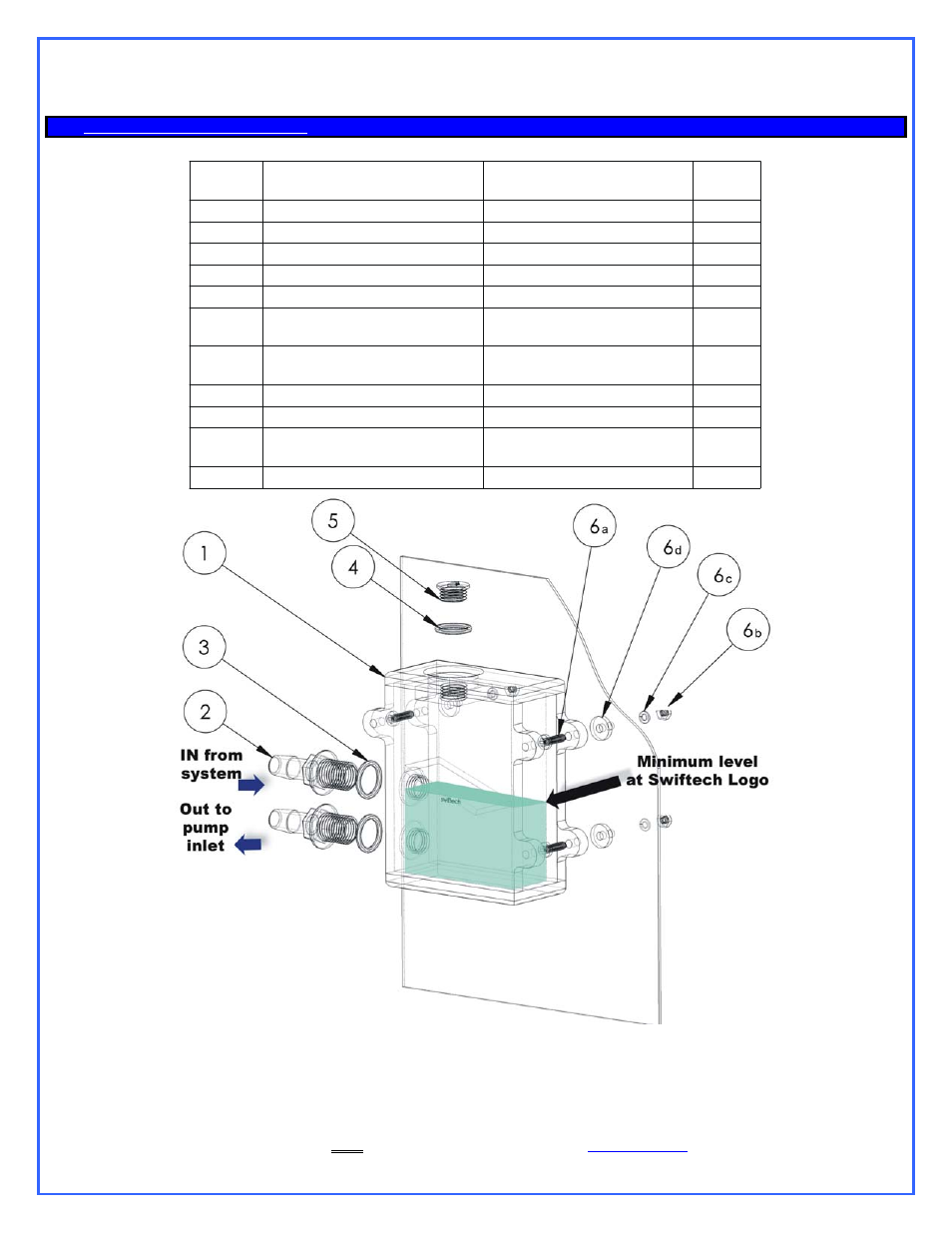

Figure 1
