Installation

Oven Assembly

DECK INSTALLATION
1. Remove the decks from the carton package.

NOTE: Handle cordierite shelves carefully to avoid

damage.

2. Open the oven door and remove the center element

assembly. The assembly is removed by puling for-

ward and unplugging.

3. Install one of the decks in the bottom position. The

deck should rest on the angles above the element

and should be positioned in contact with the linerback.

4. Install the other deck in the center element assem-

bly on a flat surface. Reinstall the center deck and

element assembly in the oven. The assembly is sup-

ported on four angle supports.

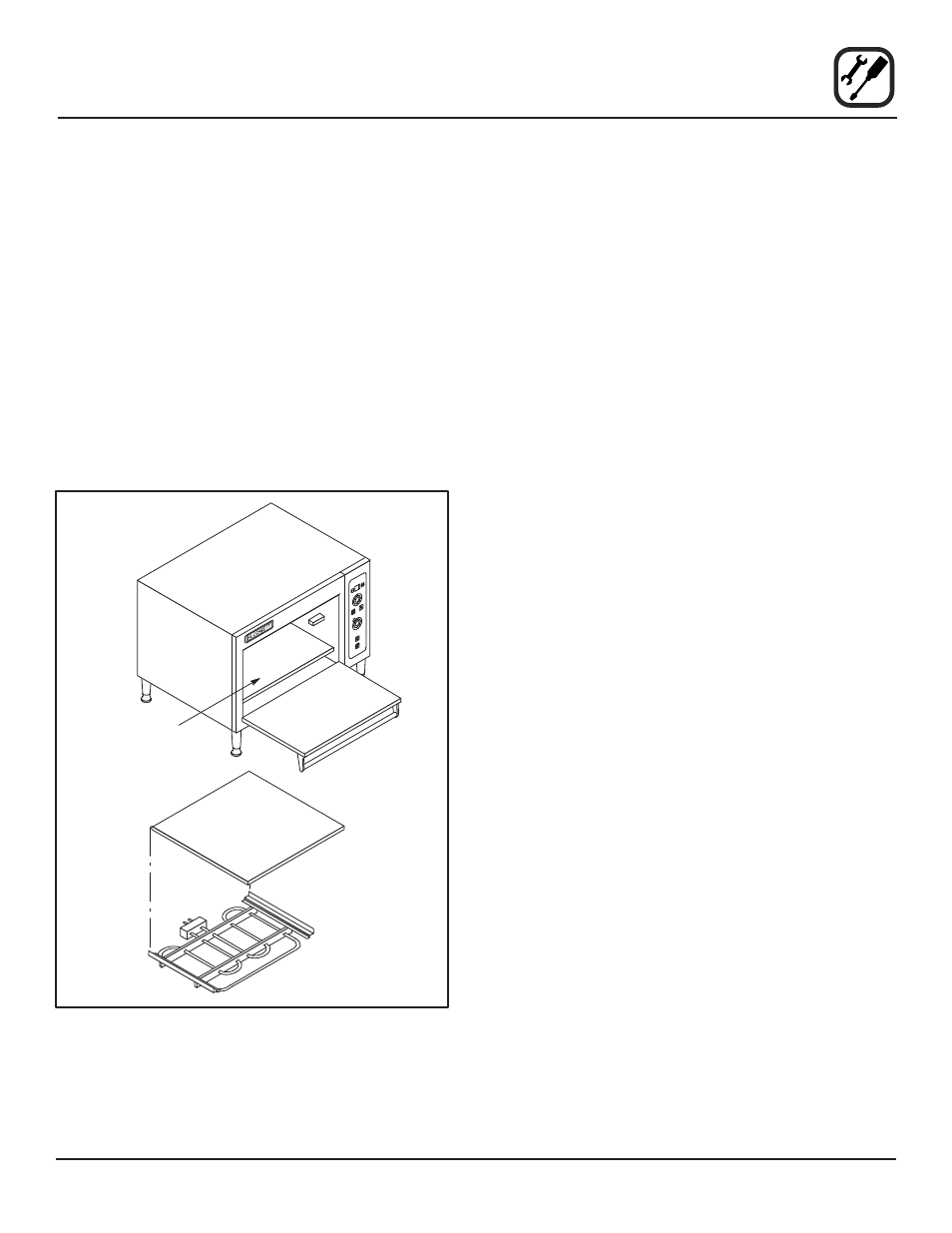

Bottom Deck

Center Element

Figure 5

LEVELING THE OVEN
1415 ovens are equipped with NSF listed adjustable sani-

tary legs.
1. Level the oven side to side and front to back by plac-

ing a spirit level on the base frame of the lower sec-

tion.

2. Adjust the leg feet in or out as necessary.
