6
Installation

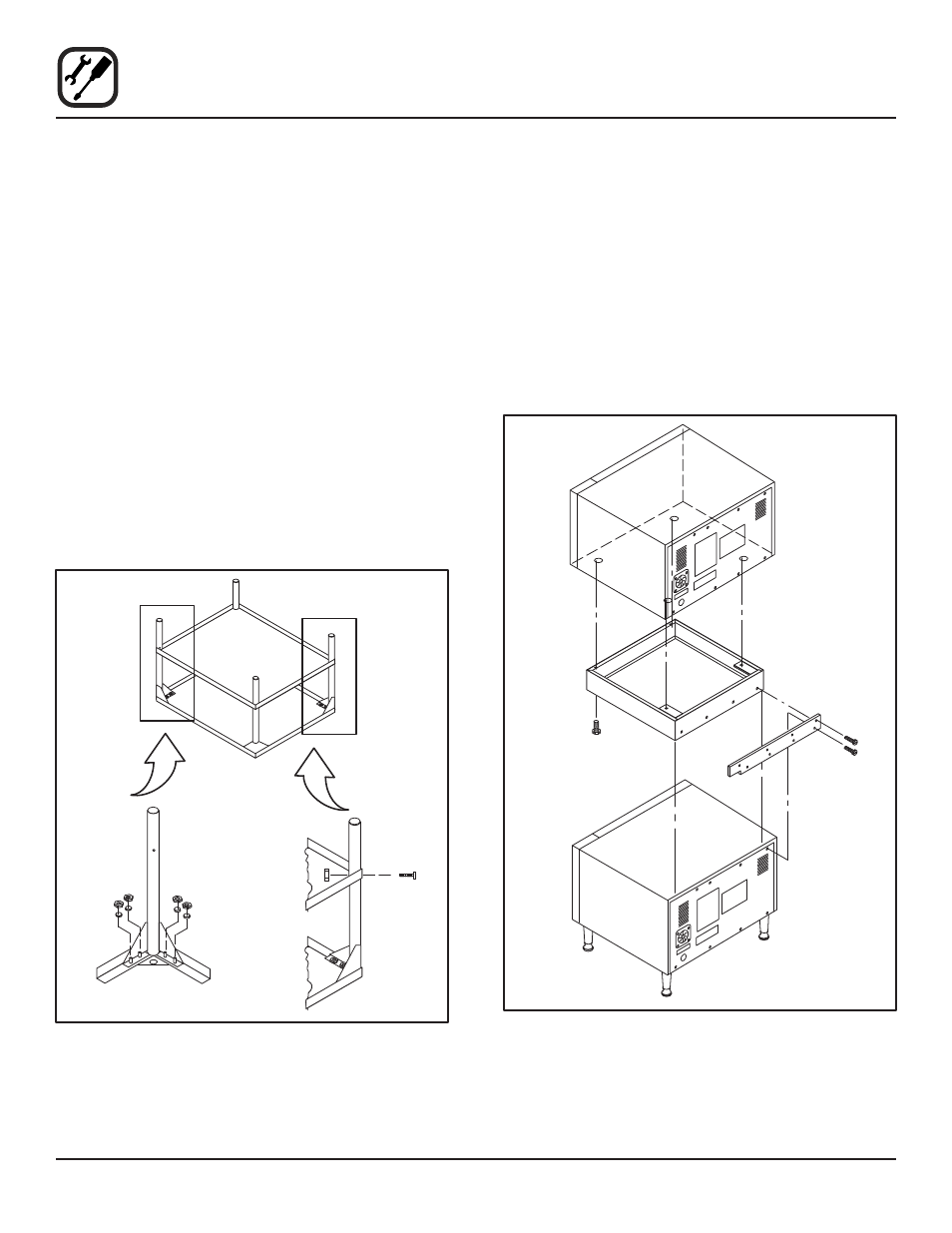

Oven Assembly
STAND ASSEMBLY
1. Attach legs to stand frame. Secure with 5/16-18 nuts
and lockwashers (4 per leg). DO NOT TIGHTEN.
2. Place shelf on legs. Holes in legs should align with
holes in shelf corner brackets. Legs should be loose
enough to assist in this alignment. Place 1/4-20
x 2-1/4” bolts through legs and into shelf brackets.
Bolts should fit radius of legs. Install 1/4-20 nuts after
all four corners are in place. Tighten four nuts. Do not
over tighten these nuts, deformity of leg surface can
occur.
3. Tighten the sixteen 5/16-18 nuts installed in Step 1.
DO NOT over tighten.
4. Optional Caster Assembly - Secure caster by tighten-
ing with a wrench. Prior to placing oven section on
stand, check that locking casters are on front of stand
assembly.
5. Center oven on stand assembly.
Figure 3
DOUBLE STACKING
1. Connect the spacer assembly to the bottom of th up-
per unit using 4 hex bolts.
2. Align and secure the spacer connecting plate to the
lower unit using 4 sheet metal screws.
NOTE: First remove the 4 sheet metal screws along
the top edge of the lower unit panel.
3. Stack the upper unit on top of the lower unit.
4. Align and secure the spacer connecting to the spacer
assembly using 4 sheet metal screws.
Figure 4
