10

Installation

Plumbing Connections

CLeAninG & DeLiMinG CHeMiCAL
1. BCM/BLCM-61, 62, 101, 102 and 202 ovens only.

The oven is supplied with a chemical bottle holder.

The holder can be affixed to either side of the oven.

Place it on the stand crossmember.

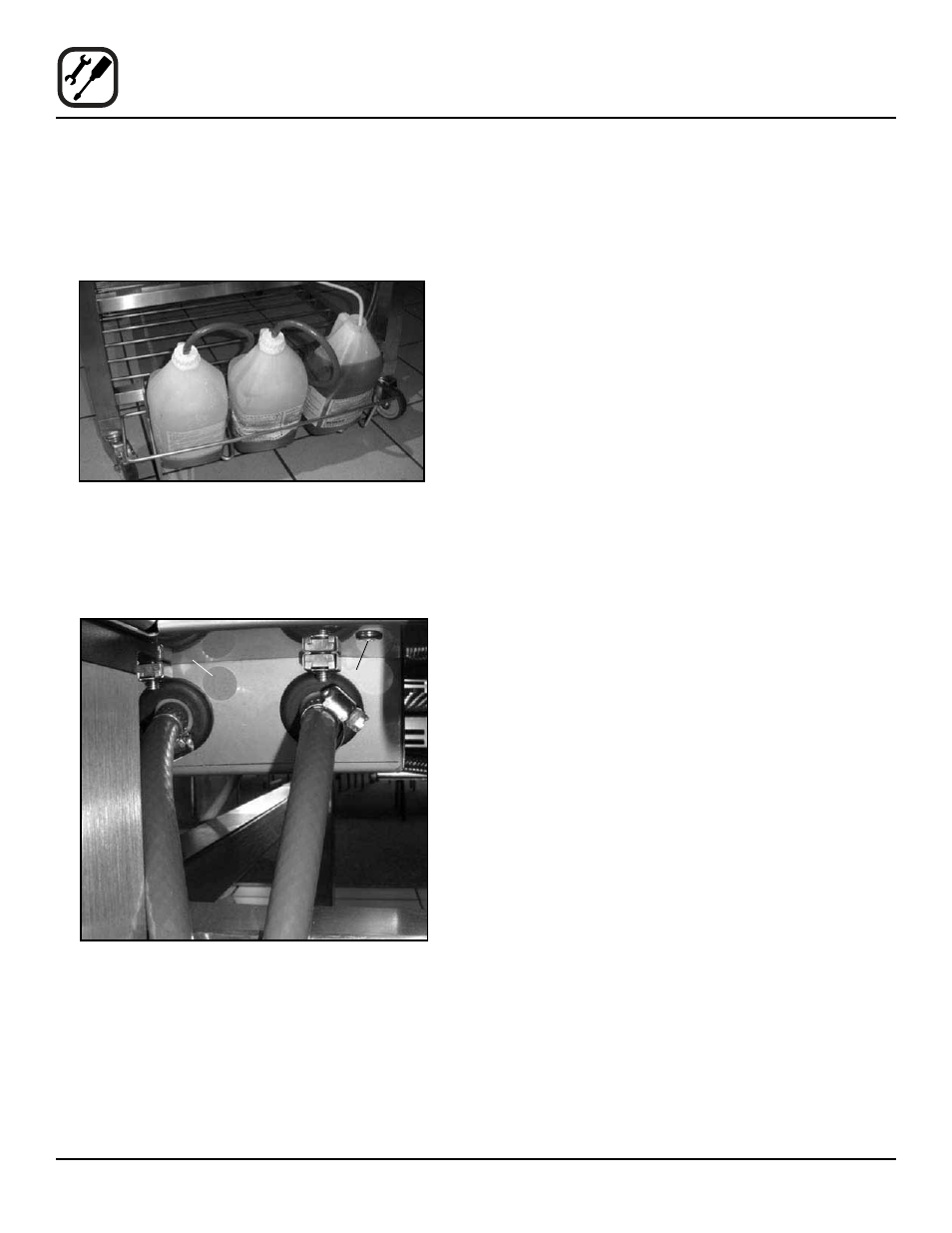

Figure 5

2. Connect the supplied detergent tubes (red and blue)

to the underside of the oven near the rear. Connect

the blue hose to the fitting with the blue sticker and

the red hose to the fitting with the red sticker.

Red Sticker

Blue Sticker

Red Tube

Blue Tube

Figure 6

3. Insert the blue and red hoses into the proper bottles.

Red is for detergent, blue is for rinse aid.

4. BCM only - The last line is for the delimer. This is

the tan colored tube protroding from the bottom of the

oven. Cut the tubing to the proper length, if needed,

and place the tubing into the delime bottle.

NOTE: If the tube is cut to length, remove the stain-

less steel weight from the end of the tube

and reinsert.
