Installing the Switch
60
Installing an Expansion Module
This section contains the instructions for installing an optional
expansion module in a switch. For information on cabling
specifications for the expansion modules, refer to the section
Expansion Modules on page 2-33.
To install an expansion module, perform the following steps:
1. Disconnect the switch’s power cord, if attached.
Caution
Be sure to disconnect the power cord to the switch before installing
an expansion module. If the switch is connected to a redundant
power supply (RPS) unit, disconnect the switch from the RPS unit as
well. Installing the expansion module with the switch powered ON
can damage the module.
2. Remove a blank faceplate from one of the expansion slots on the
front of the switch by unscrewing the faceplates two captive
screws. Refer to Figure 3-15. Do not remove the blank faceplate if
you are not installing an expansion module in the slot.

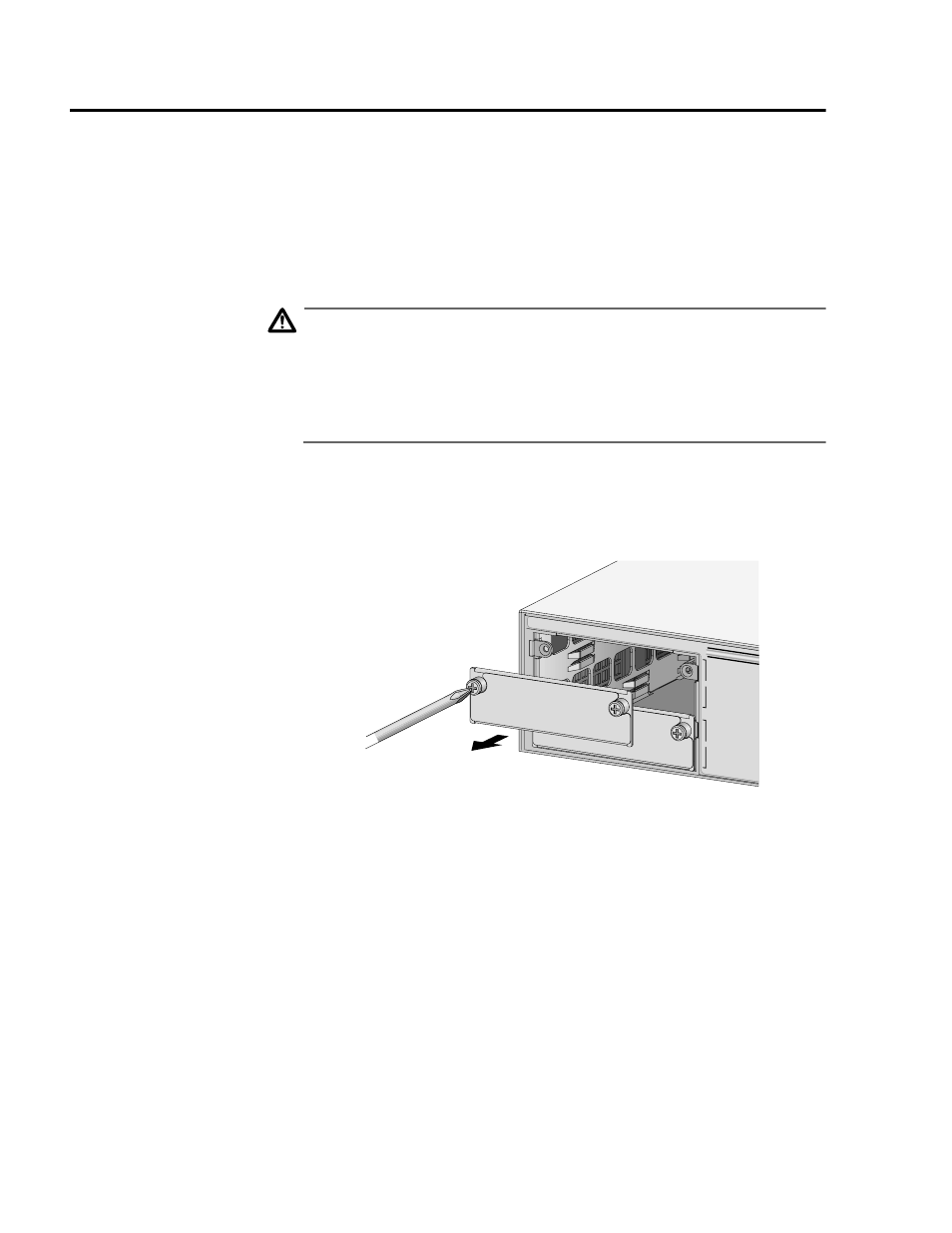

Figure 3-15 Removing the Blank Panel
If you are installing only one expansion module in the switch,
install the module in slot A. While the module will work in slot
B with slot A empty, the port numbering assignments will
change if you later install a module in slot A. This could affect
VLAN memberships on the switch, and this could require you
to adjust your VLAN configurations.
A
B
