Installing the Switch
2-10
Installing a
Media
Dependent
Adapter
To install an MDA, do the following:
1. Disconnect the switch’s power cord.
2. Unscrew the three Phillips head screws on the blank faceplate and
save the faceplate and screws for future use.
Caution
Make sure the MDA blank panel is attached to the unit if the MDA slot
is vacant.
3. The standoff on the MDA serves as a guide to slide the MDA correctly
into its slot so that the MDA’s 50-pin female connector attaches
securely to the 50-pin male connector on the main board. See
Figure 2-4 and Figure 2-5 when performing the next step.
4. Slide the MDA into its empty slot making sure that the standoff is
aligned properly prior to connecting the 50-pin connector.
5. Attach the female 50-pin female connector to its counterpart.

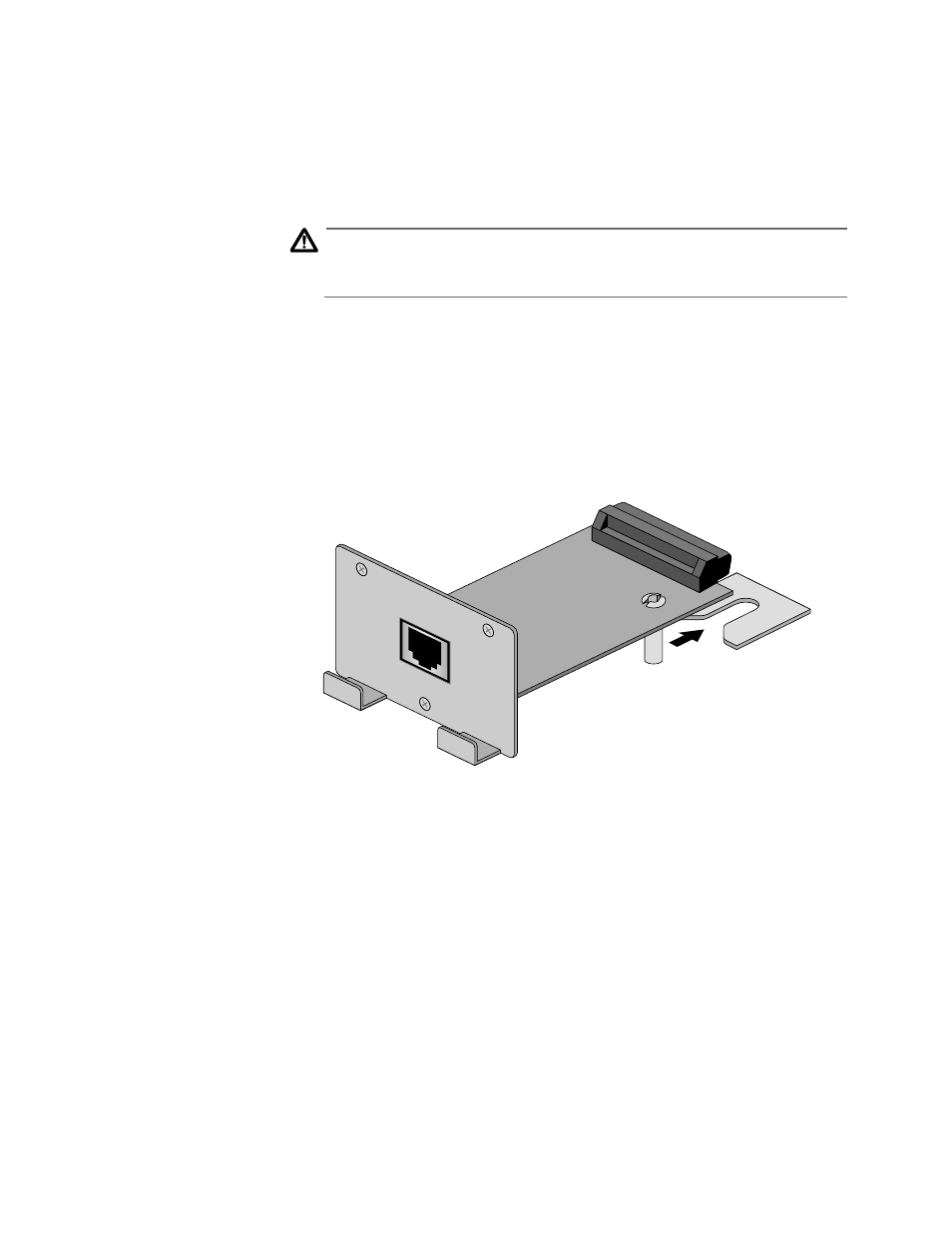

Figure 2-4 Guiding the MDA (AT-3701) Standoff into Its Slot
3701
100BASE-TX
X
