AT-S79 Management Software User’s Guide
Section I: Using the Menus Interface 77
Port-based
Example 1

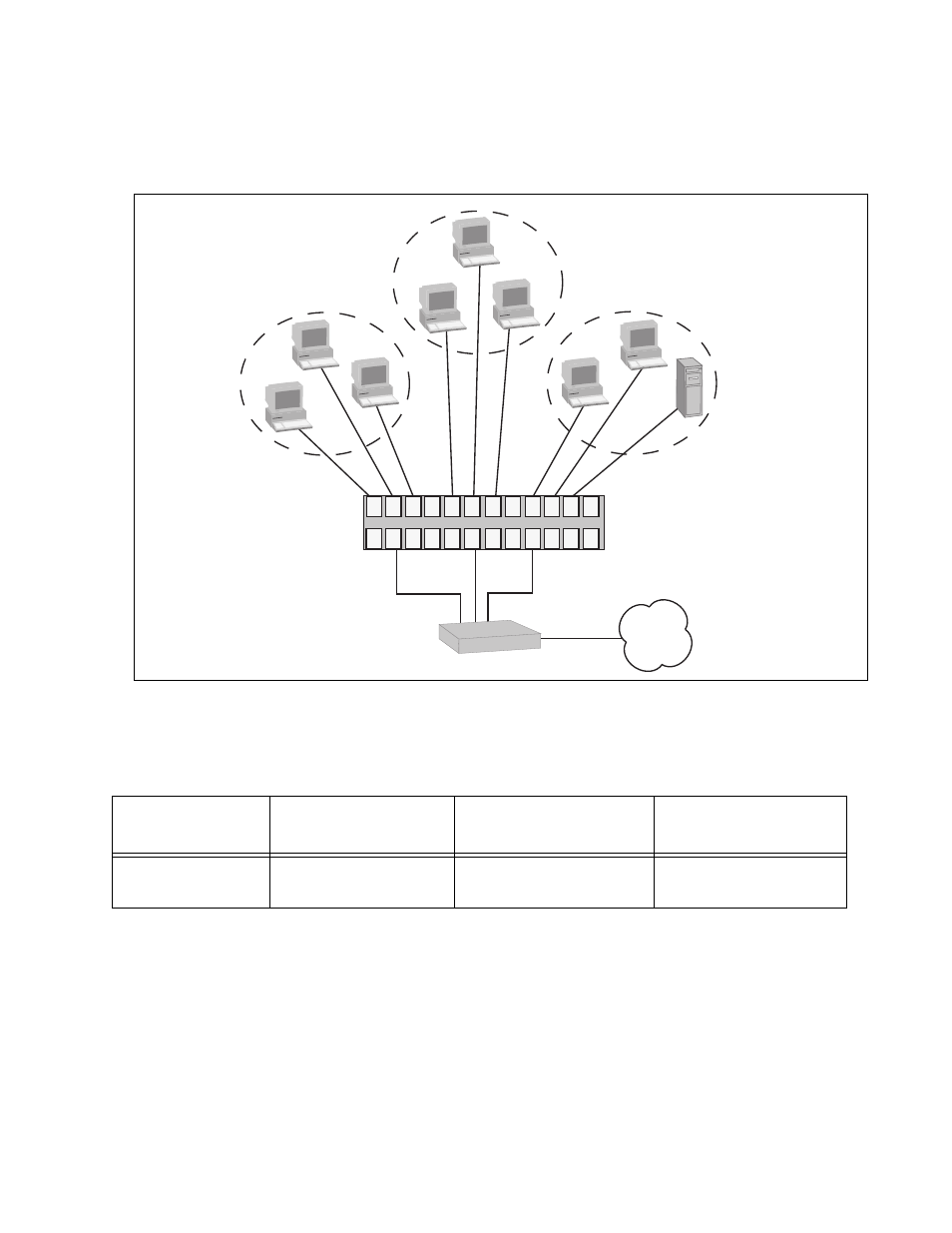

Figure 17 illustrates an example of one AT-GS950/24 Gigabit Ethernet
Switch with three port-based VLANs. (For purposes of the following
examples, the Default VLAN is not shown.)
Figure 17. Port-based VLAN - Example 1
The table below lists the port assignments for the Sales, Engineering, and
Production VLANs on the switch.
Note the following about the example:
ˆ Each VLAN has a unique VID, which is assigned when you create the
VLANs.
ˆ Each port’s PVID value has been adjusted to equal the VID of its
respective VLAN. In order for a port to be considered an untagged
member of a VLAN, its PVID must equal the VID of the VLAN. This
must be performed manually.
WAN
2
3
4
5
6
7 9 19 1 21 23 17 15 11 13
8 10 12 14 18 20 22 24 16
Router
AT-GS950/24 Gigabit Ethernet Switch
Sales VLAN
(VID 2)
Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
Sales VLAN (VID 2) Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
AT-GS950/24
Switch Ports 1, 3 - 5
(PVID 2) Ports 9, 11 - 13
(PVID 3) Ports 17 - 19, 21
(PVID 4)
