AT-S79 Management Software User’s Guide
Section II: Using the Web Browser Interface 137

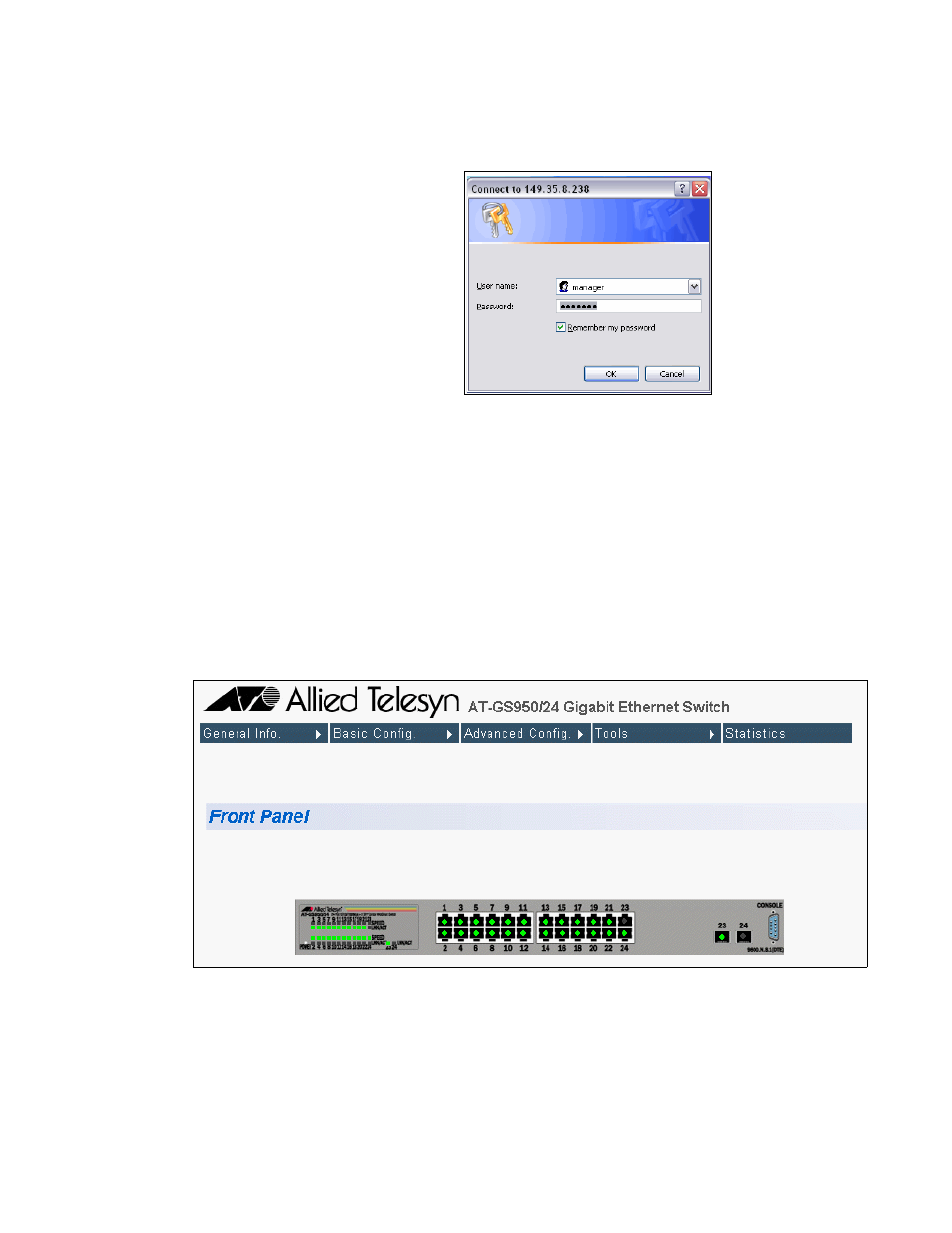

The AT-S79 management software displays the login dialog box,
shown in Figure 34.
Figure 34. AT-S79 Login Dialog Box
3. Enter the AT-S79 management login user name and password. The
default user name and password are both “manager”. The login name
and password are case-sensitive.
To change the user name and password, refer to “Configuring System
Administration Information” on page 145.
The AT-S79 management software displays the home page. The
window contains an image of the front of the switch. Ports that have a
link to an end node are green. Ports without a link are grey. An
example of a home page is shown in Figure 35.
Figure 35. Home Page for the AT-GS950/24
