Chapter 20: 802.1x Port-based Network Access Control
194 Section II: Using the Web Browser Interface
Configuring 802.1x Port-based Network Access Control
To configure 802.1x port-based network access control, perform the
following procedure:
1. From the Advanced Config menu, select 802.1x.
The 802.1x Configuration page is shown in Figure 55.

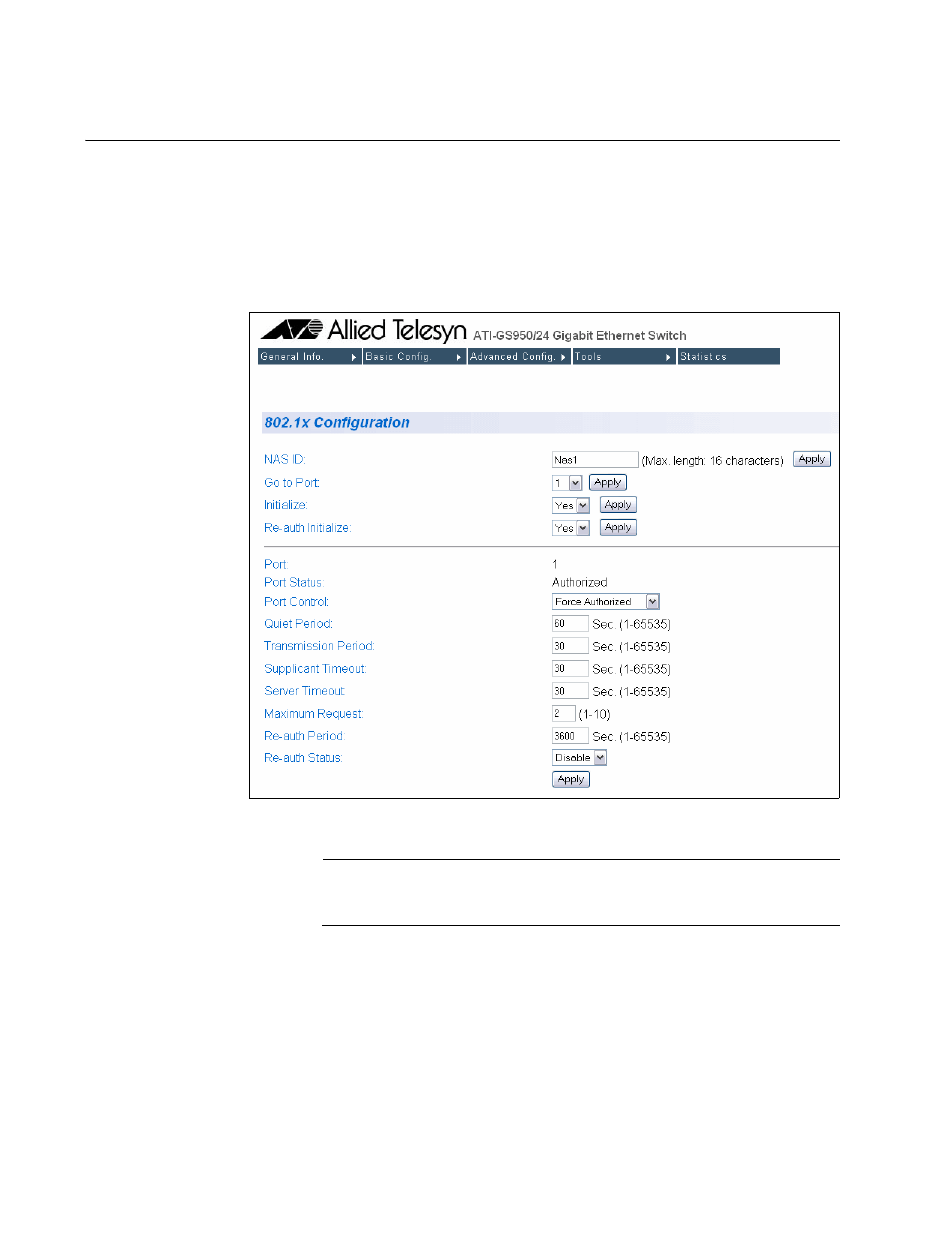

Figure 55. 802.1x Configuration Page
Note
The Initialize and Re-auth Initialize parameters are described in
Steps 5 and 6, respectively.
2. To select a port, do the following:
a. Click Go To Port and select the port you want to configure from
the pull-down menu. You can configure only one port at a time.
b. Click Apply.
The current settings for the selected port are displayed.
