Appendix B
Cleaning Fiber Optic Connectors
The fiber optic connector consists of a fiber optic plug and its adapter. The end
of the fiber optic cable is held in the core of the ferrule in the plug. Light signals
are transmitted through the core of the fiber. Even minor smudges or dirt on the
end face of the fiber, completely invisible to the naked eye, can disrupt light
transmission and lead to failure of the component or of the entire system.
Therefore, it is of utmost importance to clean all fiber optic connectors before
use.

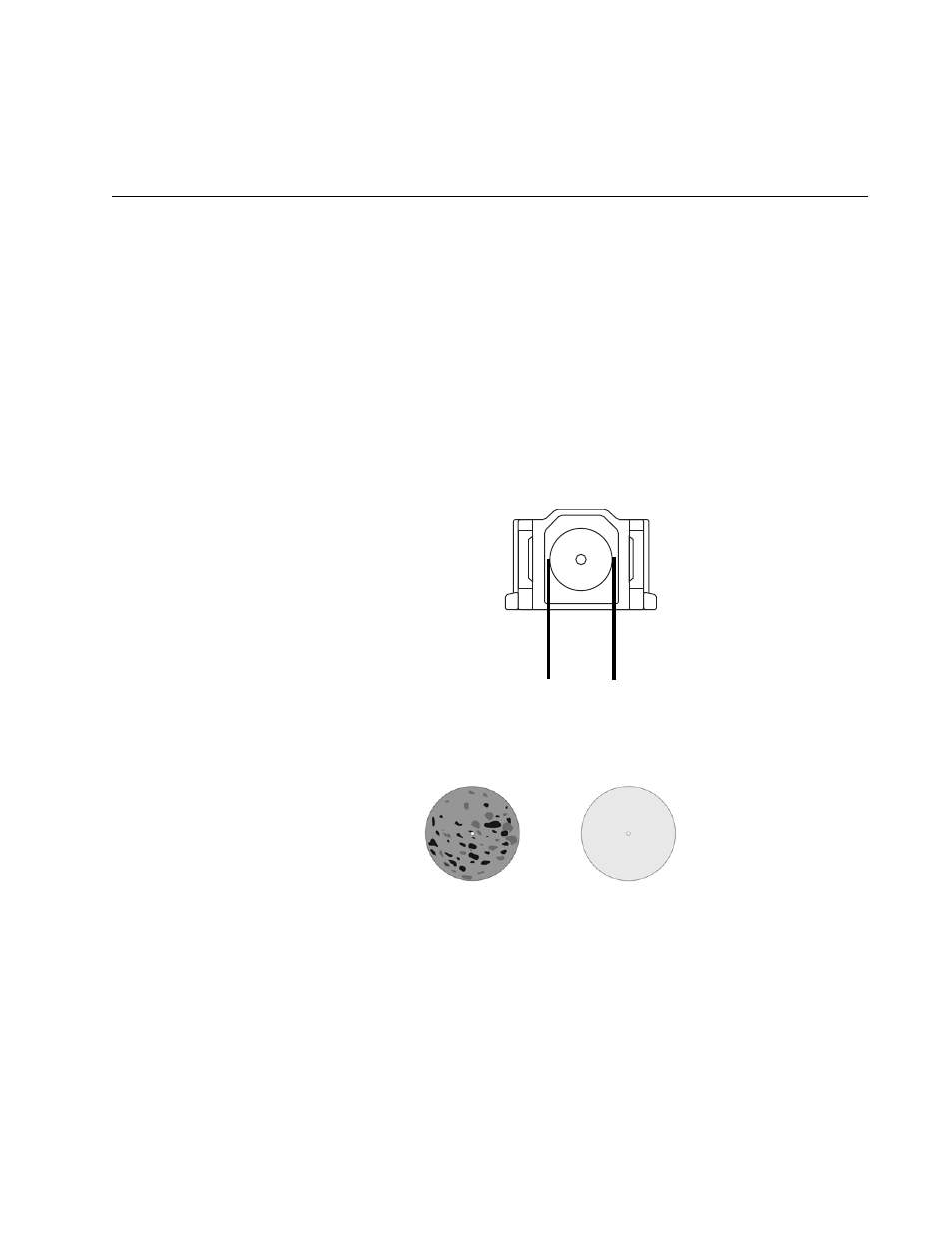

Figure 28 shows the ferrule in an SC connector.
Figure 28. Ferrule in an SC Connector Plug
Figure 29 shows part of the end face of an unclean and clean ferrule.
Figure 29. Unclean and Clean Ferrule
This appendix provides the following procedures
ˆ “Using a Cartridge-Type Cleaner” on page 40
ˆ
“Using a Swab” on page 42
177
Ferrule
Unclean Clean
