AT-iMG646MOD Installation Guide
37
Power Cord Wiring
To wire the terminal block for the gateway to the terminal block for the power
supply cord, refer to Figure 27 and Table 4.

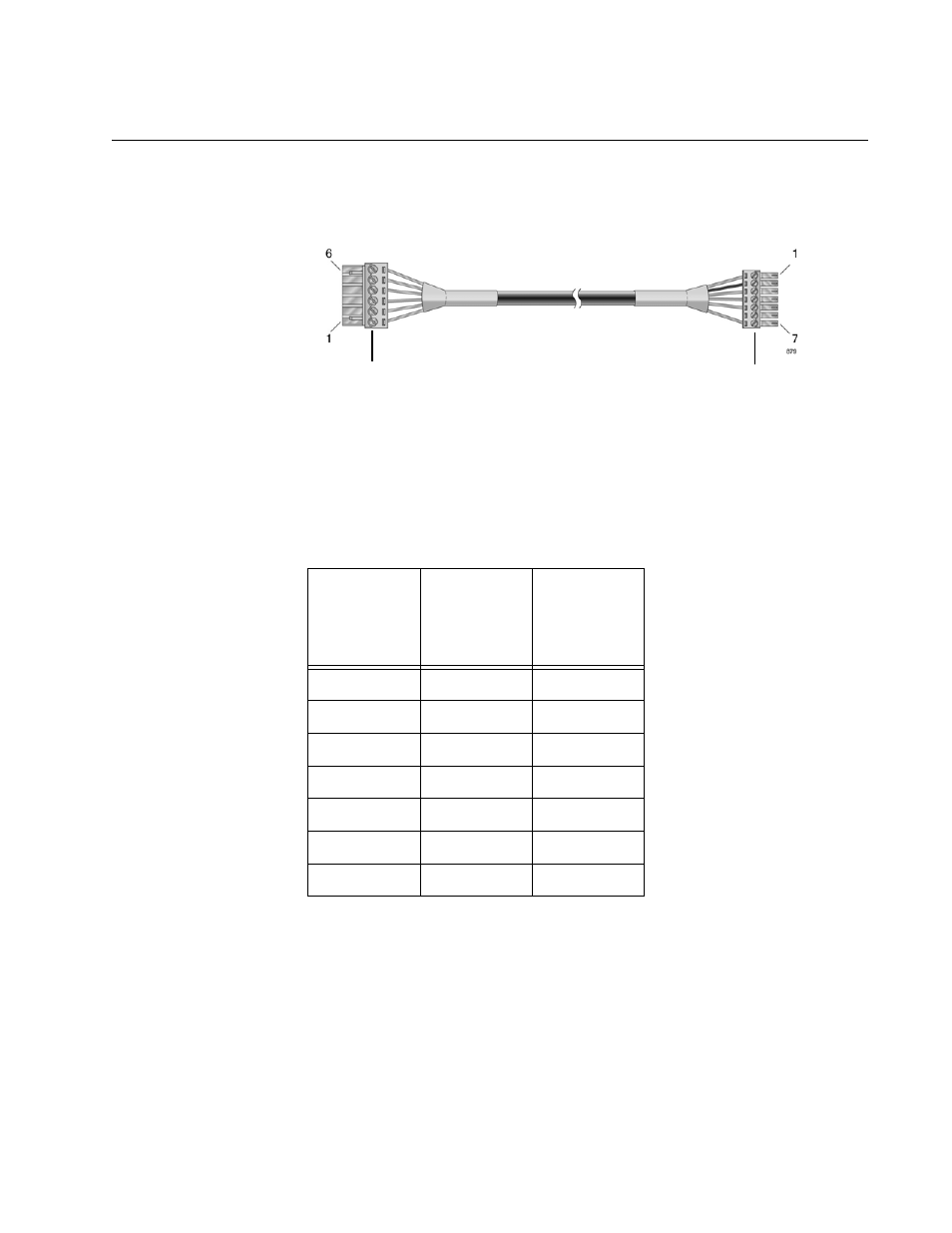

Figure 27. Gateway Terminal Block to Power Cord Terminal Block Wiring
Diagram
iMG Terminal Block
Power Supply Terminal Block
Table 4. Gateway Terminal Block to Power Cord
Terminal Block Wiring
Gateway
Terminal
Block
Color
Power
Cord
Terminal
Block
6
Red
1
5
Black
2
4
Green
3
3
Yellow
4
2
Orange
5
1
Brown
7
CUT
Drain Wire
2
