AT-iMG646MOD Installation Guide
16 Chapter 3: Installing the Gateway in the Enclosure
Connecting the Telephone Wires
To connect the telephone wires, perform the following procedure:
1. Remove the grommet from the telephone wire/ LAN entrance.
2. Connect the telephone wires to each pair of telephone terminal posts in the enclosure, as well as the
appropriate RJ-11 connectors, as shown in Figure 10, at 5.3 in-lbs.

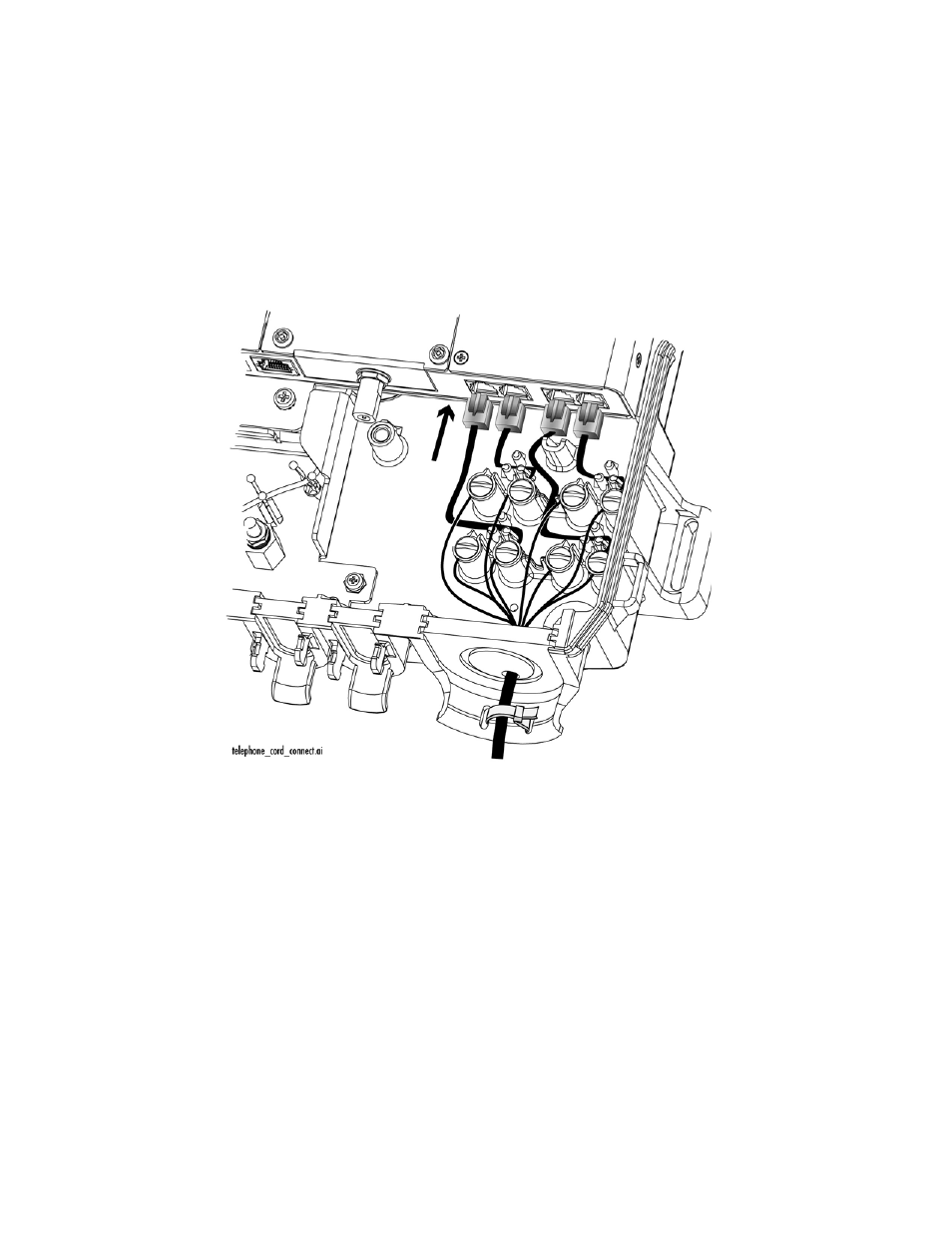

Figure 10. Connecting the Telephone Wires
3. Perform the next steps based on the following:
a. If you are connecting the LAN cable, go to the next subsection, “Connecting the LAN Cables”
on page 17
b. If you are not connecting the LAN cable continue to the next step below.
4. Cut a notch into the bottom of the grommet to accommodate the telephone cable.
5. Secure the telephone wire to the entrance with a UV-rated wire tie (not provided).
6. Trim the wire tie, reinsert the grommet, and seal the grommet with tape and silicone sealant.
