AT-iMG646MOD Installation Guide
28 Chapter 4: Installing the Gateway Indoors
Connecting the T1?E1 Cable (if applicable)
With the DS/T1 card, DS/E1 equipment can be connected over the network. (For connection to the DS/E1
network from the iMAP, a CES8 card would be used.) Refer to Figure 22.

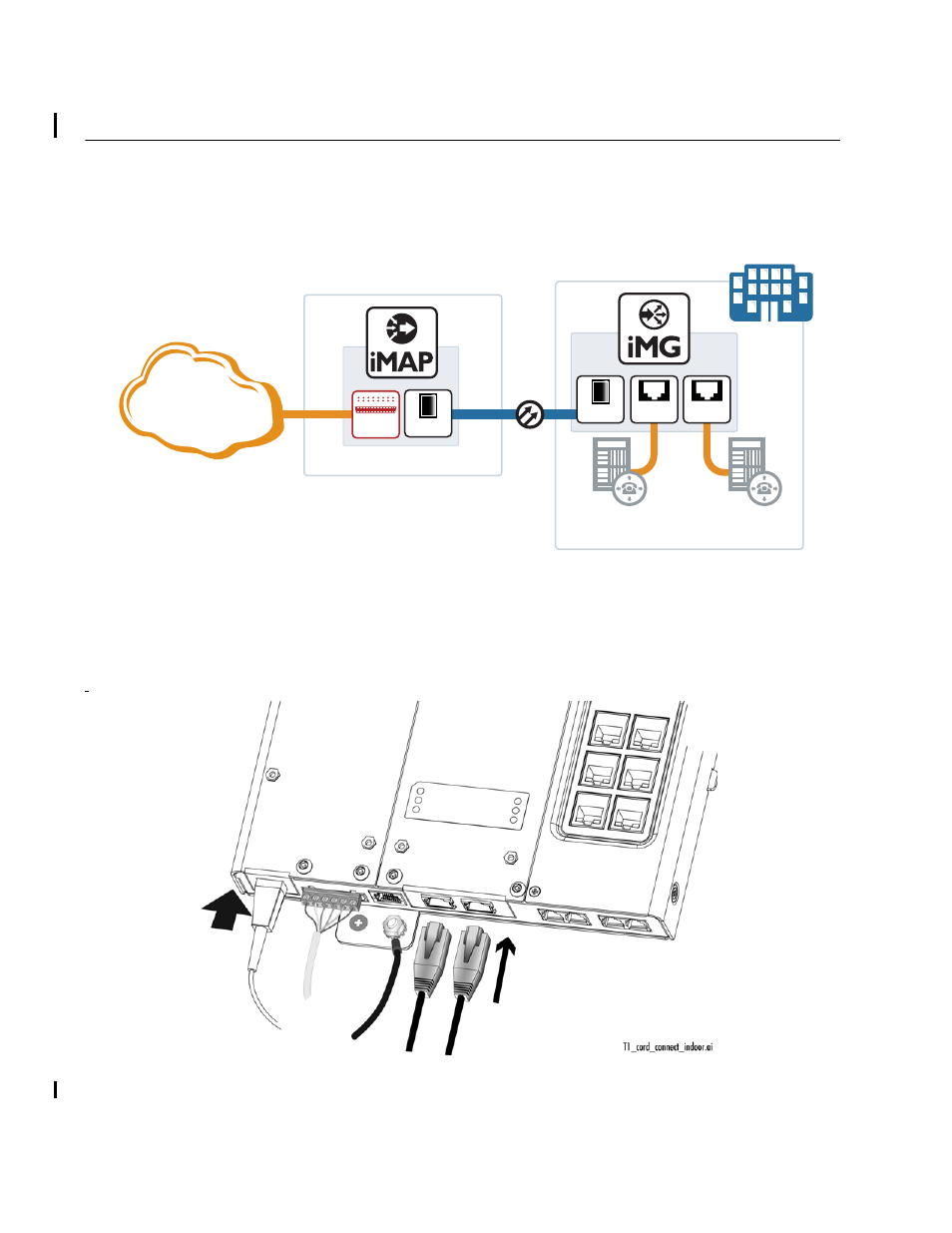

Figure 22. DS1/E1 Network Configuration
To connect the DS1/T1 cable, perform the following procedure:
1. Connect the RJ-45 cable(s) to the DS1/T1 card, as shown in Figure 23
.
Figure 23. Connecting the DS1/T1 cable(s)
iMAP configured with CES8
iMG-T1-functional
PBX or other
DS1/E1 equipment
PBX or other
DS1/E1 equipment
Central Office/POP
Customer
DS1/E1
supports:
SF, ESF, SLC96,
D4, AMI, B8ZS CES8
WAN Input
Fiber
(FX, EPON, etc)
T1 T1
