AT-iMG646MOD Installation Guide
22 Chapter 4: Installing the Gateway Indoors
5. Fasten the plywood to the wall, using the holes that you drilled in Step 4. Use screws that ensure the
plywood can withstand a downward force of 20 pounds. Refer to Figure 14.

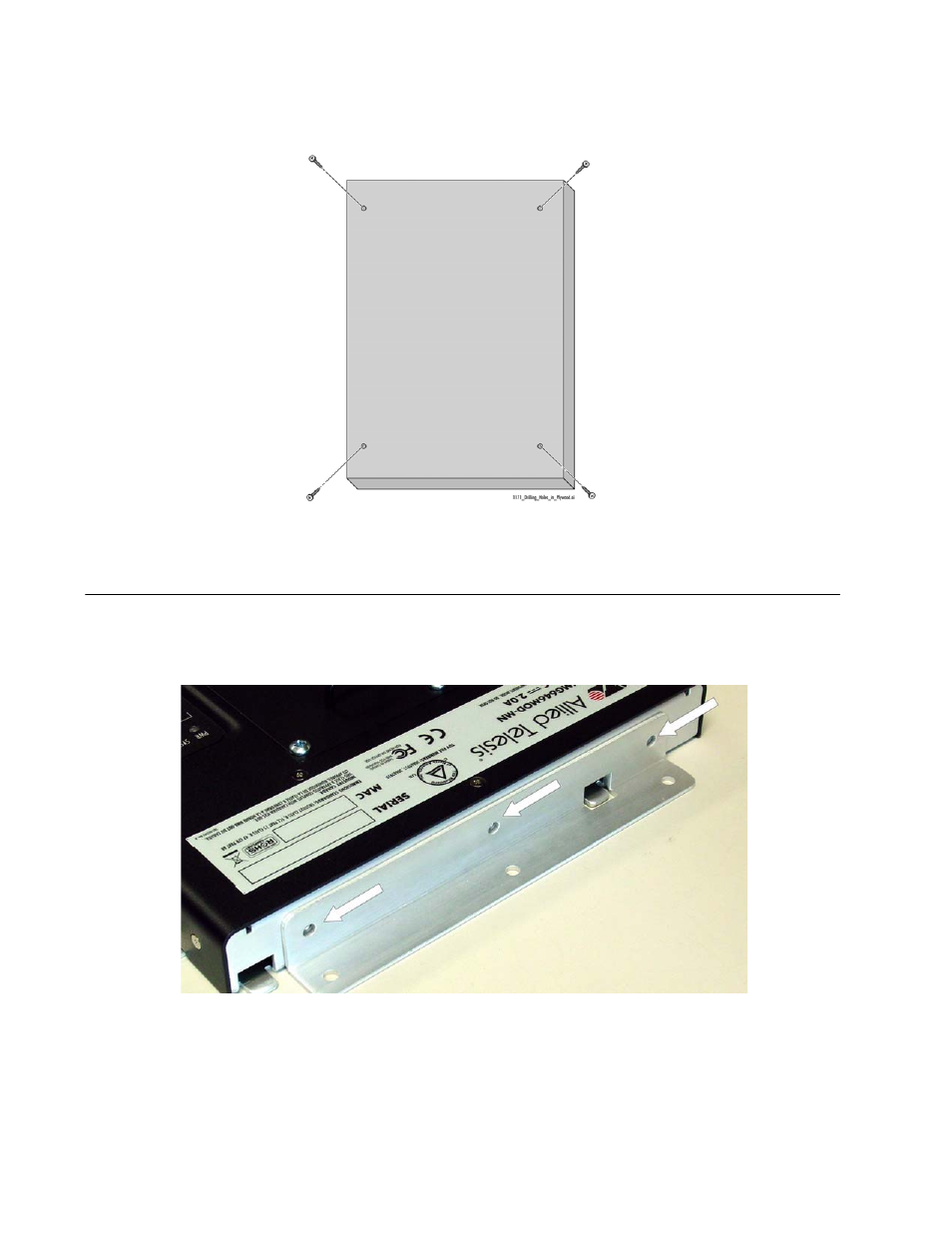

Figure 14. Securing the Plywood to the Wall
Attach Wall Mounting Bracket and Mark Mounting Holes
1. Take the wall mounting bracket and attach it to the top of the gateway using the three remaining
mounting screws, as shown in Figure 15
Figure 15. Attaching the Wall Mount Bracket to the iMG646MOD (Mounting Holes)
2. Place the gateway against the plywood mount and mark four holes, the three that are part of the wall
mount bracket, and the left hole in the grounding plate.
