10 Chapter 2: Electronics Overview
Interfaces to the Network (Outdoor Versus Indoor Installation)
The AT-iMG646MOD can be installed as part of an Outdoor or Indoor Installation.
ˆ In an Outdoor Installation, the AT-EN646MOD Enclosure has already been installed, and the AT-
iMG646MOD Electronics unit is installed so that it fits inside the Enclosure. Follow these steps:
1. Refer to the AT-EN646MOD Enclosure Installation Guide for steps on how to install the
Enclosure as well as figures that show the overall configuration.
2. Go to Chapter 3 of this Installation Guide for installation steps.
3. Go to Chapter 5 of this Installation Guide for turn-up and Troubleshooting.
ˆ In an Indoor Installation, the AT-EN646MOD Enclosure is not used; instead, the Electronics unit is
mounted on a plywood surface, and all connections are made directly to the Electronics Unit.
1. Go to Chapter 4 of this Installation Guide of installation steps
2. Go to Chapter 5 of this Installation Guide for turn-up and Troubleshooting.

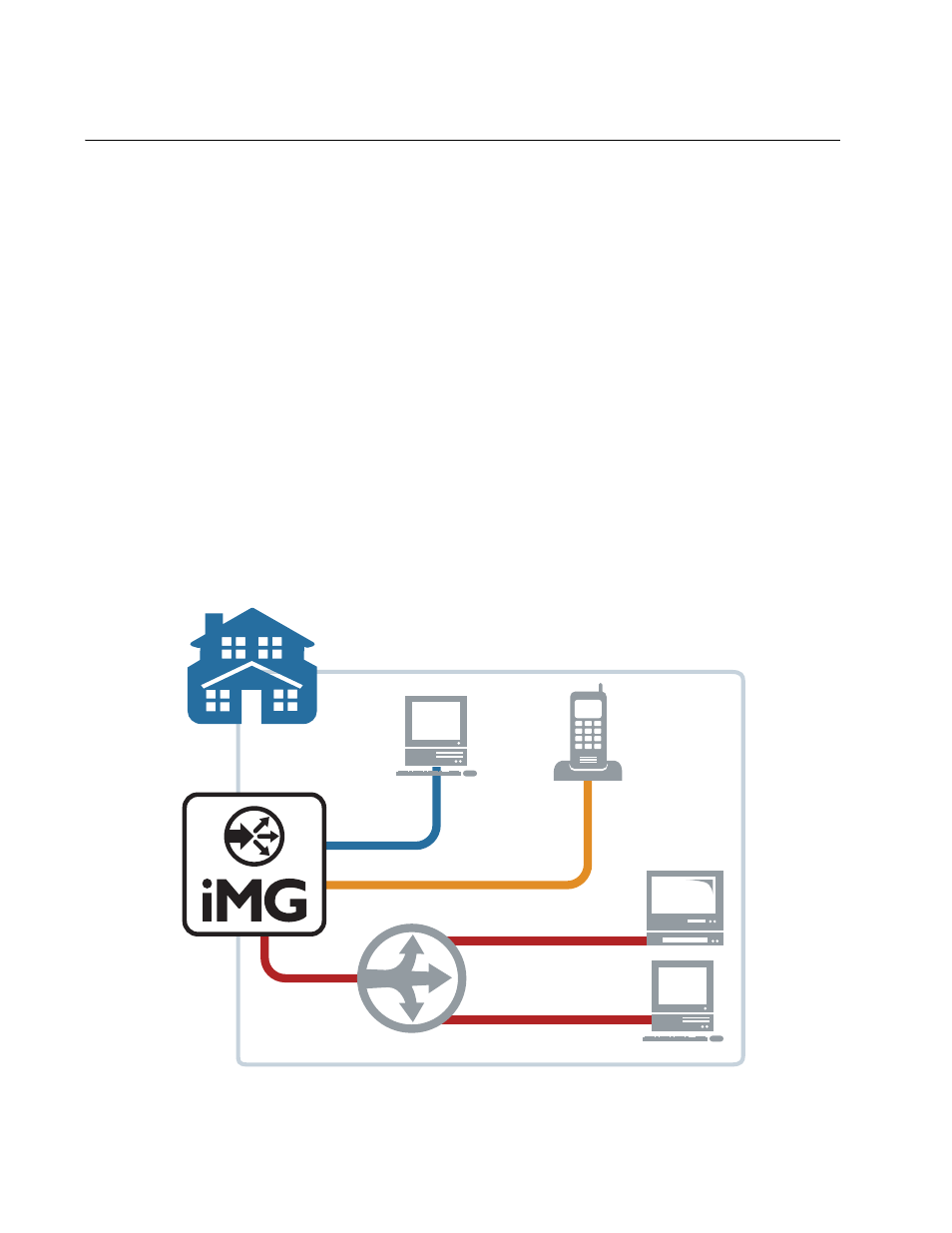

The following figure shows an indoor installation using the coax home network.
Figure 3. The AT-iMG646MOD installed without the Enclosure
ethernet
(up to 6 ports) RJ11
(up to 4 ports)
Coax (up to 8 ports)
splitter
network-physical-indoor.ai
