Connecting the ground wire – Allied Telesis AT-iMG6x6MOD Electronics Unit User Manual
Page 24
AT-iMG646MOD Installation Guide
24
Chapter 4: Installing the Gateway Indoors
Connecting the Ground Wire
To connect the ground wire, perform the following procedure:
1. Prepare an adequate length of 14AWG stranded grounding wire for the ground connection.
2. Strip 0.25 in.(0.7 cm) of insulation from the ground wire and crimp it into the ground wire ring lug.
3. Secure the ring lug on the stud with a washer and #8-32 Kepnut, as shown in Figure 17.

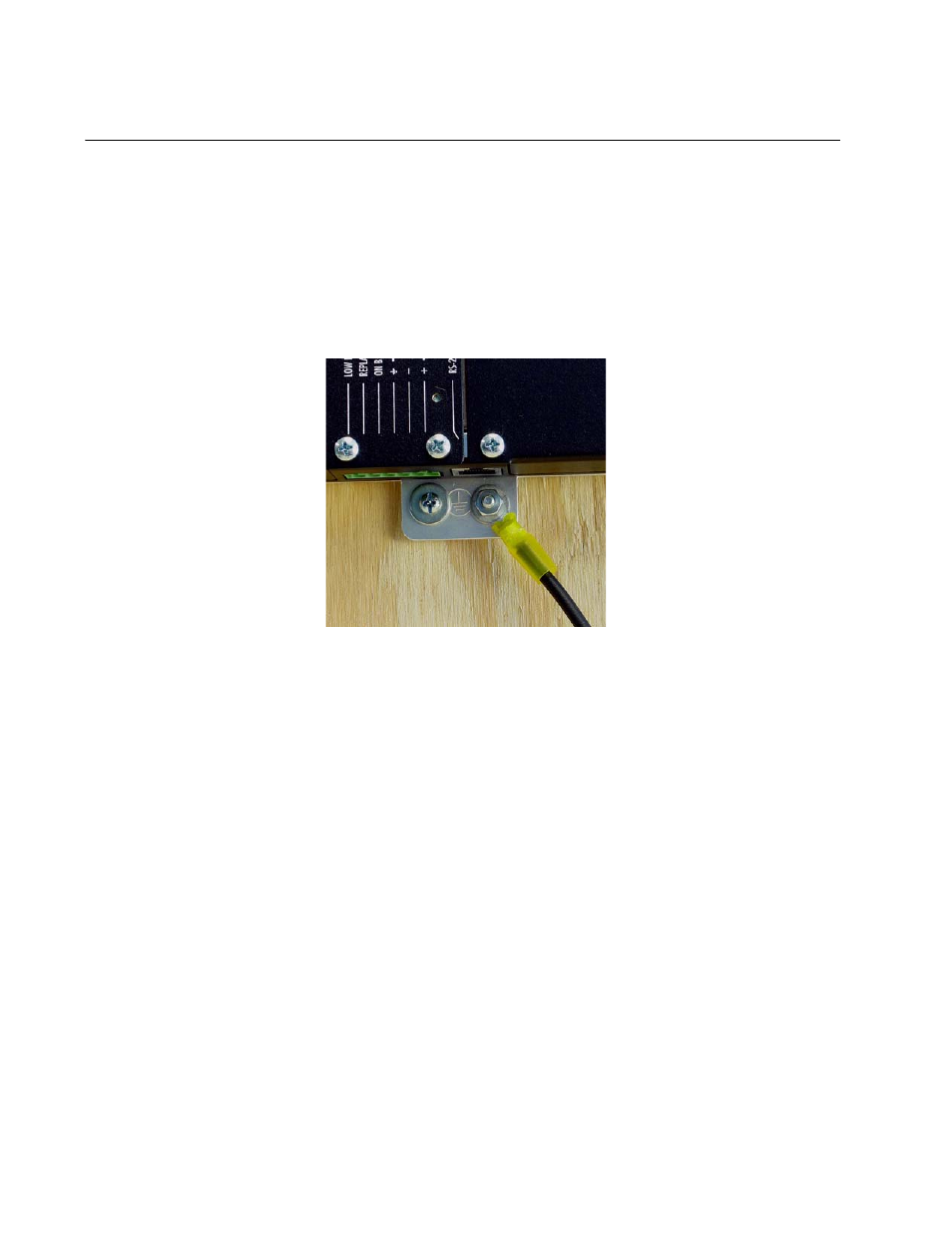

Figure 17. Securing the Ground Wire Lug
4. Trim and connect the other end of the ground wire to any ground point according to National Electrical
Codes.
