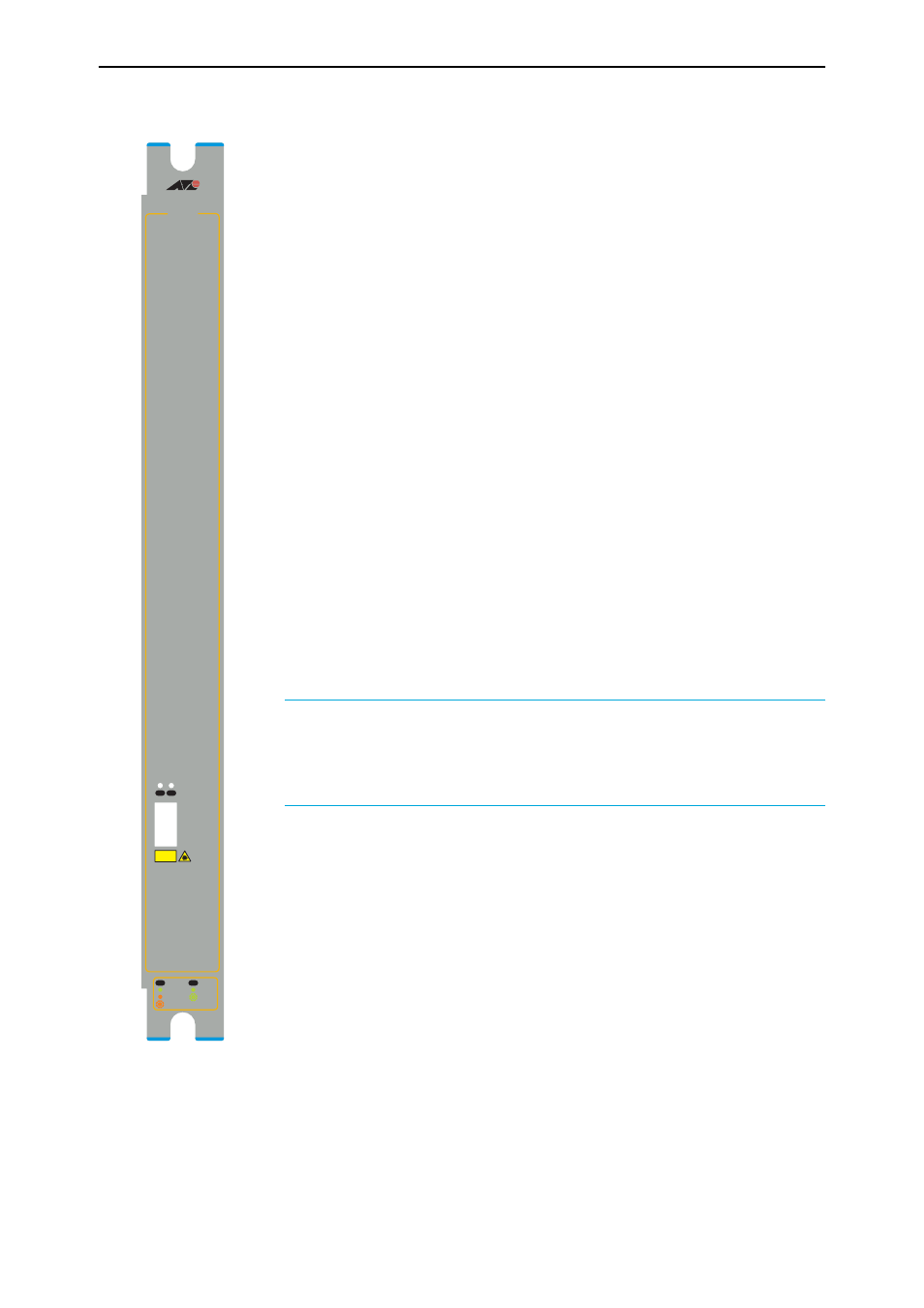

AT-SB4541 V2, 1-port 10GBASE-R Gigabit Ethernet
Line Card
Weight
• 2.2 kg
Ports
• One 10BASE-GE port
• Compatible with 10GE XFP-LR connectors
LEDs
• Indicates XFP connection and operational status
• Indicates link operational status and activity
• For a complete list of LEDs and their functions, see “LEDs and What
They Mean” on page 47
Switching
• Two ASIC switch chips operating in Layer 3 mode
• 40 k entry forwarding address database
• Support for protocol-based VLANS and MAC address learning
• 64 MByte RAMBUS packet buffer
• Either 33 MHz or 40 MHz, depending on the speed of the master card’s
PCI bus
Note: The suffix V2 indicates the card's silicon revision level. Certain enhanced
features, such as LACP, will only run on cards with a V2 revision level. You can also
display the silicon revision of a line card by executing the show switch instance
command (V2 revision level cards are displayed as K1). Refer to the Switching Chapter
of your SwitchBlade Software Reference for more information on using this command.
ACTIVITY
AT-SB4541 V2
DISABLED
ENABLED
NOT READY
LINK
L /A XFP
10GBASE-R
L /A XFP
CLASS 1 LASER PRODUCT DO NOT STARE INTO BEAM
AT-SB4541 V2
Line Card
