Configuring Device Security
Defining Access Control
Page 89
2. Click the Add ACL Button. The Add IPv6 Based ACL Page opens:

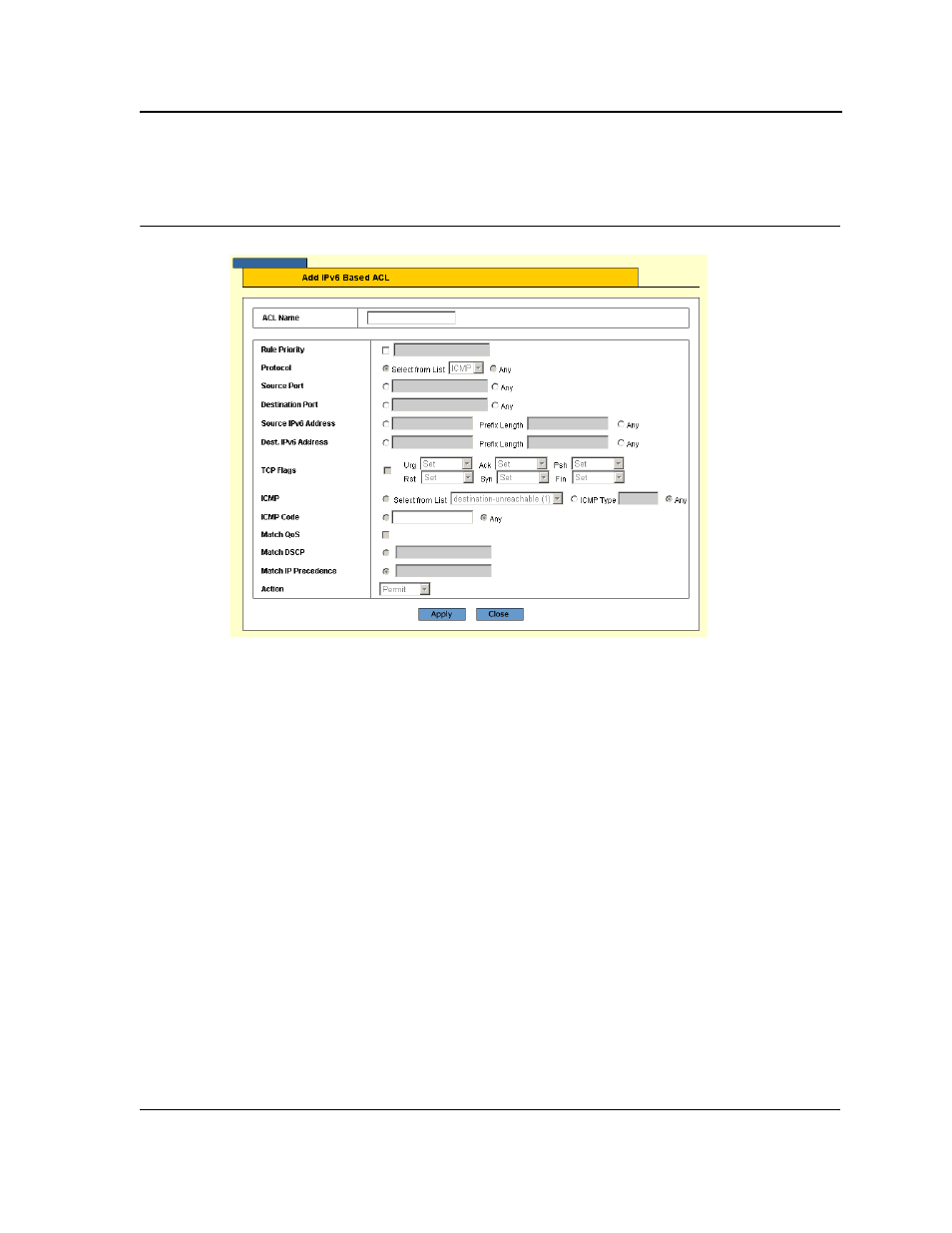

Figure 51: Add IPv6 Based ACL Page
In addition to the IPv6 Based ACL Page, the Add IPv6 Based ACL Page contains the following fields:
• Match QoS — Enables or disables the ACL classification to identify flows based on QoS values, such as
DSCP or IP Precedence. The possible field values are:
– Checked — Enables identification of flows based on QoS values. Selecting this option makes the Match
DSCP and Match IP Precedence fields available.
– Unchecked — Disables identification of flows based on QoS values.
3. Define the fields.
4. Click Apply. The IPv6-based ACL configuration is defined, and the device is updated.
5. Click Save Config on the menu to save the changes permanently.
