The MAC Address Page contains the following fields:
• View Static — Displays the static addresses assigned to the ports on the device.
• View Dynamic — Displays the dynamic addresses learned on the ports on the device.
• View MAC Addresses on Interface — Displays the port’s or trunk’s dynamic or static MAC addresses.
• View MAC Addresses for VLAN — Displays the static or dynamic addresses learned on the tagged and
untagged ports of a specific VLAN. You specify the VLAN by entering the VLAN ID. Only one VLAN at one
time can be defined.
• View MAC Address — Displays the number of the port on which a MAC address was assigned or learned.
To find out on which port a particular MAC address was learned, even if the device is part of a large network,
specify the MAC address. The system automatically locates the port that is connected to the device.
• Delete All Dynamic MAC Addresses — Clicking Delete removes all dynamic addresses from the MAC
Address Table.
2. Define the fields for the Unicast or Multicast MAC addresses to add.
3. Click Add. The Add MAC Address Page opens:

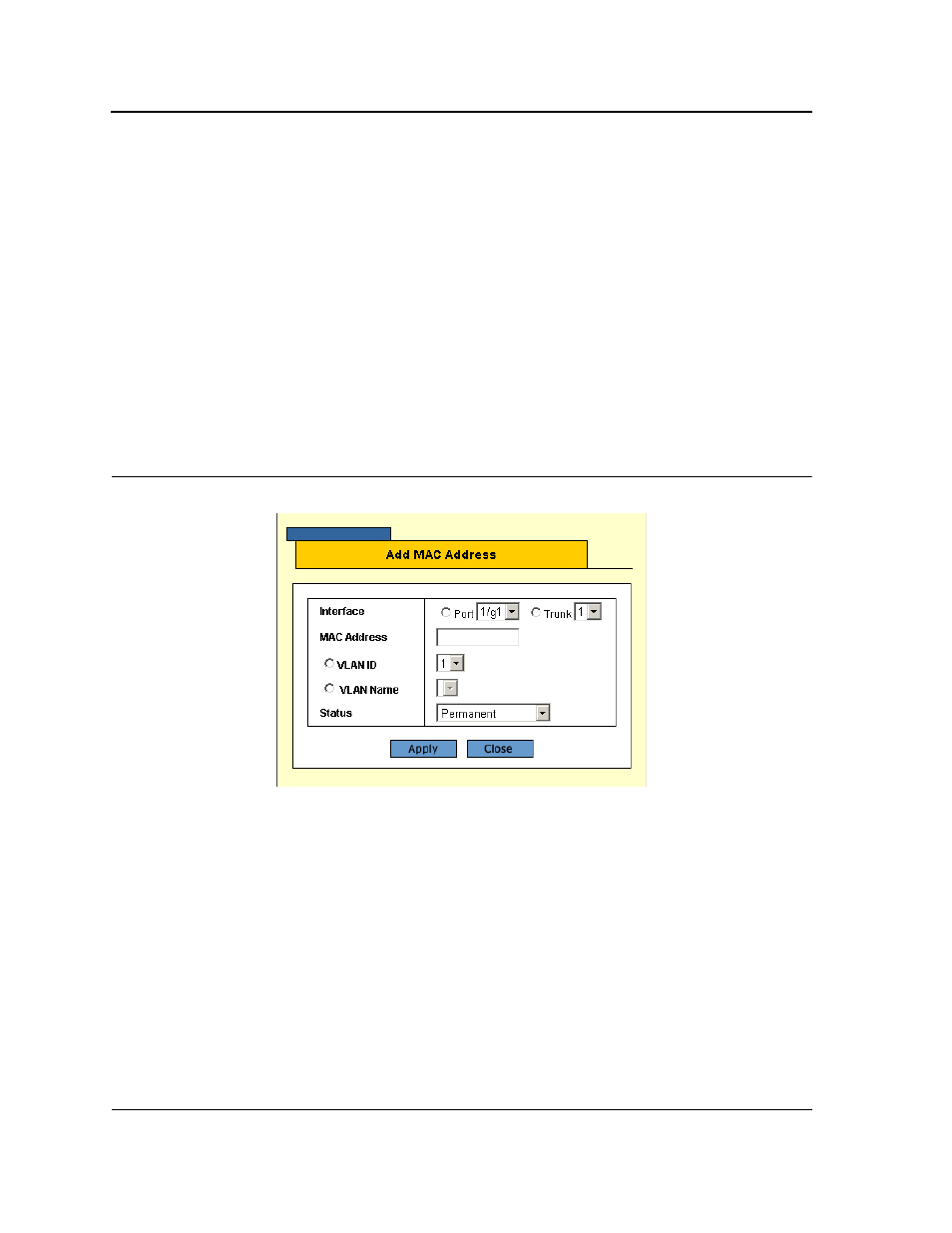

Figure 72: Add MAC Address Page
The Add MAC Address Page contains the following fields:
• Interface — Indicates the port or trunk on which the address was learned or assigned.
• MAC Address —Defines the static Unicast MAC address.
• VLAN ID — Displays the VLAN ID number to which the entry refers.
• VLAN Name — Displays the VLAN name to which the entry refers.
• Status — Indicates the current status of the address. The possible values are:
– Permanent — The MAC address is permanent.
– Delete on Reset — The MAC address is deleted when the device is reset.
– Delete on Timeout — The MAC address is deleted when a timeout occurs.
– Secure Options — The MAC Address is defined for locked ports.
