Configuring IPv6
Page 35
To view IPv6 Neighbor entries:
1.
Click System > IPv6 Neighbors. The IPv6 Neighbors Page opens.
2.
Select an interface.
3.
Click View. The View IPv6 Neighbors Page opens.

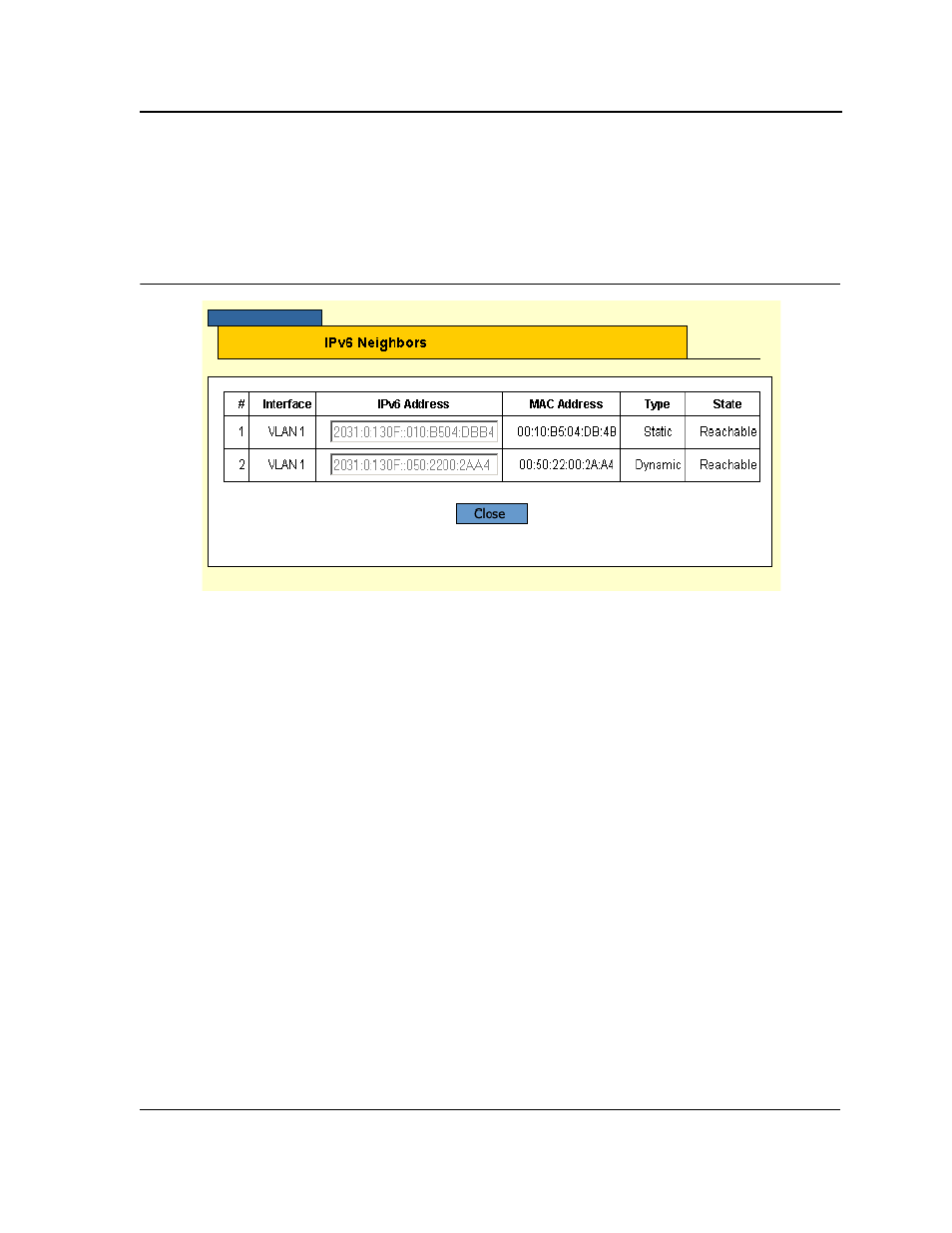

Figure 16: View IPv6 Neighbors Page
The View IPv6 Neighbors Page contains the following fields:
•
Interface — Displays the interface (VLAN) on which the IPv6 interface is configured.
•
IPv6 Address — Defines the currently configured neighbor IPv6 address. The address must be a valid IPv6
address, specified in hexadecimal using 16-bit values between colons.
•
MAC Address — Displays the MAC address mapped to the IPv6 address.
•
Type — Displays the type of the neighbor discovery cache information entry. The possible field values are:
–
Static — Shows static neighbor discovery cache entries.
–
Dynamic — Shows dynamic neighbor discovery cache entries.
•
State — Displays the IPv6 Neighbor status. The field possible values are:
–
Incomplete — Indicates address resolution is in process. The neighbor has not yet responded.
–
Reachable — Indicates the neighbor is known to be reachable.
–
Stale — Indicates the previously known neighbor is no longer reachable. No action is taken to verify its
reachability, until traffic need to be sent.
–
Delay — Indicates the previously known neighbor is no longer reachable. The Interface is in Delay state
for a predefined Delay Time that if no reachability confirmation is received, the state changes to Probe.
–
Probe — Indicates the neighbor is no longer known to be reachable, and Unicast Neighbor Solicitation
probes are being sent to verify reachability.
