Configuring LLDP
Page 189
2. Click Modify. The Modify LLDP MED Port Settings Page opens:

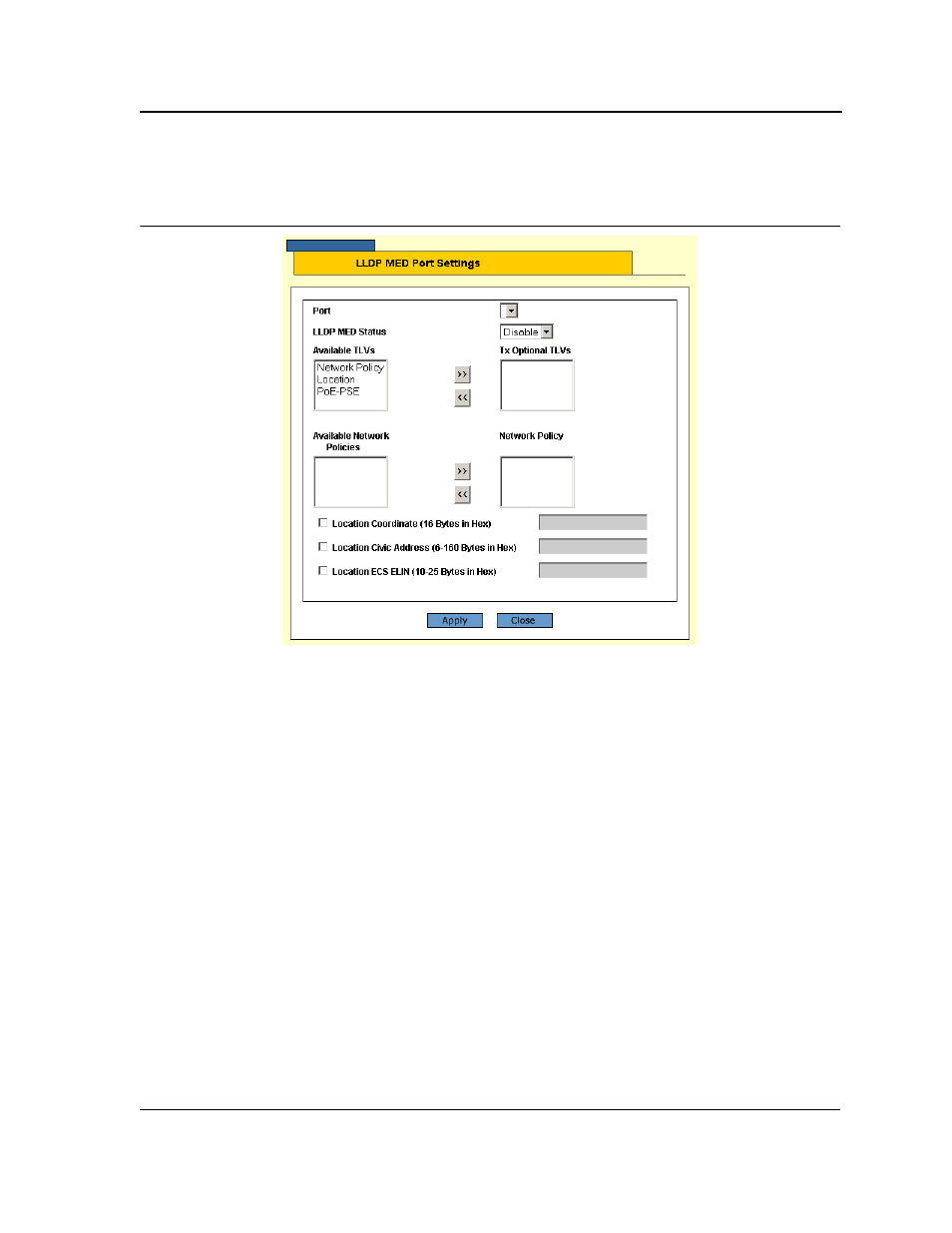

Figure 133:Modify LLDP MED Port Settings Page
In addition to the fields in the LLDP MED Port Settings Page, the Modify LLDP MED Port Settings Page contains
the following additional fields:
• Available TLVs/Tx Optional TLVs — Contains a list of available TLVs that can be advertised by the port.
The possible field values are:
– Network Policy — Advertises network policies attached to the port.
– Location — Advertises the port’s location.
– PoE-PSE — Advertises the port PoE information.
• Available Network Policies/Network Policy — Contains a list of network policies that can be assigned to a
port.
• Location Coordinate (16 Bytes in Hex) — Displays the device’s location map coordinates.
• Location Civic Address (6-160 Bytes in Hex) — Displays the device’s civic or street address location, for
example 414 23rd Ave E. The possible field value are 6 - 160 bytes.
• Location ECS ELIN (10-25 Bytes in Hex) — Displays the device’s ECS ELIN location. The field range is 10 -
25 bytes.
3. Select port in the Port field. The LLDP port settings are displayed in the fields.
4. Select Enable in the LLDP MED Status field.
5. Select the TLVs which are applied the port in the Available TLVs/Tx Optional TLVs list boxes. Move the
TLVs between list boxes using the arrows.
6. Define the port location in the Location Coordinate (16 Bytes in Hex), Location Civic Address (6-160
Bytes in Hex), Location ECS ELIN (10-25 Bytes in Hex) fields.
7. Click Apply. The LLDP MED port settings are saved, and the device is updated.
