Allied Telesis
AT-S95 Management Software Web Browser Interface User’s Guide
To enable PoE for the device:
1.

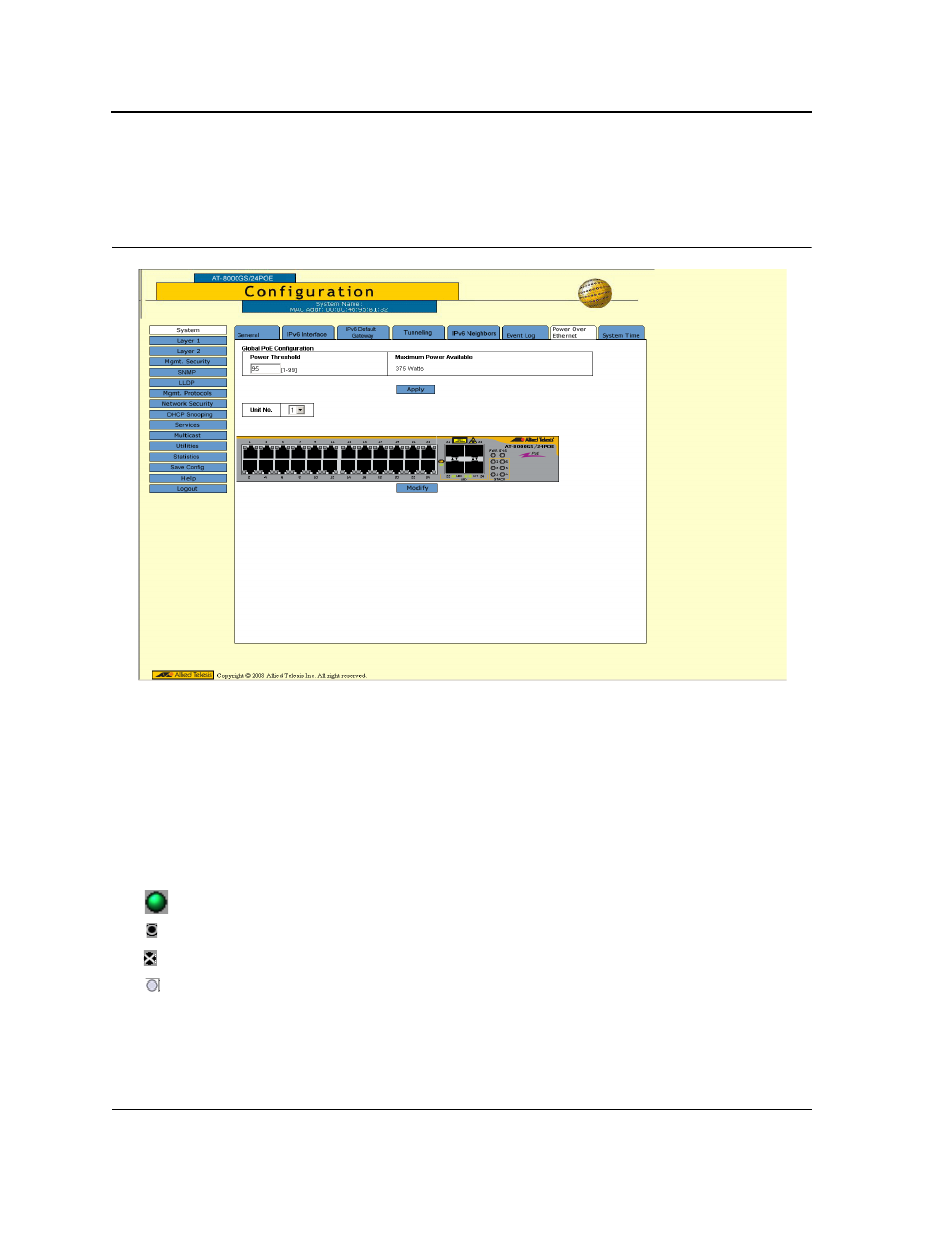

Click System > Power Over Ethernet. The Power Over Ethernet Page opens:
Figure 136:Power Over Ethernet Page
The Power Over Ethernet Page contains the following fields:
Global PoE Configuration
•
Power Threshold — Indicates the percentage of power consumed before an alarm is generated. The value
range is 1-99 percent; the default value is 95 percent.
If maximum power available is 375 W, and the power threshold is 95%, the threshold is exceeded when the
PoE devices require more than 356.25 W.
•
Maximum Power Available — Indicates the maximum power allocated to the device.
•
Unit Number — Indicates the stacking member for which the PoE information is displayed.
The Zoom View shows device ports and indicators of current PoE port status. The possible port settings are:
2.
Click the ports to enable. Clicking a port toggles it through the possible settings.
3.
Define the fields.
Port is active — Indicates that the port is linked.
Port is inactive — Indicates that the port is not linked.
Port is disabled — Indicates that the port is disabled.
Port is selected — Indicates that the port is selected for modification.
