Configuring Interfaces
Configuring VLANs
Page 119
Defining VLAN Properties
The VLAN Page provides information and global parameters for configuring and working with VLANs.
To configure a VLAN:
1.
Click Layer 2 > VLAN. The VLAN Page opens:

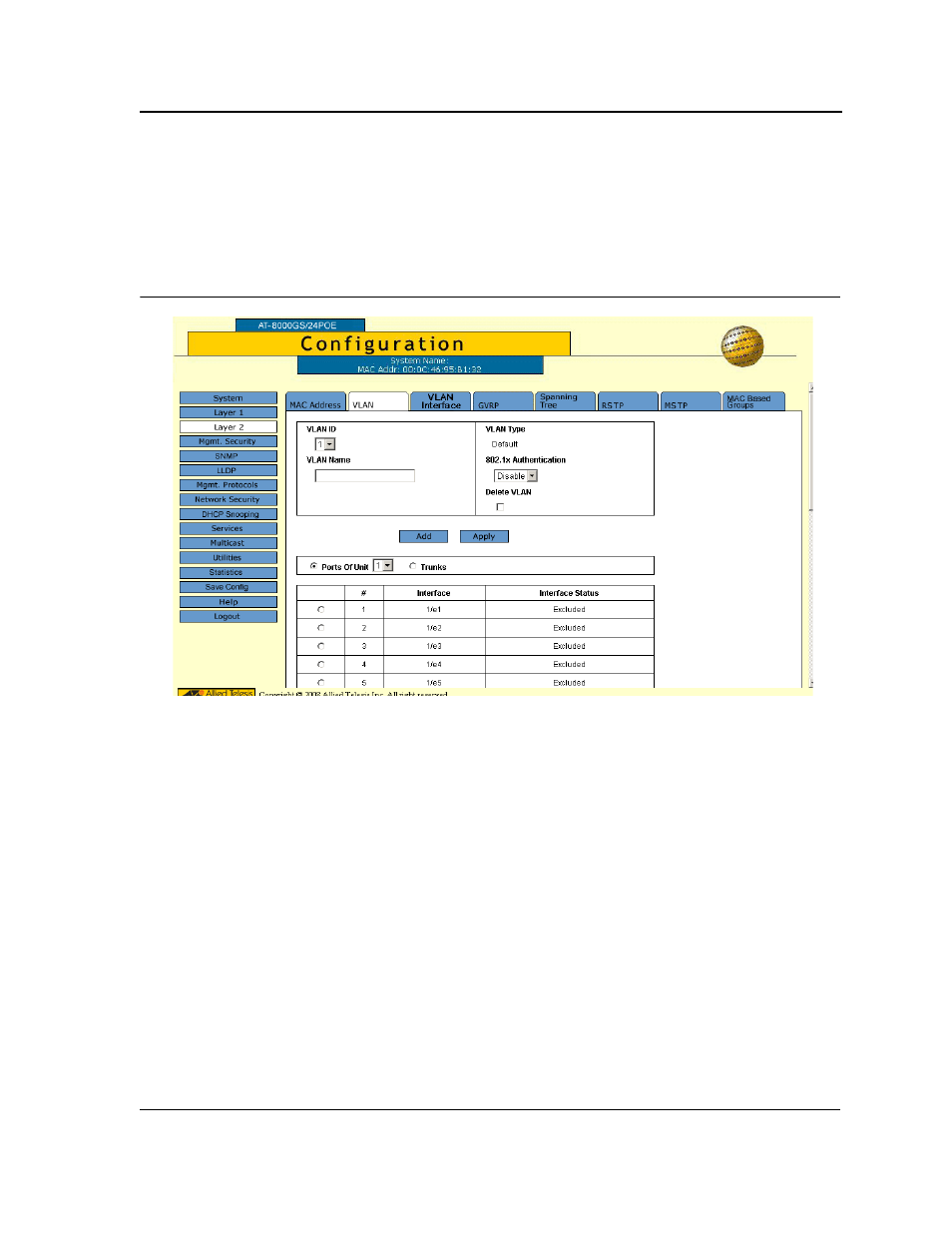

Figure 74: VLAN Page
The VLAN Page is divided into two sections. The first section contains the following fields:
•
VLAN ID — Defines the VLAN ID. Possible VLAN IDs are 1-4095, in which “1” is reserved for the default
VLAN, and “4095” is reserved as the “discard” VLAN.
•
VLAN Name — Displays the user-defined VLAN name.
•
VLAN Type — Displays the VLAN type. The possible field values are:
–
Dynamic — Indicates the VLAN was dynamically created through GARP.
–
Static — Indicates the VLAN is user-defined.
–
Default — Indicates the VLAN is the default VLAN.
•
802.1x Authentication — Enables the 802.1x authentication method on the VLAN. The possible field
values are:
–
Enable — Enables 802.1x authentication.
–
Disable — Disables 802.1x authentication. This is the default value.
•
Delete VLAN — Removes the specified VLAN. The possible field values are:
–
Checked — Deletes the specified VLAN.
–
Unchecked — Maintains the specified VLAN.
