AT-GS950/16 Web Interface User Guide
147
IGMP Snooping Router Port Modification
This procedure explains how to modify the IGMP snooping router port.
To modify the IGMP snooping router port, perform the following procedure:
1. From the main menu on the left side of the page, select the Bridge
folder.
The Bridge folder expands.
2. From the Bridge folder, select the IGMP Snooping folder.
3. From the IGMP Snooping folder, select IGMP Snooping Router
Port.
The IGMP Snooping Router Port Page is displayed. See Figure 51.

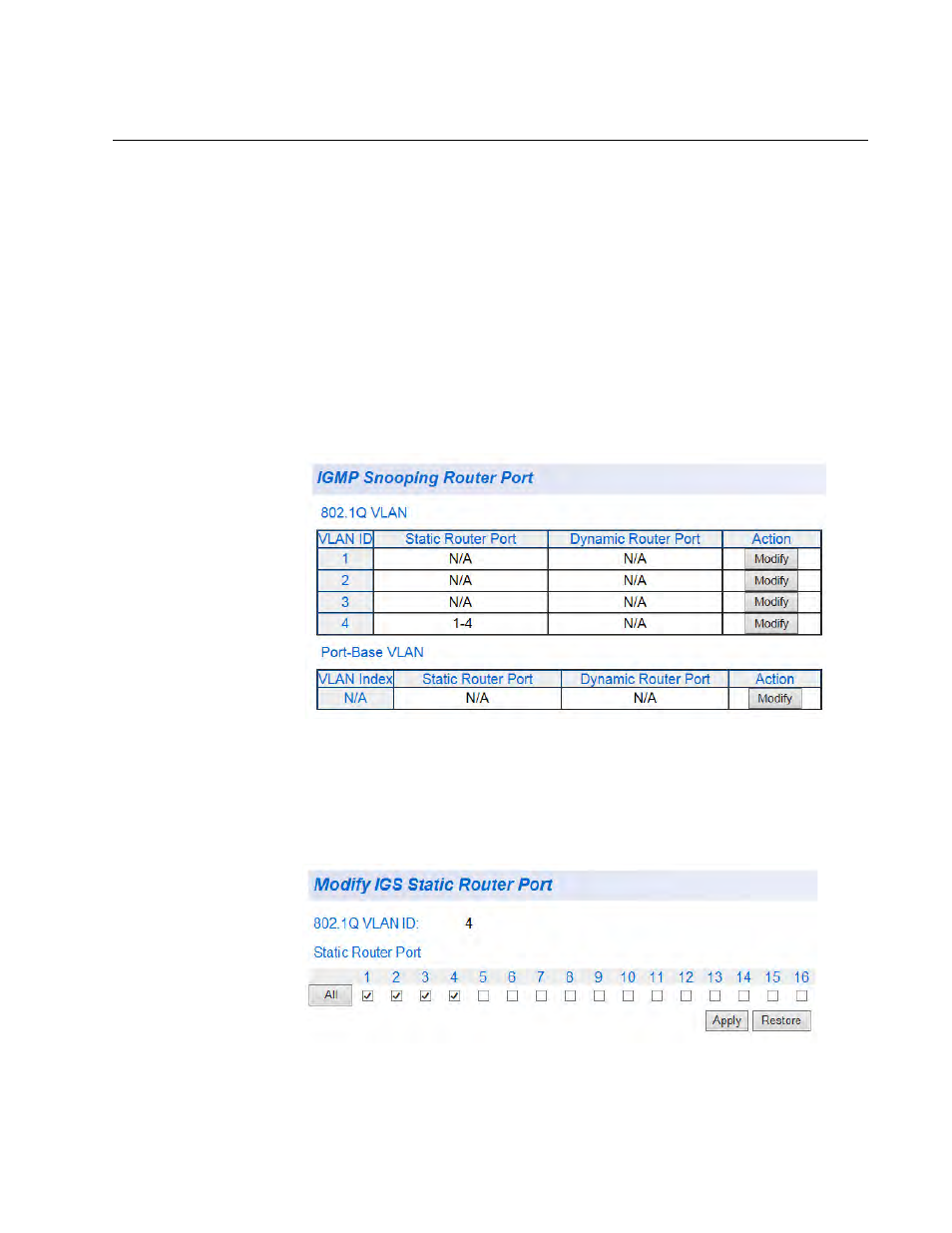

Figure 51. IGMP Snooping Router Port Page
4. Select Modify under the Action column for the entry you want to
modify.
The Modify IGS Static Router Port page is displayed. See Figure 52.
Figure 52. Modify IGS Static Router Port Page
