Allied Telesis NetExtreme II Adapters User Manual
Page 40
Chapter 2: Installing the Hardware
40

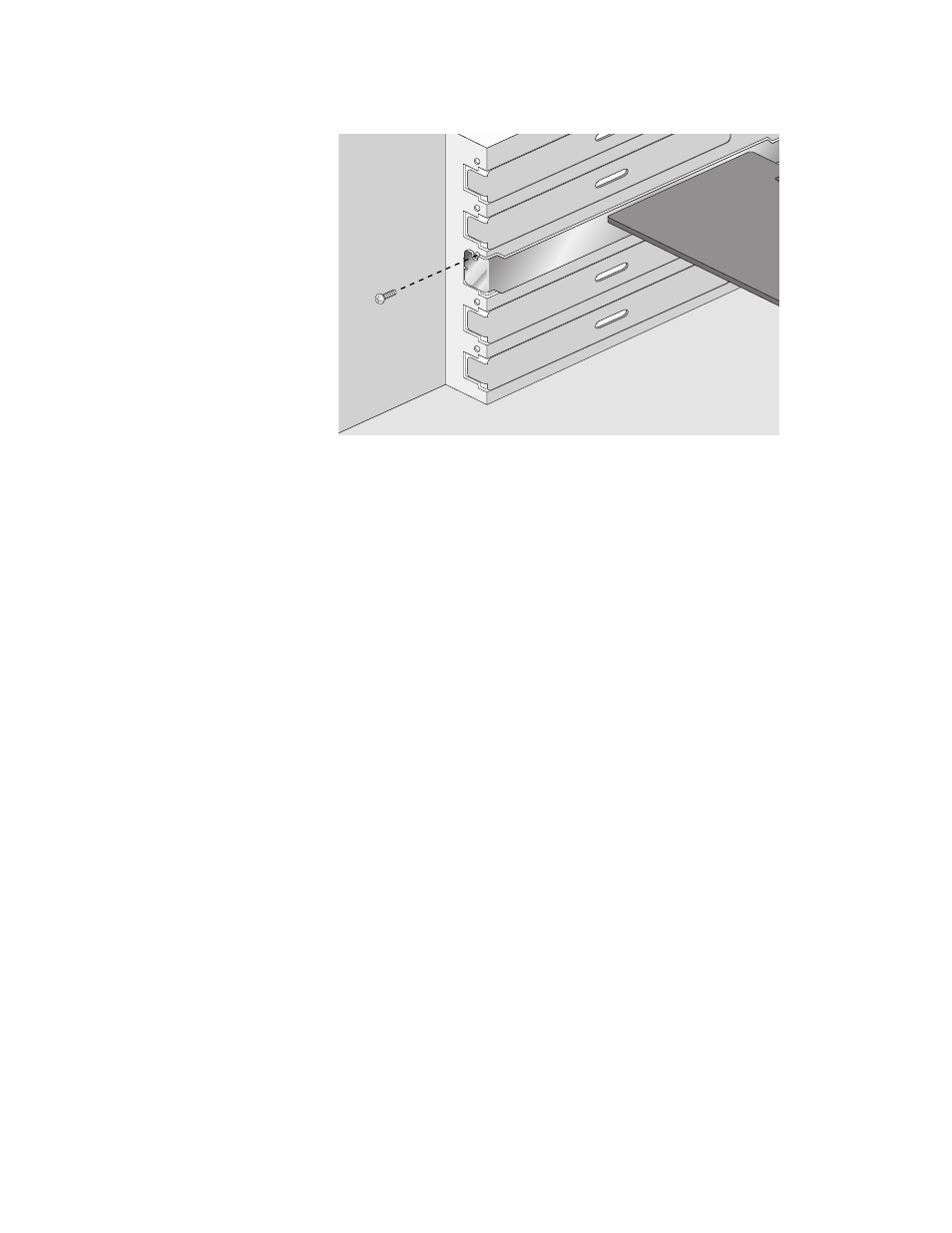

Figure 14. Securing the Adapter with a High-profile Bracket
7. Replace the system’s cover and secure it with the screws removed in
8. Disconnect any personal antistatic devices.
9. If you are installing the AT-VNC10S Adapter, go to “Installing SFP+
Transceivers in the AT-VNC10S Adapter” on page 41.
10. For all other adapters, connect the network cables to the ports on the
adapter.
11. Power the system on.
