At-vnc10s adapter physical description, Figure 7. at-vnc10s adapter – Allied Telesis NetExtreme II Adapters User Manual
Page 24
Chapter 1: Introducing the AT-2973SX, AT-2973T, AT-2973T/4, and AT-VNC10S Adapters
24

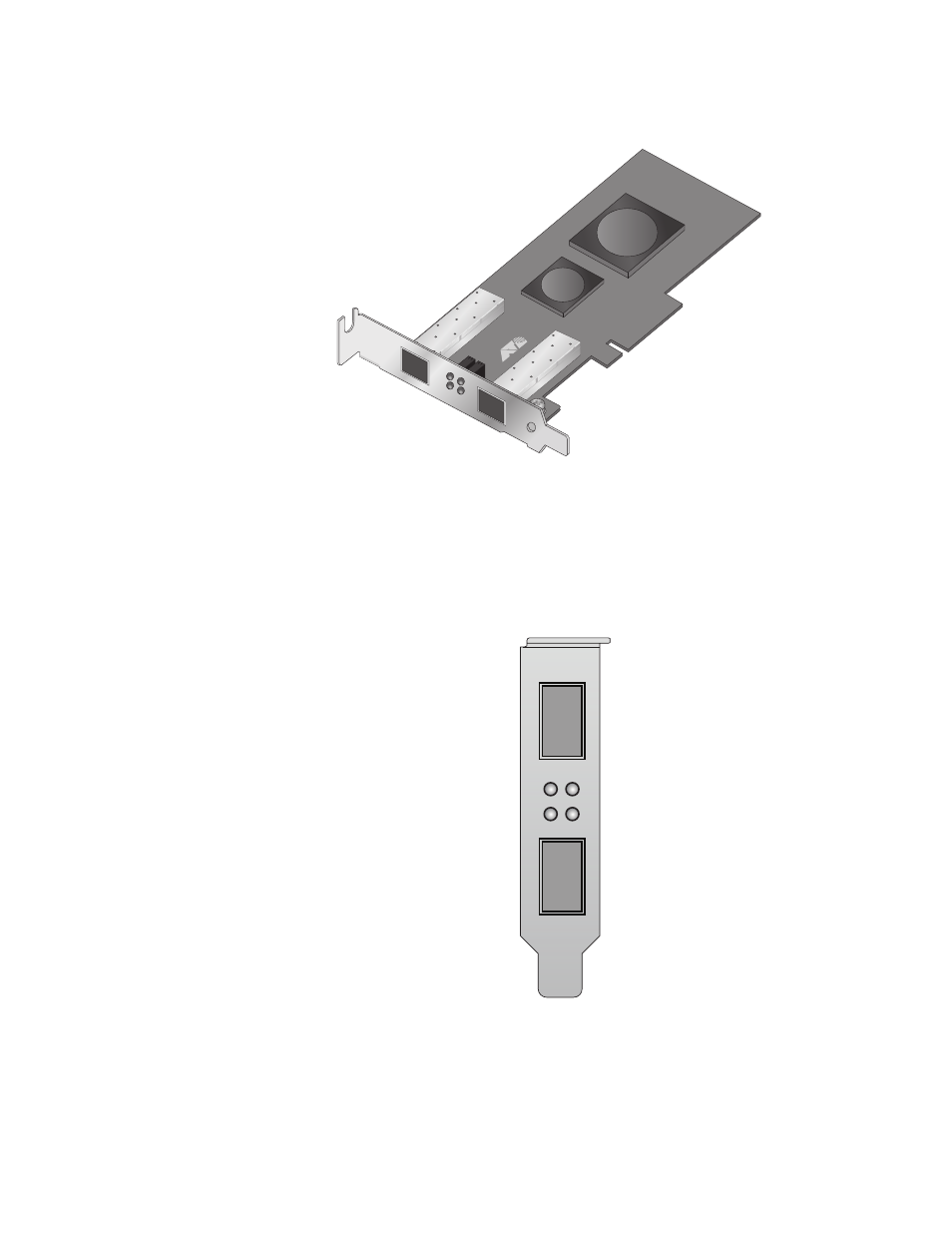

Figure 7. AT-VNC10S Adapter
AT-VNC10S Adapter Physical Description
The faceplate on the AT-VNC10S adapter, shown in Figure 8, has two
slots for SFP+ transceivers and four LEDs.
Figure 8. AT-VNC10S Faceplate
100
ACT
LNK
AT
I
ACT
LNK
ATI
