Allied Telesis NetExtreme II Adapters User Manual
Page 38
Chapter 2: Installing the Hardware
38

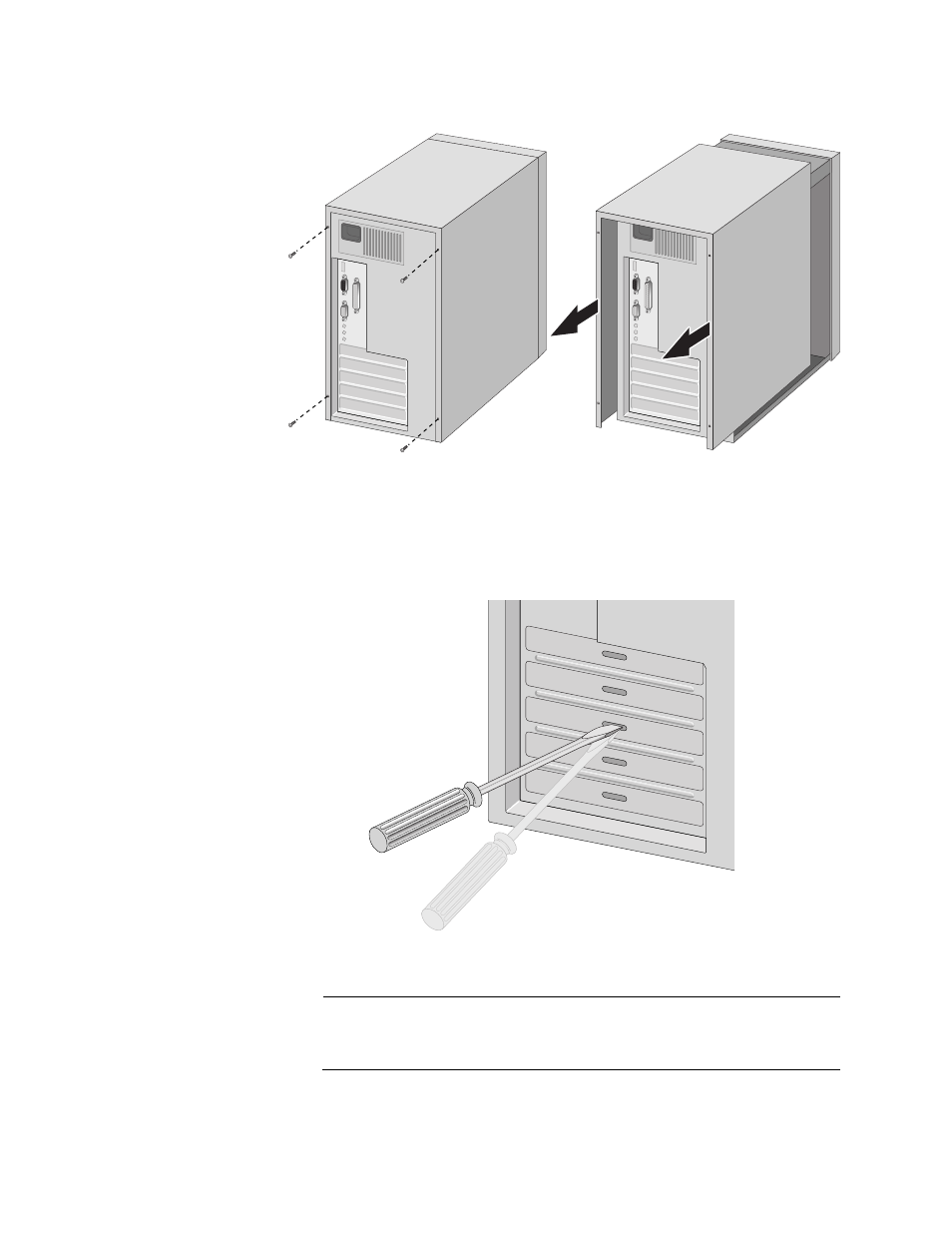

Figure 11. Removing the PC Cover
3. Select an empty, non-shared PCIe slot and remove the faceplate.
Keep the faceplate in a safe place. You may need it for future use. See
Figure 12.
Figure 12. Removing the Faceplate From PCIe Slot
Note
If you cannot locate or do not know how to find an appropriate PCIe
slot, refer to the documentation that came with your system.
