Multiple vlans assigned to an msti – Allied Telesis AT-GS950/48 User Manual
Page 345
AT-GS950/48 Web Interface User Guide
345

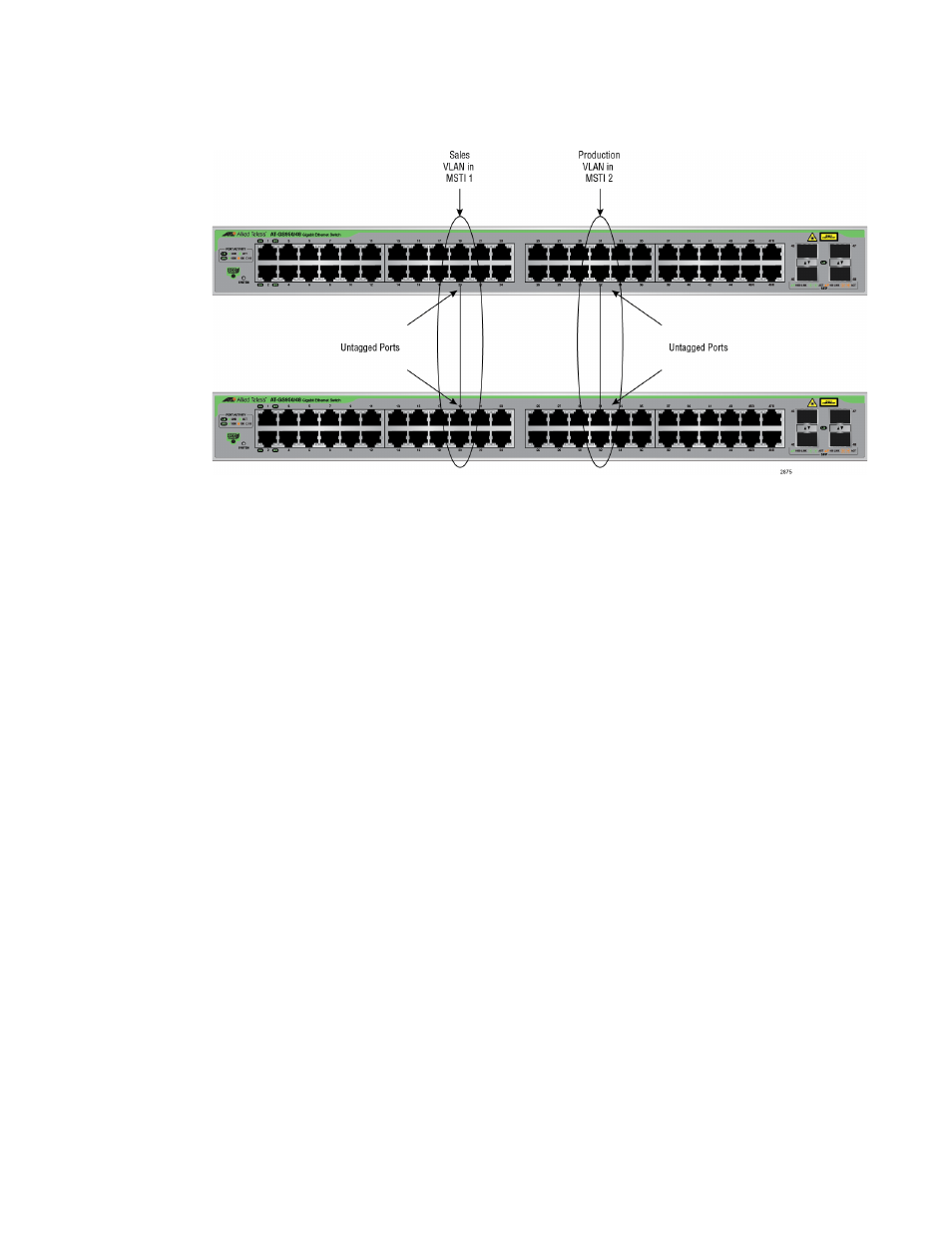

Figure 139. MSTP Example of Two Spanning Tree Instances
Multiple VLANs
Assigned to an
MSTI
A MSTI can contain more than one VLAN. This is illustrated in Figure 140 on
page 346 where there are two AT-GS950/48 switches with four VLANs. There
are two MSTIs, each containing two VLANs. MSTI 1 contains the Sales and
Presales VLANs and MSTI 2 contains the Design and Engineering VLANs.
