AT-GS950/48 Web Interface User Guide
163
7. Click Apply.
8. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modify a Port-
Based VLAN
To modify the name or port assignments of a port-based VLAN, perform
the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Port-Based VLAN.
An example VLAN (Index 2, Sales VLAN) is shown in the table at the
bottom of AT-GS950/48 Port-Based VLAN page. See Figure 55 for a
partial view of this page.

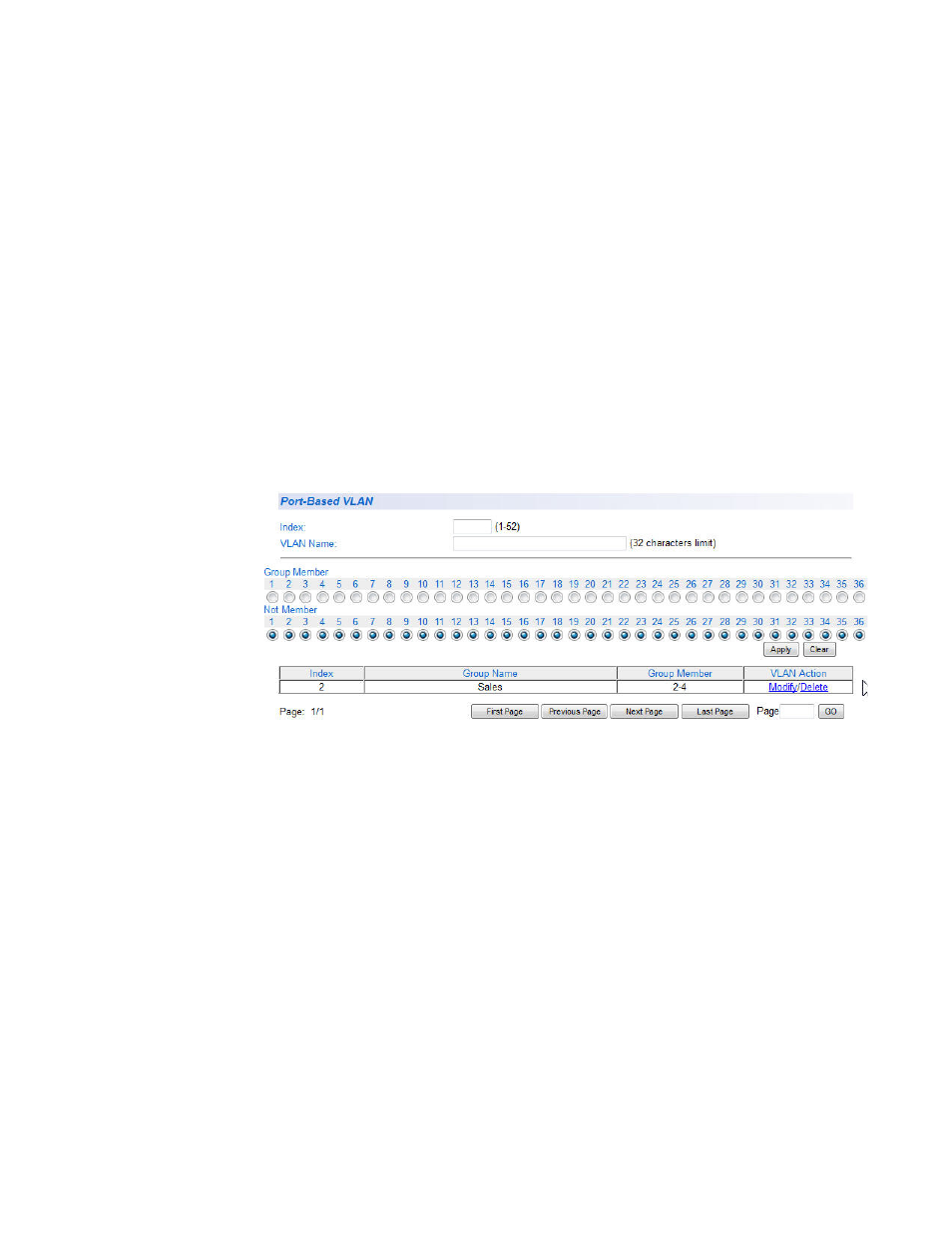

Figure 55. Example of AT-GS950/48 Port Based VLAN Page
4. In the VLAN Action column, click Modify next to the VLAN that you
want to change.
5. Delete a Port-Based VLAN
To delete a port-based VLAN, perform the following procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select VLAN.
The VLAN folder expands.
3. From the VLAN folder, select Port-Based VLAN.
The Port-Based VLAN Page is shown in Figure 54 on page 162.
